Anyone have an exploded view/diagram of a GU rear axle they can post....please
My rear diff-lock is occasionally releasing with a bang since I got and I suspect damage similar to the pics posted in this post:
http://www.patrol4x4.co.za/viewtopic.ph ... 777#p41377
After sorting the gears out I will give the vacuum system some attention as well, as that might be the real reason why the damage happened in the first place.
Peter Connan
Moderator
Posts: 6136 Joined: 10 Sep 2010 07:21Full Name: Peter ConnanNickname: PietHome Town: Kempton ParkCurrent 4x4: 1996 Patrol 4.5SGLHome Language: AfrikaansLocation: Kempton ParkHas thanked: 1125 times Been thanked: 1036 times
Post
by Peter Connan 22 Jul 2013 06:44
Zantus send me a mail at petercatmitechdotcodotza?
Mag ons ons kenniskry met lekkerkry aanhoukry.
David
Patrolman
Posts: 723 Joined: 17 Dec 2009 12:42Full Name: David PrinslooNickname: DavidHome Town: StellenboschCurrent 4x4: 2006 Patrol 4.8 GRXHome Language: AfrikaansLocation: StellenboschHas thanked: 2 times Been thanked: 49 times
Post
by David 22 Jul 2013 09:02

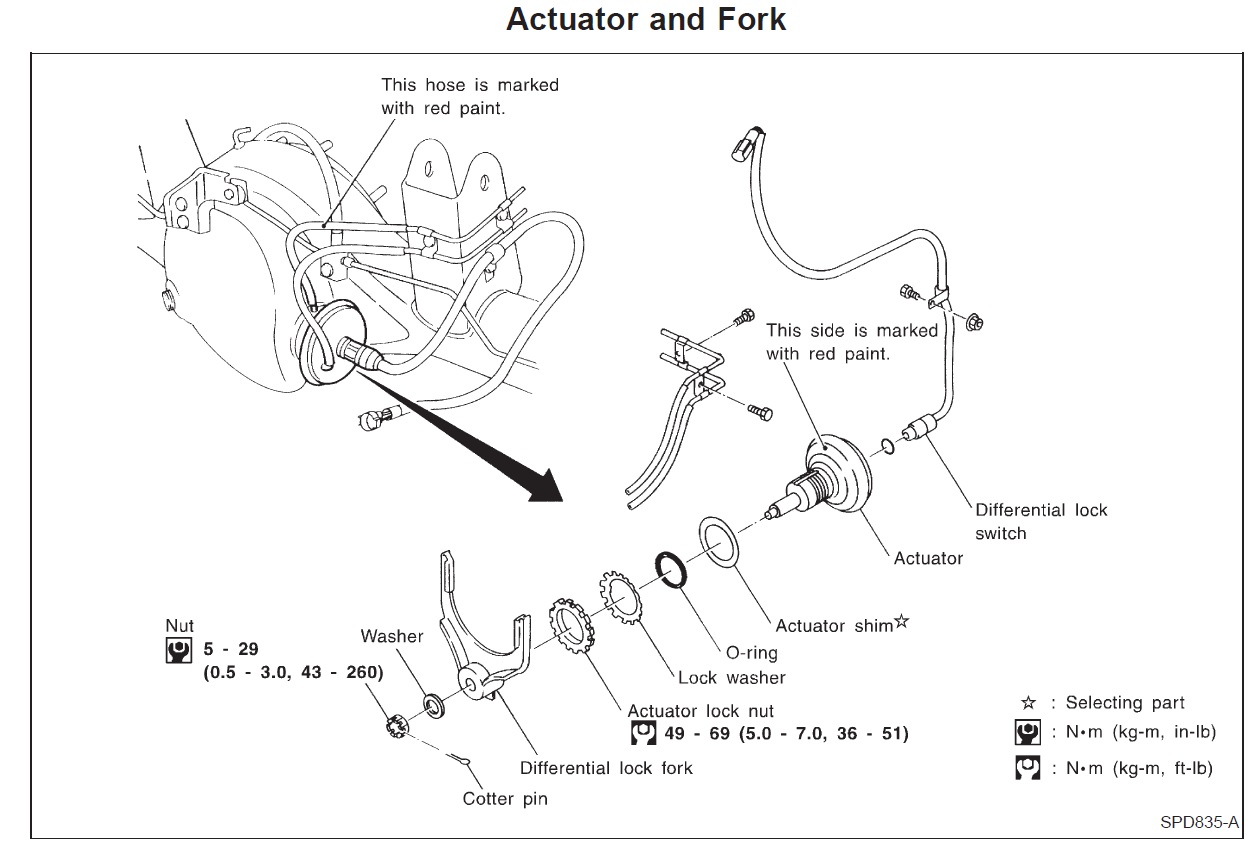

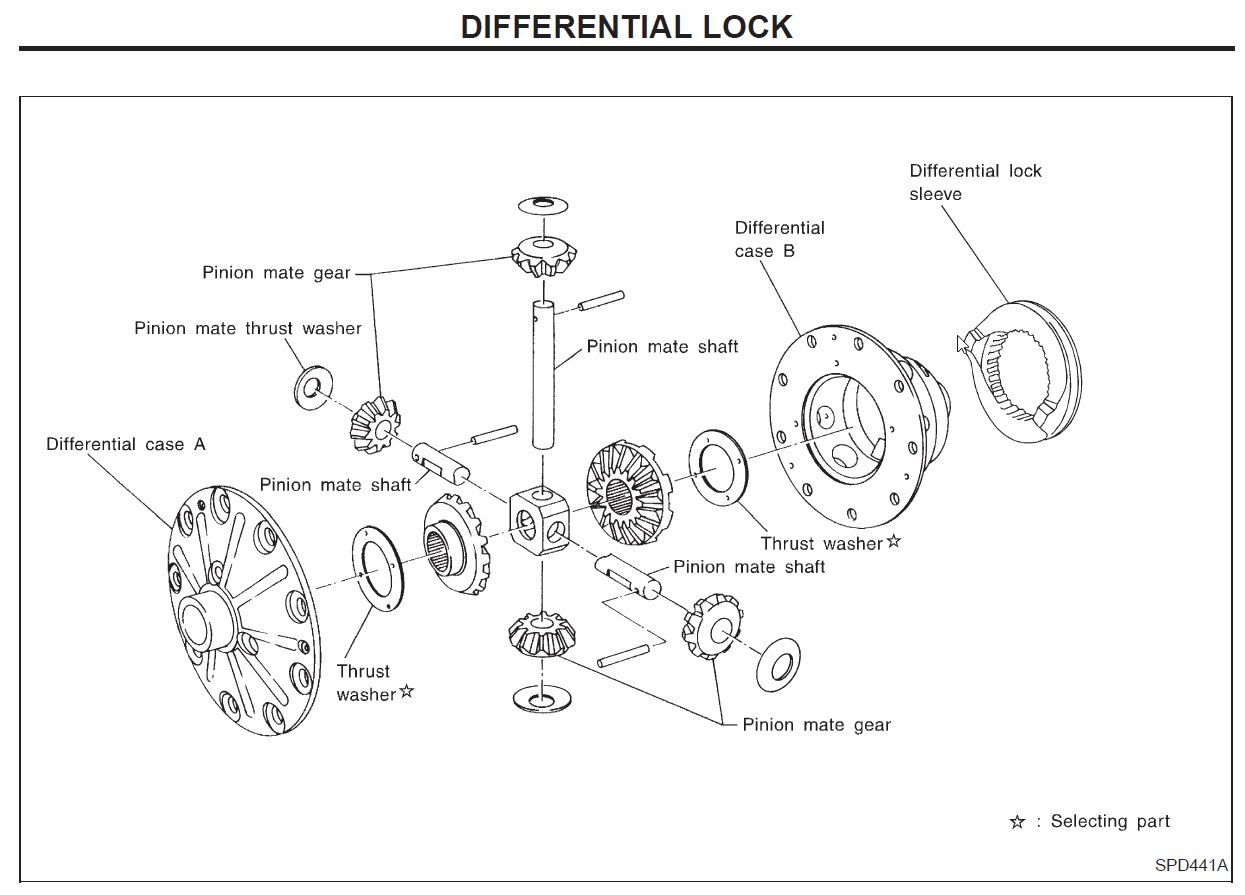

Hope this helps...
