Filter,oil cooler housing

[Andre Steyn]

It never rains it pours, found a slight oil leak on my oil pressure sender, upon looseninig I found the housing to be cracked right through to the thread of the big heaxagonal nut. What now, how much are these housings and I take the coolant needs to come out to remove and replace the housing. Any advice gents need it urgently? Explains the oil consumption since rebuild.

[Peter Connan]

Can somebody send me a picture of this housing?

[ricster]

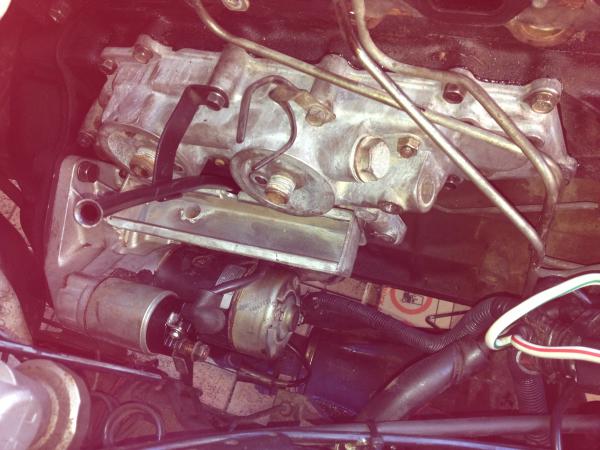

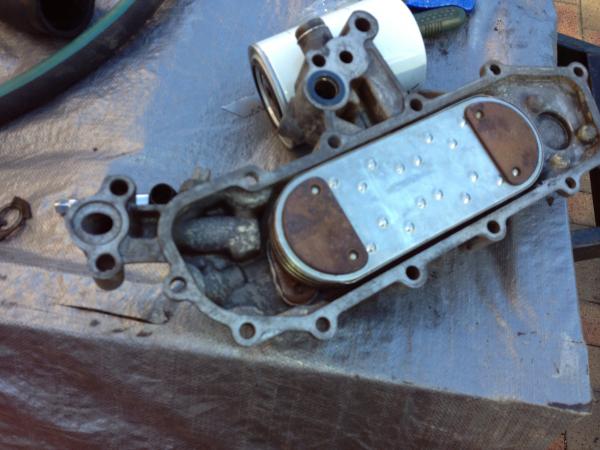

Are you talking about this??

oil cooler.jpg (46.14 KiB) Viewed 2186 times

oil cooler1.jpg (41.08 KiB) Viewed 2186 times

borrowed the pics from the Patrol.com site for reference

[Andre Steyn]

Jip thats the one R 7700 and no stock anywhere with 15 working day back order what a huge mess!!!

[ricster]

.... what??.....

Where is the crack exactly ....and how can that even happen... ... never heard of this

[ricster]

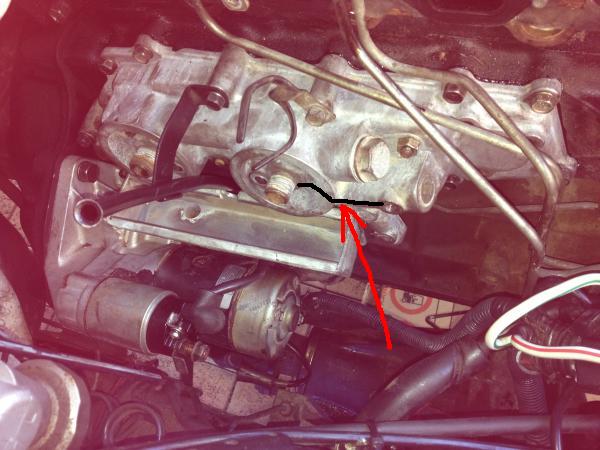

Is the crack here.....(more or less)

oil cooler crack.JPG (46.72 KiB) Viewed 2182 times

I think that that can be welded professionally, Peter Connan I think would be better qualified to answer that, but I can't think that the pressures on that would be too much of an issue

[Andre Steyn]

Its from where the pressure sensor screw in towards the big nut forward where the release vavlve sits. Tried the welding route none of the pros want to touch it they all say the material is already to thin due to the hole for the sensor and the valve. It looks like with the rebuild the sensor was overtightened and popped the casting. Just as I started to think all is well and sorted.

[tour de frans]

Ek het vir jou een.

[Andre Steyn]

Aitsa daarsy, frans tot die redding. Ok hoe gemaak om hom hier by my te kry? En prys?

[tour de frans]

Wa bly jy? Pm of bel my.
