It looks like a pice of flat bar with a square in the centre to fit onto the socket spanner, with 2 bolts sticking through which fit into the holes in the bearing nut...
Once you have the tool, it looks like a pretty straightforwad job...
Thanks
Front wheel brearing spanner
-
Unkredible
- Senior Member
- Posts: 135
- Joined: 22 Oct 2009 14:41
- Full Name: Bruce Williamson
- Nickname: Unkredible
- Home Town: Rivonia
- Current 4x4: '05 Patrol 3.0GL converted to TD42i
- Home Language: E
- Has thanked: 27 times
- Been thanked: 24 times
Front wheel brearing spanner
I have some play in my front right wheel - bearing needs tightening. I see there is a special tool needed to tighten the bearing. Does anyone know where I get such a thing?
It looks like a pice of flat bar with a square in the centre to fit onto the socket spanner, with 2 bolts sticking through which fit into the holes in the bearing nut...
Once you have the tool, it looks like a pretty straightforwad job...
Thanks
It looks like a pice of flat bar with a square in the centre to fit onto the socket spanner, with 2 bolts sticking through which fit into the holes in the bearing nut...
Once you have the tool, it looks like a pretty straightforwad job...
Thanks
2005 Patrol GL ex 3.0d now TD42
285x75x16 MT
40l S/S Nat Luna Beer Fridge, with Draught tap...
Bigger Intercooler, EGT, Boost Gauge
DC-DC Charger
285x75x16 MT
40l S/S Nat Luna Beer Fridge, with Draught tap...
Bigger Intercooler, EGT, Boost Gauge
DC-DC Charger
-
AndriesS
- Patrolman
- Posts: 611
- Joined: 01 Feb 2010 07:42
- Full Name: Andries
- Nickname: None
- Home Town: Pretoorsdorp
- Current 4x4: 4.8 GL with hairdryer.
- Home Language: Afrikaans
- Has thanked: 28 times
- Been thanked: 38 times
Re: Front wheel brearing spanner
This might be slightly backyard mechanic style for some , but I used a long nose pliers, stuck the points into the holes and tightened.
-
Peter Connan
- Moderator
- Posts: 6137
- Joined: 10 Sep 2010 07:21
- Full Name: Peter Connan
- Nickname: Piet
- Home Town: Kempton Park
- Current 4x4: 1996 Patrol 4.5SGL
- Home Language: Afrikaans
- Location: Kempton Park
- Has thanked: 1125 times
- Been thanked: 1036 times
Re: Front wheel brearing spanner
Alternatively you could make one from some flat bar, a couple of drill bits of the right size and a second-hand socket from the pawn shop.
Mag ons ons kenniskry met lekkerkry aanhoukry.
-
David
- Patrolman
- Posts: 723
- Joined: 17 Dec 2009 12:42
- Full Name: David Prinsloo
- Nickname: David
- Home Town: Stellenbosch
- Current 4x4: 2006 Patrol 4.8 GRX
- Home Language: Afrikaans
- Location: Stellenbosch
- Has thanked: 2 times
- Been thanked: 49 times
Re: Front wheel brearing spanner

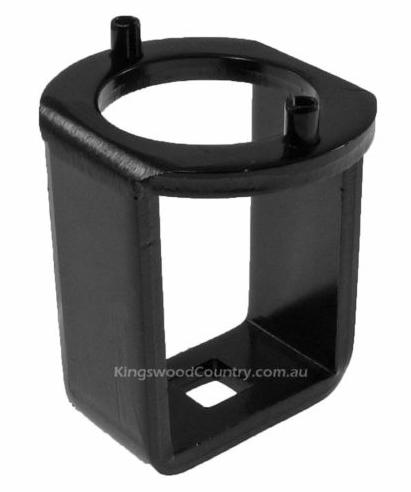

Hier is 'n voorbeeld van hoe hy lyk...
Nie te moeilik om te maak nie - Hoe lyk dit Peter - wanneer kry ons die eerste batch?
- wbs.JPG (15.31 KiB) Viewed 2371 times
2006 Patrol 4.8 GRX Tiptronic Y61/GU(4)
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
-
Peter Connan
- Moderator
- Posts: 6137
- Joined: 10 Sep 2010 07:21
- Full Name: Peter Connan
- Nickname: Piet
- Home Town: Kempton Park
- Current 4x4: 1996 Patrol 4.5SGL
- Home Language: Afrikaans
- Location: Kempton Park
- Has thanked: 1125 times
- Been thanked: 1036 times
Re: Front wheel brearing spanner
David omdat my kar manual hubs het, het ek niks om te meet nie.
As julle egter vir my die pennetjie se grotes, die afstand tussen hulle, en die diepte van die "boks" kan laat weet, kan ek drie of vier opmaak, sodat ons een in elke sentrum beskikbaar het?
As julle egter vir my die pennetjie se grotes, die afstand tussen hulle, en die diepte van die "boks" kan laat weet, kan ek drie of vier opmaak, sodat ons een in elke sentrum beskikbaar het?
Mag ons ons kenniskry met lekkerkry aanhoukry.
-
David
- Patrolman
- Posts: 723
- Joined: 17 Dec 2009 12:42
- Full Name: David Prinsloo
- Nickname: David
- Home Town: Stellenbosch
- Current 4x4: 2006 Patrol 4.8 GRX
- Home Language: Afrikaans
- Location: Stellenbosch
- Has thanked: 2 times
- Been thanked: 49 times
Re: Front wheel brearing spanner
Dankie - Ek sal kyk of ek die naweek gou mates kan neem en jou dan laat weet
Google sê die penne is enige iets van 50 tot 55mm uitmekaar
Die gate is 6mm groot so penne +-5mm sal reg wees
Hier is nog voorbeelde van tuisgemaakte tools:
Die prosedure om bearings op 'n GU te 'tighten' is soos volg:
Google sê die penne is enige iets van 50 tot 55mm uitmekaar
Die gate is 6mm groot so penne +-5mm sal reg wees

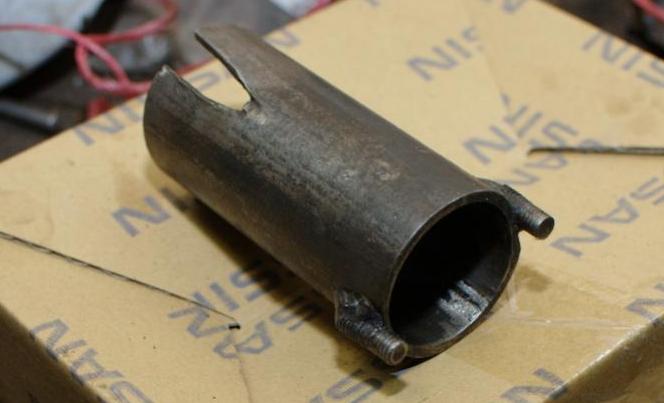

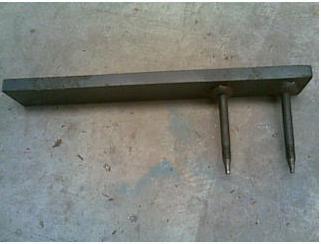

Hier is nog voorbeelde van tuisgemaakte tools:
- hs1.JPG (27.93 KiB) Viewed 2360 times
- hs2.JPG (11.52 KiB) Viewed 2360 times
...acording to the manual you set the nuts to 167-196 nm.
spin wheel a few times.
loosen of to zero nm.
then tighten to 3-5 nm.
2006 Patrol 4.8 GRX Tiptronic Y61/GU(4)
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
-
David
- Patrolman
- Posts: 723
- Joined: 17 Dec 2009 12:42
- Full Name: David Prinsloo
- Nickname: David
- Home Town: Stellenbosch
- Current 4x4: 2006 Patrol 4.8 GRX
- Home Language: Afrikaans
- Location: Stellenbosch
- Has thanked: 2 times
- Been thanked: 49 times
Re: Front wheel brearing spanner

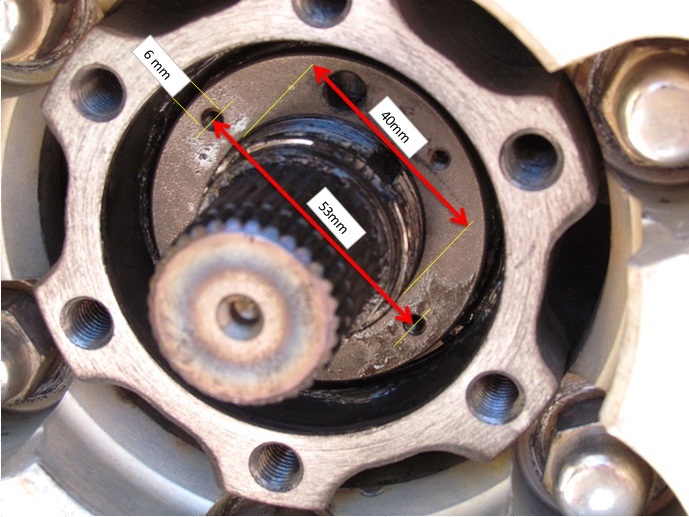

Hier is die mates vir die 4.8
- 4.8 front hub.jpg (126.63 KiB) Viewed 2350 times
2006 Patrol 4.8 GRX Tiptronic Y61/GU(4)
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
-
Tinus lotz
- Moderator
- Posts: 7590
- Joined: 29 Aug 2010 13:07
- Full Name: Tinus lotz
- Nickname: Tinus lotz
- Home Town: Centurion
- Current 4x4: Nissan patrol 4.8 GRX 2005
Toyota 2.7 legend 35 LWB 4X4 - Home Language: Afrikaans
- Has thanked: 802 times
- Been thanked: 562 times
Re: Front wheel brearing spanner
Netjies Dawid ek dink dit is n goeie idee om dit op n socket te bou omdat mens dit dan in n torge rench kan sit
ek dink dit is n goeie idee om dit op n socket te bou omdat mens dit dan in n torge rench kan sit -
David
- Patrolman
- Posts: 723
- Joined: 17 Dec 2009 12:42
- Full Name: David Prinsloo
- Nickname: David
- Home Town: Stellenbosch
- Current 4x4: 2006 Patrol 4.8 GRX
- Home Language: Afrikaans
- Location: Stellenbosch
- Has thanked: 2 times
- Been thanked: 49 times
Re: Front wheel brearing spanner
Ek stem saam Tinus.
Sover dit my aangaan het ek genoeg ou sockets wat ek kan vas sweis
Lyk my party ouens glo vas jy moet die dinges uit hom torque en dan laat skiet. Ek het nog altyd net die wiel gedraai terwyl hom vastrek en net op gevoel gewerk - sal volgende keer hulle metode probeer
Sover dit my aangaan het ek genoeg ou sockets wat ek kan vas sweis
Lyk my party ouens glo vas jy moet die dinges uit hom torque en dan laat skiet. Ek het nog altyd net die wiel gedraai terwyl hom vastrek en net op gevoel gewerk - sal volgende keer hulle metode probeer
2006 Patrol 4.8 GRX Tiptronic Y61/GU(4)
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel
Stop Rhino Poaching Supporter!
-
Tinus lotz
- Moderator
- Posts: 7590
- Joined: 29 Aug 2010 13:07
- Full Name: Tinus lotz
- Nickname: Tinus lotz
- Home Town: Centurion
- Current 4x4: Nissan patrol 4.8 GRX 2005
Toyota 2.7 legend 35 LWB 4X4 - Home Language: Afrikaans
- Has thanked: 802 times
- Been thanked: 562 times
Re: Front wheel brearing spanner
Ja 200nm is darem vas jong veral vir daai klein penne wat indruk????weet die mense nie van tik die bearing eers op sy plek nie?
veral vir daai klein penne wat indruk????weet die mense nie van tik die bearing eers op sy plek nie?Who is online
