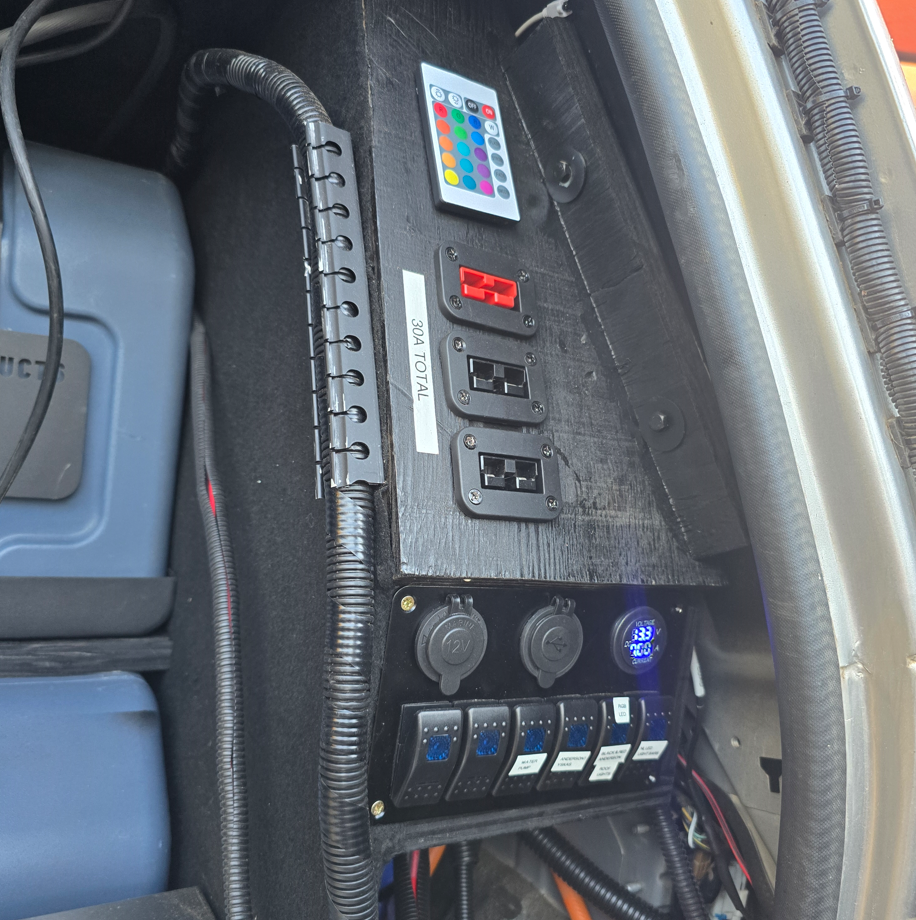

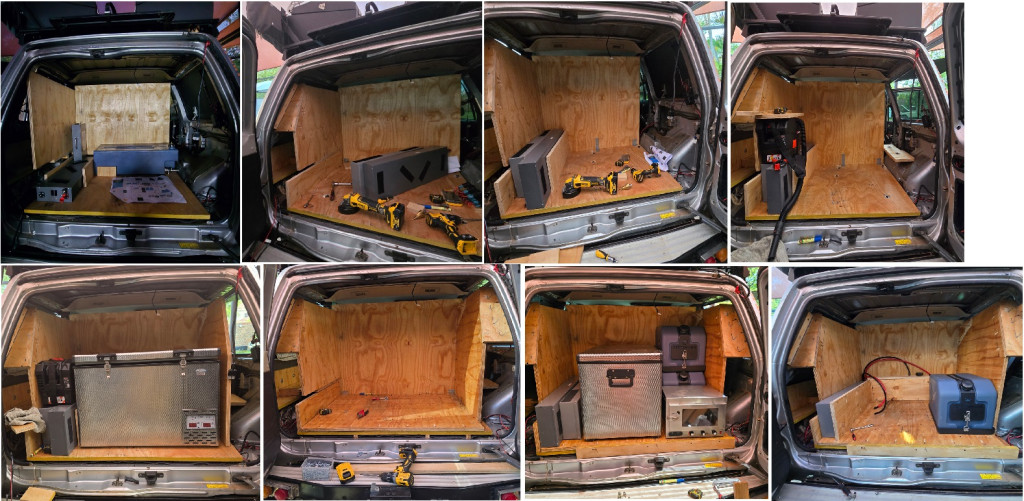

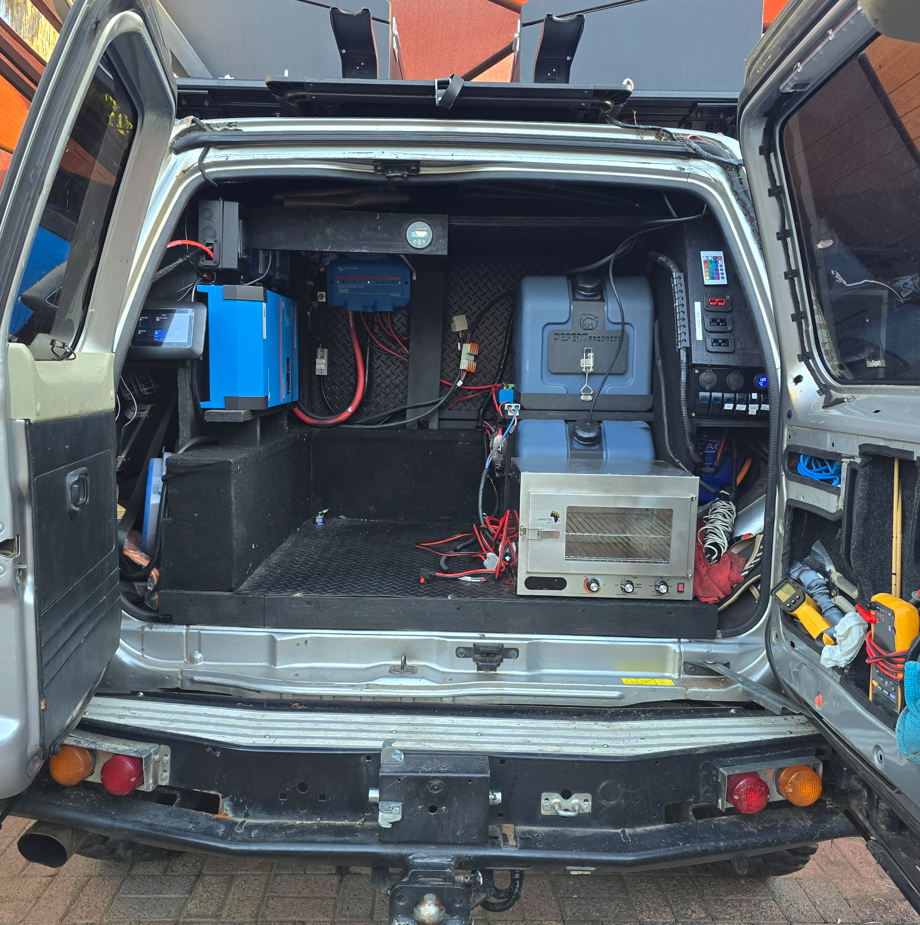

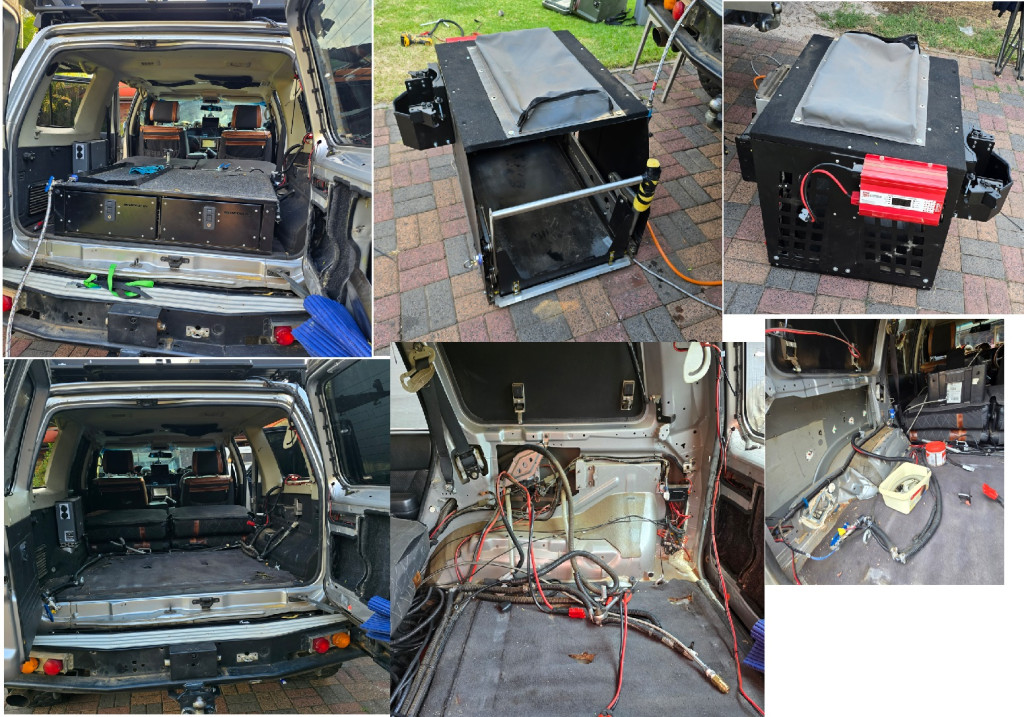

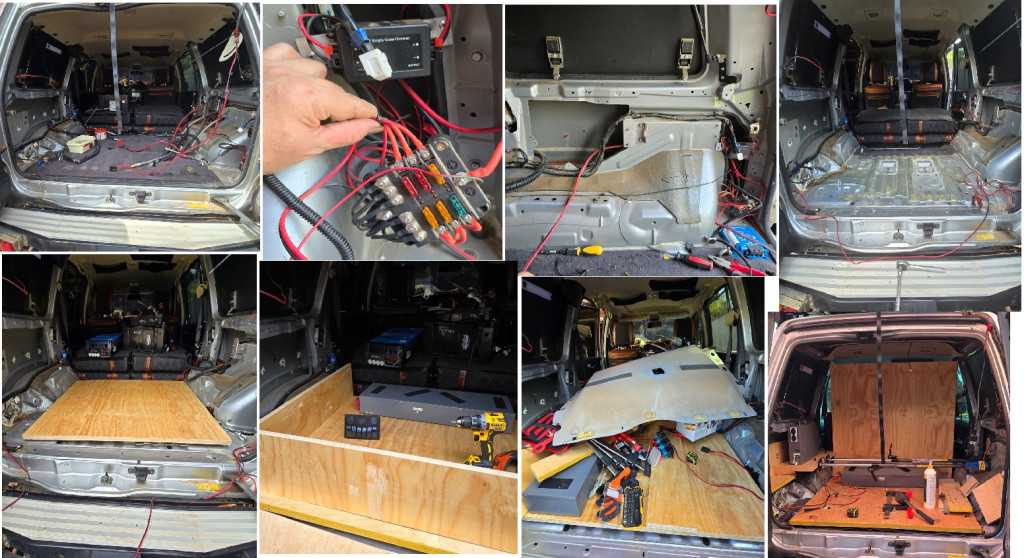

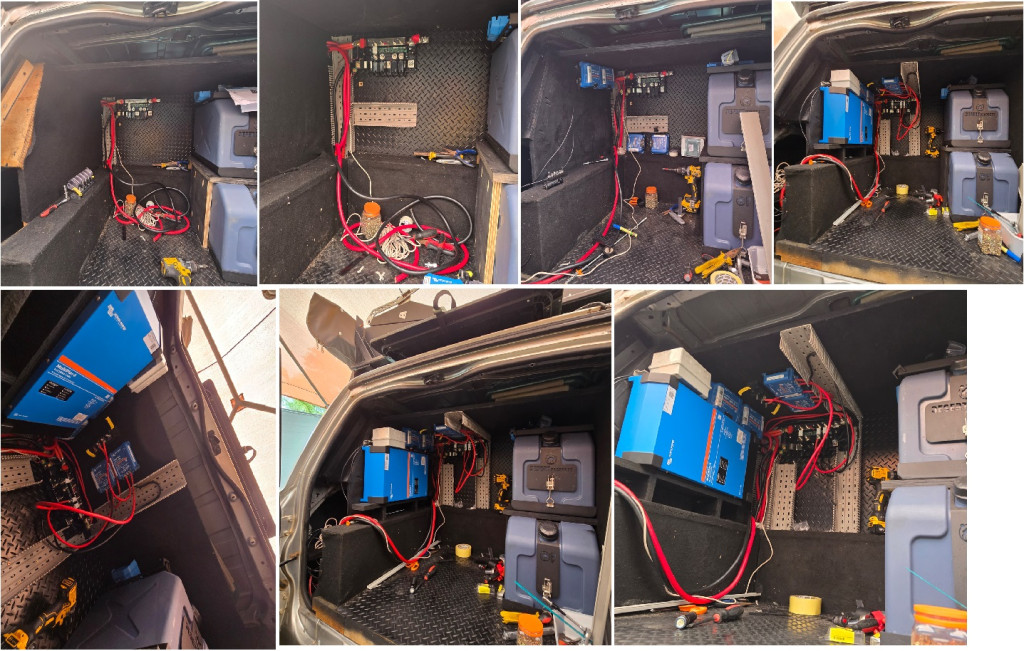

After several months of cutting, measuring, reworking, experimenting, and dealing with some well-deserved (but very inconvenient) rainfall, I’m excited to finally share the completed rear electrical overhaul on my Patrol. What was originally planned as a 2-month project stretched to nearly 5—but in hindsight, that extra time allowed me to refine the layout, resolve unforeseen challenges, and build a system without compromise.

This setup may seem excessive to some, but with a wife and three kids joining me more often, it’s become a necessity rather than a luxury.

I’ve included a ZIP file containing the full PDF with all the technical details. Unfortunately, the forum won't allow direct upload of the PDF due to size restrictions.

[Rodney]

Thanks for the info. Very useful. About to do something similar but most likely in 24V so your build is insightful.

[SJC]

Impressive.

[andredurand]

lyk goed

[Anthony Forgey]

wow!!
lots of wiring there!!

Is that the 3000w inverter?

[Rooster]

Yes Ant 3000W
Specs

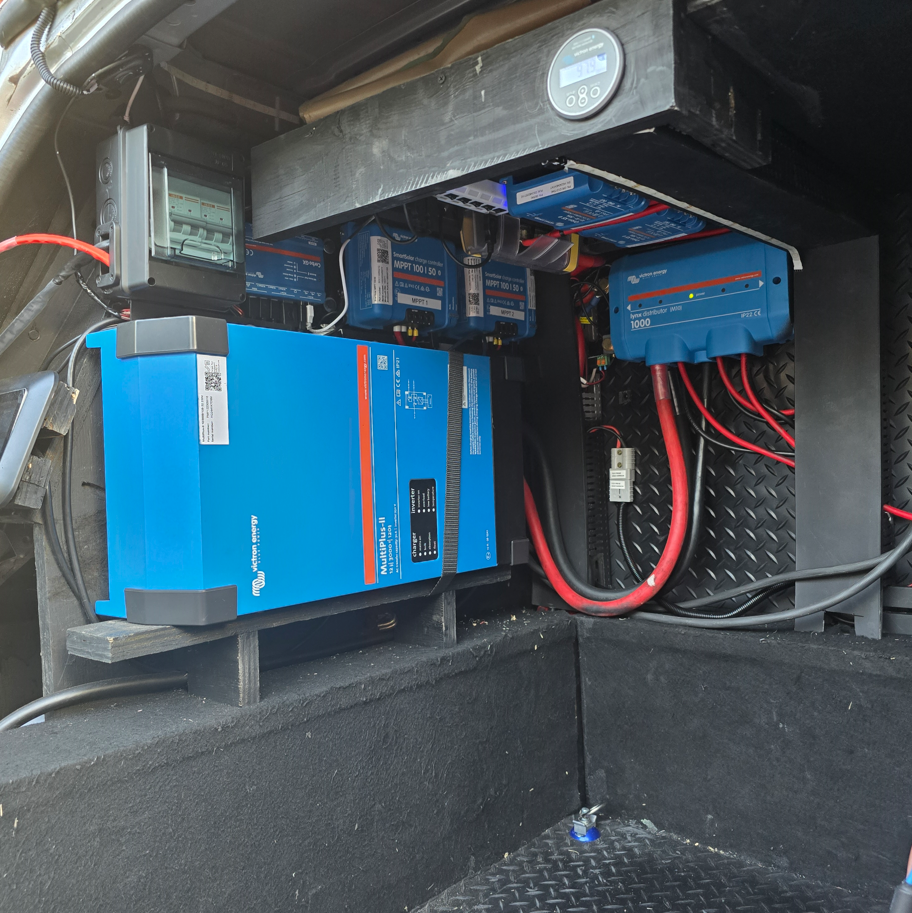

MultiPlus-II 12/3000/120-32 230V 12V 3kVA Inverter/Charger installed

Key Specs:

Nominal Power: 3000 VA (3 kVA)

AC Input: 230V AC

Battery Voltage: 12V

Charger Output: 120A max

AC Passthrough: 30A (when connected to grid or generator)
