Packing System Build

Please tell us about your DIY projects, tips and tricks
Post Reply
User avatar
iandvl
Patrolman 1000+
Patrolman 1000+
Posts: 1757
Joined: 12 Jan 2015 13:26
Full Name: Ian de Villiers
Nickname: Ian
Home Town: Garsfontein
Current 4x4: Nissan Patrol 4.5 GRX
Home Language: English
Has thanked: 439 times
Been thanked: 670 times

Packing System Build

Post by iandvl »

I've got a drawer system and a fridge slide in the boot. When I first started on the overlanding type thing, a very large number of trips I did solo and that worked perfectly. However, since Liana, the LF, accompanies me these days. And since wimmin like packing everything including the kitchen sink on trips, space has been getting more of a problem.

The draw system I have has a "built in" fridge slide. The top shelf on the right hand side can slide in and out. I always found this a little impractical though. Although I'm tall, even I'd battle to rummage around inside the fridge if I used that. So I put on an Alucab tilt fridge slide. It means I can get to my beer easily. :)

Sure - there is enough space for the two of us, but what has been sort of annoying me recently is that using the fridge is sometimes a pita when I'm packed. If there is stuff on top of the fridge, I need to unpack it. And then if I slide the fridge out, it is always a mission getting it back in as stuff falls down behind the back of the fridge when I pull it out. This means that despite the tilt slide, I cannot get to my beer easily. :(

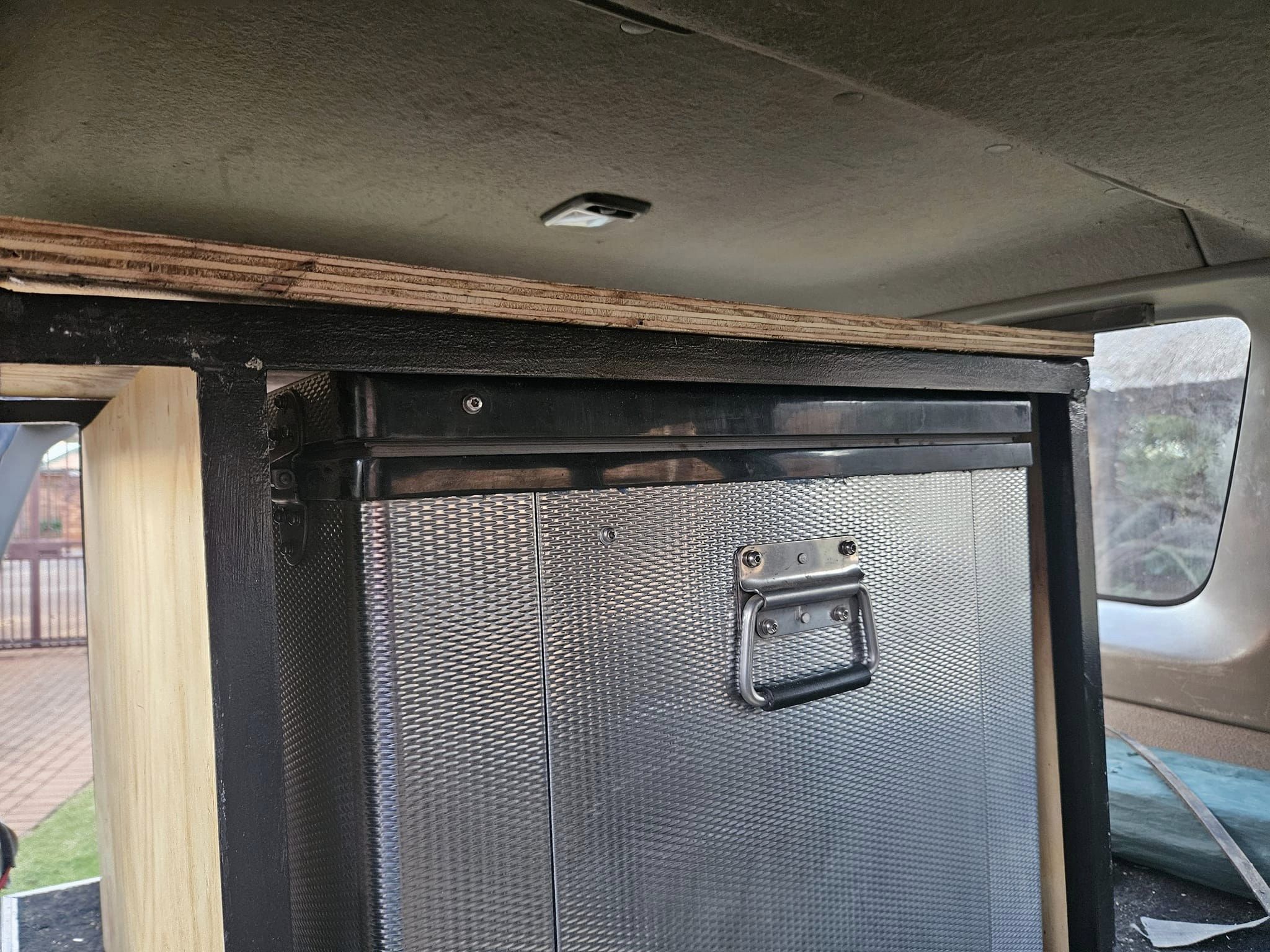

A couple of months ago, I welded together a frame for a packing thingy that fits over the fridge and thus solves the problem. I never got around to finishing it, as this was when I broke my foot and tore ligaments - I was welding, my one leg went dead and my "dead" foot caught on the door step when I walked in. Stupid, but these things happen.

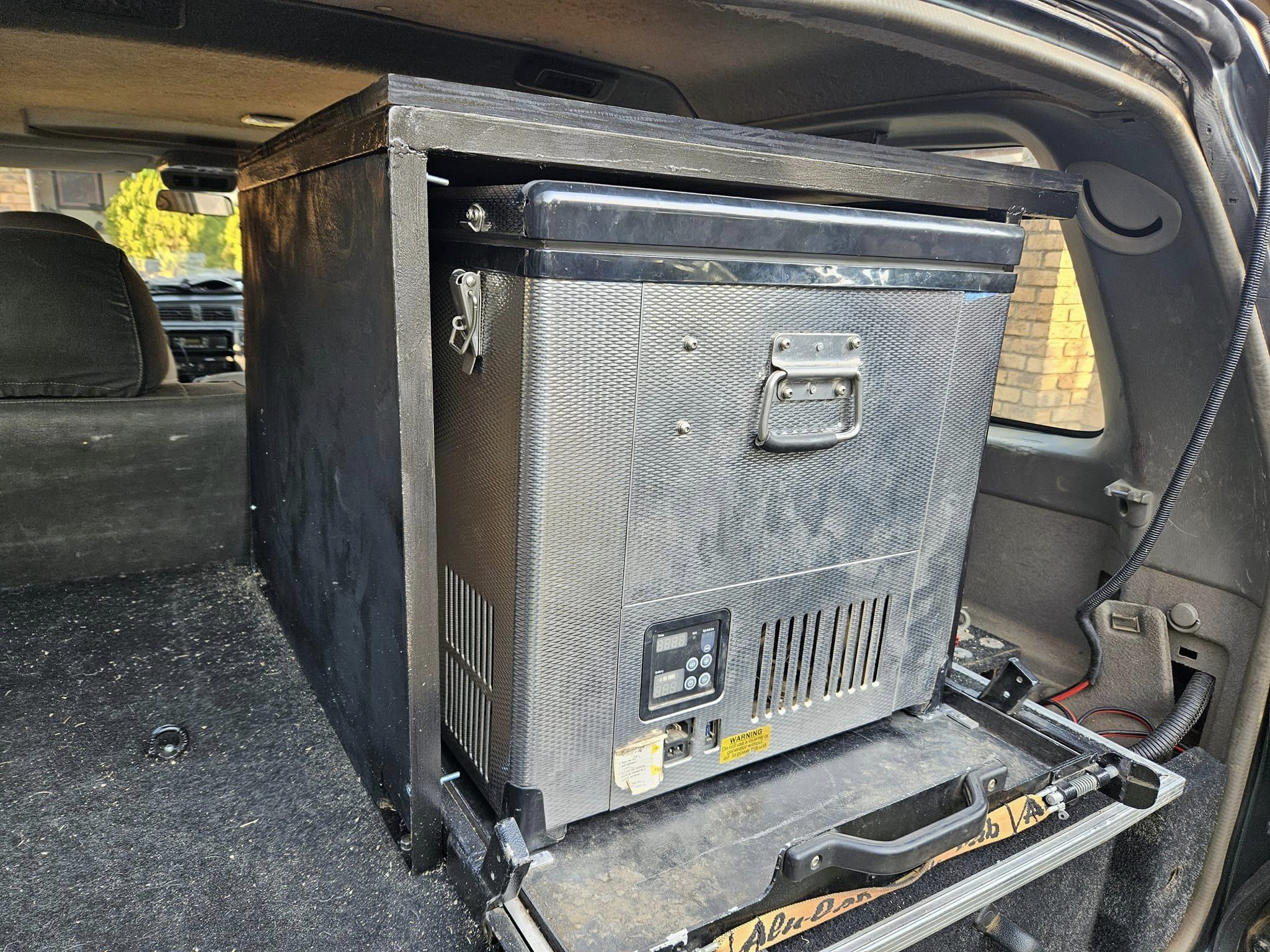

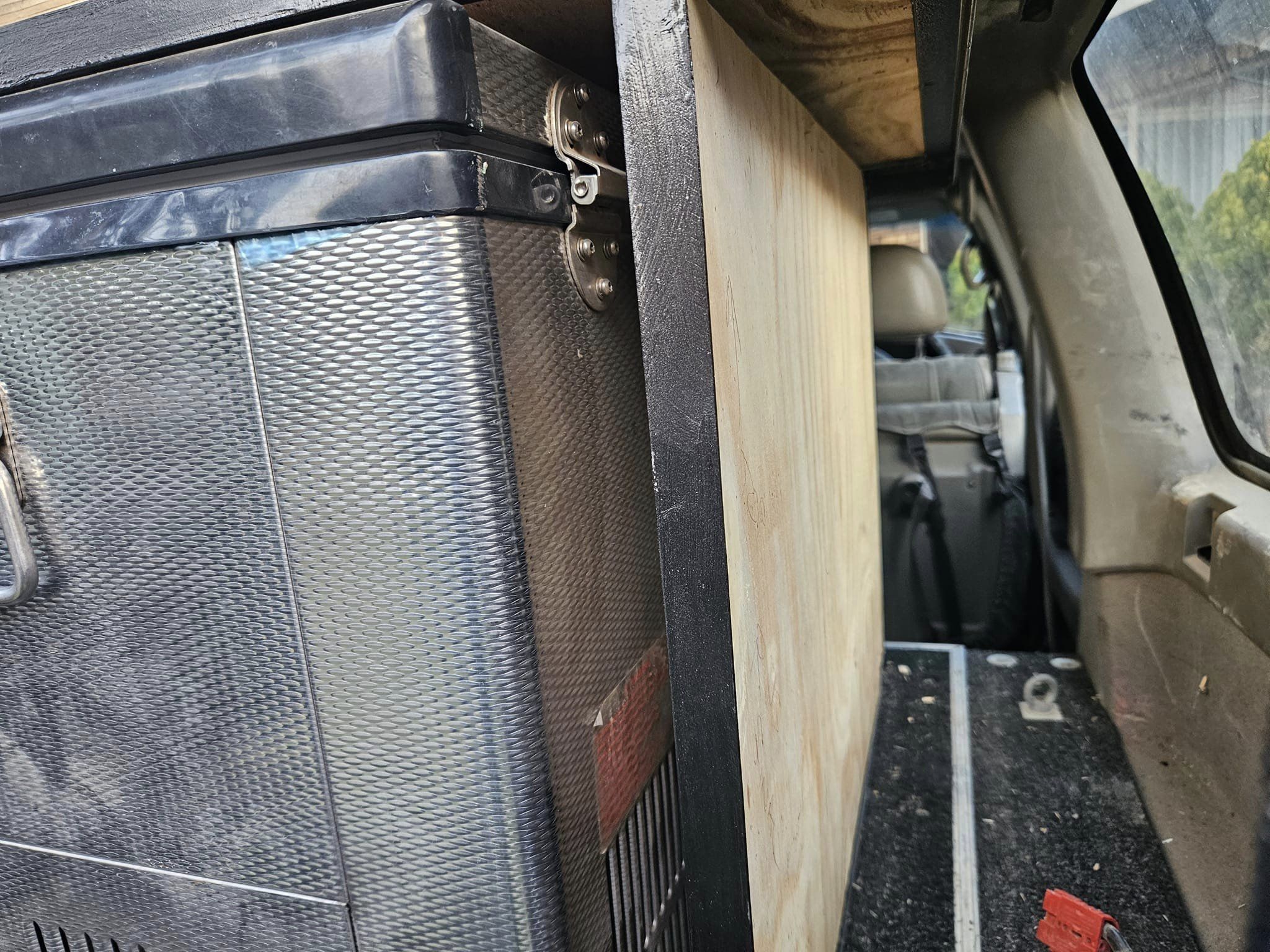

Last weekend I finished the frame, gave it a dash of Hammerite and got it mounted and started cutting the shutter ply for the sides. On Wednesday, I finished cutting the shutter ply. Although I'd normally carpet these things, I don't have enough time to finish it properly at the moment. So I just gave the shutter ply a spray of matt black.

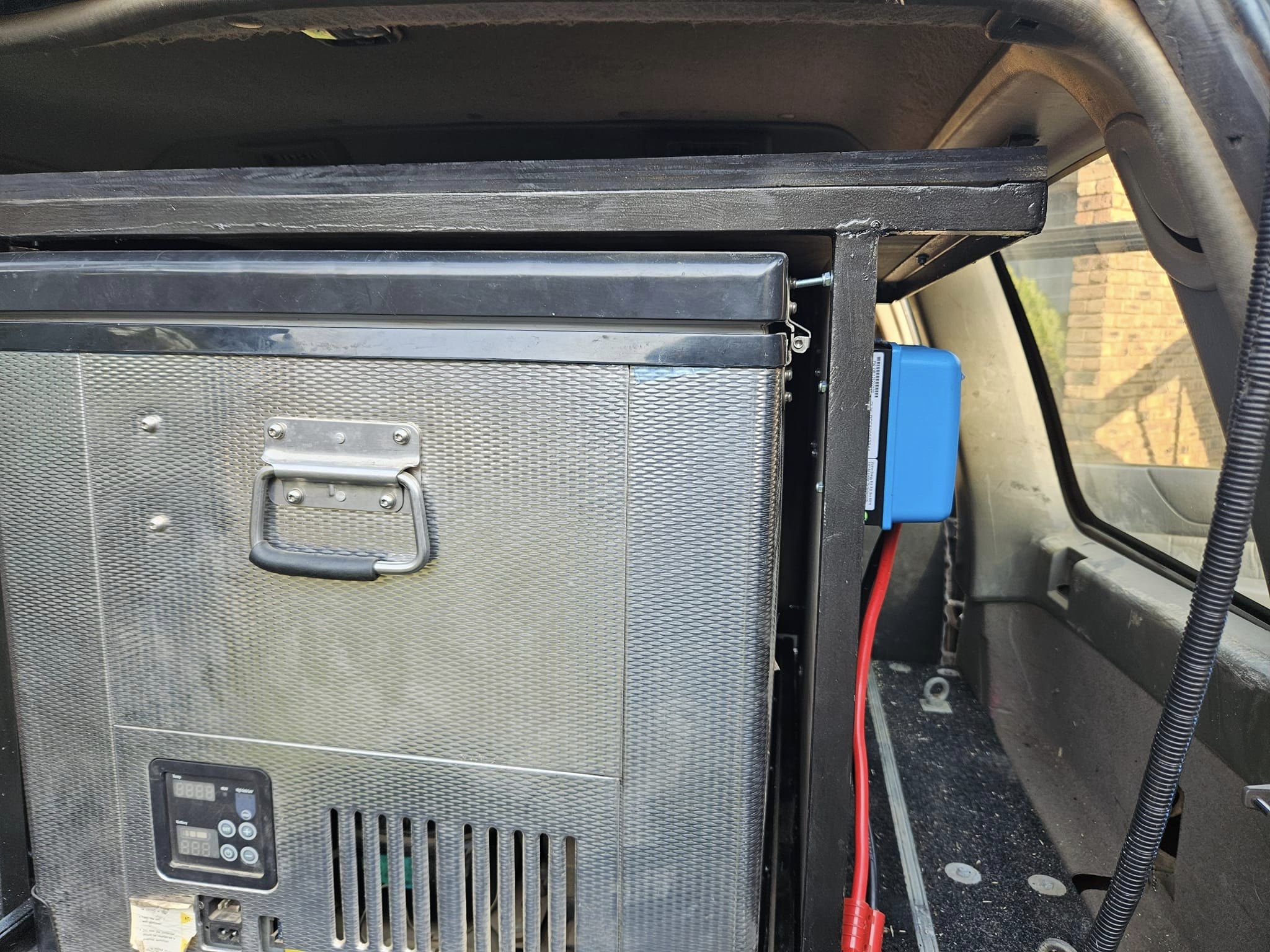

Apart from providing unmolested access to the fridge when we are completely packed, it has also provided me with a nice spot to mount my DC-DC and my MPPT charger. The DC-DC charger is new - I think I have eventually seen the light... The MPPT I always had stashed in a drawer and would just haul it out as needed...

I've got to finish wiring up the electrics, after which I can put my aux battery in again and finish it up for now. Well, until I pull it all apart again to carpet the panels...

I know Manny is going to make disparaging remarks about the welding as he has already done on FB. But it is actually properly (if a little scruffily) welded and it will do the trick.

The sawdust in the boot is from the build. But yes - my truck is filthy and I need to have it washed some time... :)
Ian de Villiers

Patrol 4.5 GRX
Jurgens XT65 2x0 with Super Select Zero
ORRA: H80

#use-hand-cleaner
#be-a-man

:biggrin:
User avatar
Witbobbejaan
Full Member
Full Member
Posts: 47
Joined: 15 Mar 2021 12:22
Full Name: Dion
Nickname: D.
Home Town: I dont know, name keeps changing...Eastern Cape
Current 4x4: TB45
(Wife's TB42)
Home Language: Afrikaans
Has thanked: 32 times
Been thanked: 14 times

Re: Packing System Build

Post by Witbobbejaan »

Nice. A practical setup!

Sorry to hear about your foot! Reminds me....

I was watching the latest upload on youtube of Offcourse 4x4 adventures (Anthony on this forum used to drive on it). Anyway, they banged up this guy's Defender propshaft and didn't get the car to basecamp that night. Then when they went back for it the next day, there's a 10 second insert saying the guy broke his leg that night! No details given on it, but jeez talk about bad luck.

Anyway, I was wondering where you fed the wiring through (presumably from engine compartment?) that I can see coming out the side...through the chassis rail?
mvcoller
Patrolman
Patrolman
Posts: 632
Joined: 07 Apr 2009 07:13
Full Name: Malcolm van Coller
Nickname: mvcoller
Home Town: In most reverse order - Jhb, V-Town, Vryburg, CT
Current 4x4: 2008 3.0 Di Patrol GL
and
1999 4.5 Patrol SGL
Home Language: Afr & Eng
Location: Befordview
Has thanked: 39 times
Been thanked: 177 times
Contact:

Re: Packing System Build

Post by mvcoller »

Great mods...congratulations, well done.

I see you have fitted the same make and size DC2DC charger and same make and size MPPT unit as well. Now you must just fit the same Victron AC to DC charger as I have.i also fitted a Victron 500a Snart Shunt.

What battery did you fit, and where did you fit it?
User avatar
iandvl
Patrolman 1000+
Patrolman 1000+
Posts: 1757
Joined: 12 Jan 2015 13:26
Full Name: Ian de Villiers
Nickname: Ian
Home Town: Garsfontein
Current 4x4: Nissan Patrol 4.5 GRX
Home Language: English
Has thanked: 439 times
Been thanked: 670 times

Re: Packing System Build

Post by iandvl »

Witbobbejaan wrote: 10 Aug 2023 19:18 Nice. A practical setup!

Sorry to hear about your foot! Reminds me....

I was watching the latest upload on youtube of Offcourse 4x4 adventures (Anthony on this forum used to drive on it). Anyway, they banged up this guy's Defender propshaft and didn't get the car to basecamp that night. Then when they went back for it the next day, there's a 10 second insert saying the guy broke his leg that night! No details given on it, but jeez talk about bad luck.

Anyway, I was wondering where you fed the wiring through (presumably from engine compartment?) that I can see coming out the side...through the chassis rail?
Yes. That is really bad luck... I must ask Ant about that.

Wiring was done by a fitment center. It runs from the battery along the chassis underneath the vehicle. Enters the cab via the rubber bung behind the back light - where the jack stays.
Ian de Villiers

Patrol 4.5 GRX
Jurgens XT65 2x0 with Super Select Zero
ORRA: H80

#use-hand-cleaner
#be-a-man

:biggrin:
User avatar
iandvl
Patrolman 1000+
Patrolman 1000+
Posts: 1757
Joined: 12 Jan 2015 13:26
Full Name: Ian de Villiers
Nickname: Ian
Home Town: Garsfontein
Current 4x4: Nissan Patrol 4.5 GRX
Home Language: English
Has thanked: 439 times
Been thanked: 670 times

Re: Packing System Build

Post by iandvl »

mvcoller wrote: 10 Aug 2023 19:57 Great mods...congratulations, well done.

I see you have fitted the same make and size DC2DC charger and same make and size MPPT unit as well. Now you must just fit the same Victron AC to DC charger as I have.i also fitted a Victron 500a Snart Shunt.

What battery did you fit, and where did you fit it?
Thanks Malcolm. I've got a CTek I use for charging from AC. A smart shunt is on my list of "wanted things" but I'll get to that later.

I'm a luddite when it come to batteries. Cannot afford the new-fangled lithium batteries and normally only use large crank batteries. The current battery is a Dixon 674. It has worked well, but it is on its way out now. That said, I bought it in 2018. So this has lasted 5 years. I find that excellent. Aux batteries do get a little more "abused" than the primary battery.
Ian de Villiers

Patrol 4.5 GRX
Jurgens XT65 2x0 with Super Select Zero
ORRA: H80

#use-hand-cleaner
#be-a-man

:biggrin:
mvcoller
Patrolman
Patrolman
Posts: 632
Joined: 07 Apr 2009 07:13
Full Name: Malcolm van Coller
Nickname: mvcoller
Home Town: In most reverse order - Jhb, V-Town, Vryburg, CT
Current 4x4: 2008 3.0 Di Patrol GL
and
1999 4.5 Patrol SGL
Home Language: Afr & Eng
Location: Befordview
Has thanked: 39 times
Been thanked: 177 times
Contact:

Re: Packing System Build

Post by mvcoller »

I used to have two GEL batteries in my Patrol, one in the engine bay and the second one on top of the left rear wheel arch, which is wasted space with the pacing system in place. Both of them gave up after about 5 years, and at the same time.

Two of them were only about R500 cheaper than a 100AH Blue Nova LiFeP04 (on special at Leroy Merlyn) for R7500, so I went for it. The expensive bit was however the 4 Victron units I had to buy. I however bought those over a period of about 9 months while rebuilding the whole system. The LiFeP04 battery lives on the left rear wheel arch.
User avatar
iandvl
Patrolman 1000+
Patrolman 1000+
Posts: 1757
Joined: 12 Jan 2015 13:26
Full Name: Ian de Villiers
Nickname: Ian
Home Town: Garsfontein
Current 4x4: Nissan Patrol 4.5 GRX
Home Language: English
Has thanked: 439 times
Been thanked: 670 times

Re: Packing System Build

Post by iandvl »

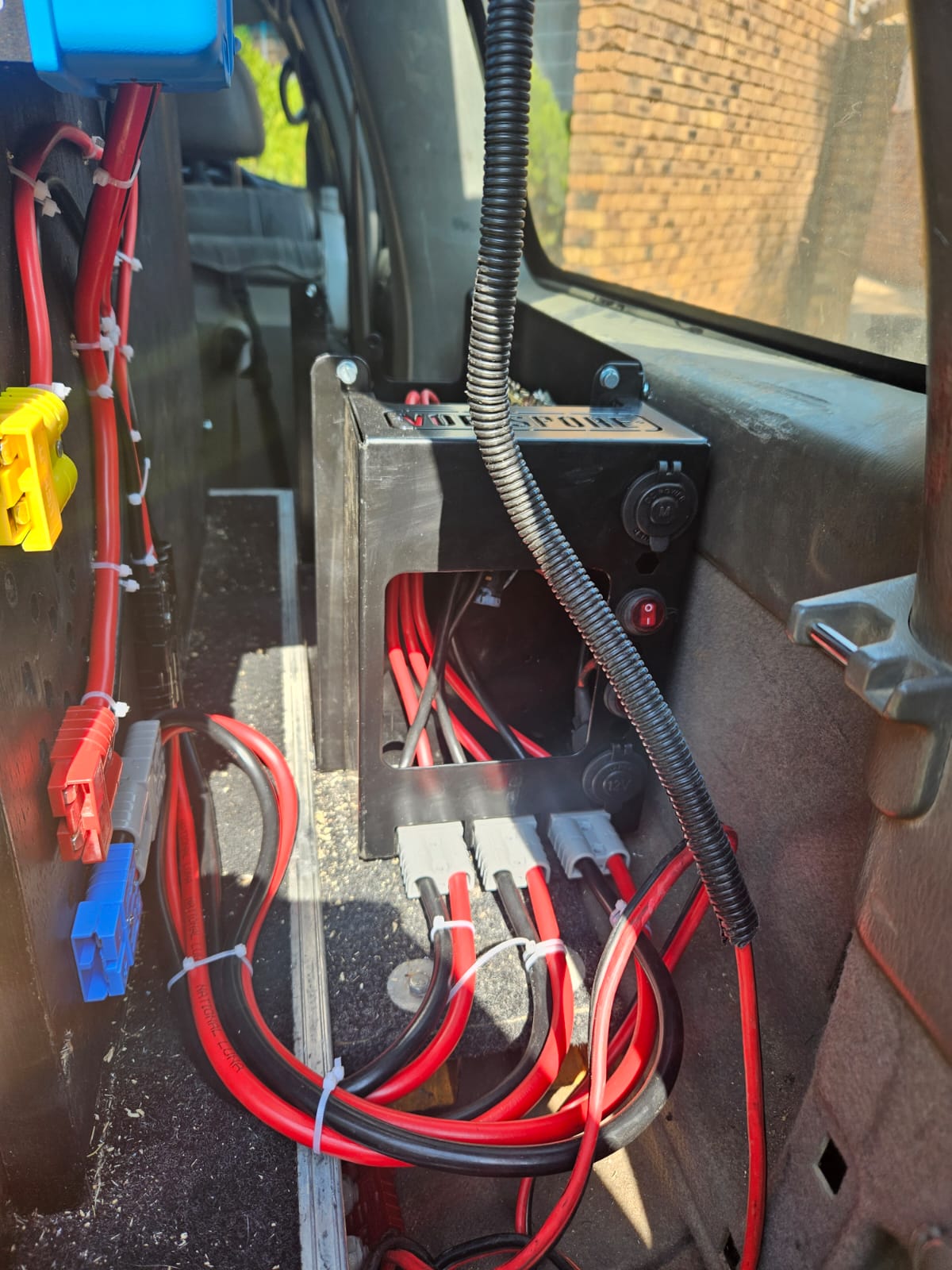

Wired up charge controllers over the weekend - it is a little messy (I await disparaging comments) but I'll neaten it up when I remove the panels again for carpeting after this trip...
