TB48 O2 sensors

[hugejp]

Does anyone possibly have part numbers & distributor info on TB48 O2 Sensors? I think Bosch have units for the TB48??

I have also read on the Australian forum that the front & rear sensors have different part numbers???

Any help & advice apreciated

[AndriesS]

replaced mine with the same part no, never had engine light and also no MPG improvement

[jonathan]

Does anyone possibly have part numbers & distributor info on TB48 O2 Sensors? I think Bosch have units for the TB48??

I have also read on the Australian forum that the front & rear sensors have different part numbers???

Any help & advice apreciated

Hi JP, I think I posted the part numbers somewhere in this thread when I replaced mine viewtopic.php?f=48&t=6975

[hugejp]

Hi JP, I think I posted the part numbers somewhere in this thread when I replaced mine viewtopic.php?f=48&t=6975

I notice that the old sensors are 3wire & the new are 4wire, how do you work around this?

[hugejp]

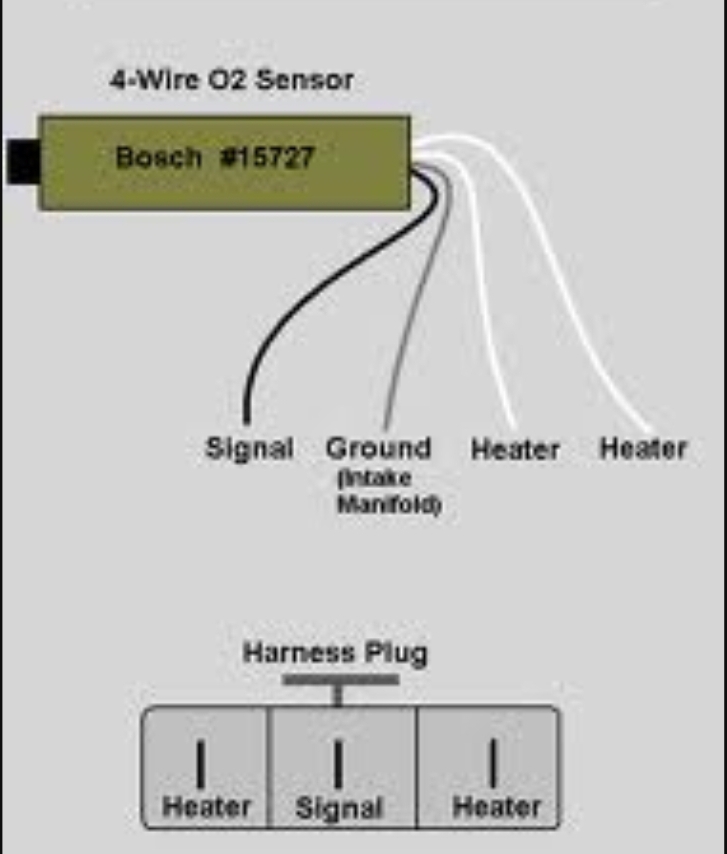

I found this online...

[hugejp]

Looks like the 3wire earths through its own body & the manifold & 4 wire uses a separate earth wire.

I am very challenged when it comes to wiring, so please correct me if I am talking kek...

[jonathan]

I don't recall exactly, but this is what I did back then:

“One then cuts the plug from the old sensor and connect it to the new one. There is a kit included and instructions. So the extra grey wire on the new sensors are apparently external earths and I joined the together and connected to the body. From what I can gather the two white wires are for the heating element, which ensures that the sensors work correctly before the engine reaches temperature. Out of curiousity I tested and compared old and new sensors. On the new ones I could get a reading between the two whites, but not the old. Which may or may not explain the heavy smell of fuel I got when starting cold.”

So don’t worry JP looks like you're on the right track
