Hi Guys, does anybody know how to replace these belts?
I have tried and succeeded halfway in replacing the 2 fanbelts and one belt for the oilpump but the belt for the aircon pump baffles me.
Detailed instructions for a "mechanically handicapped" person please!
Thanks.
Christo Muller.
Replacing V Belts
-
- Patrolman
- Posts: 611
- Joined: 01 Feb 2010 07:42
- Full Name: Andries
- Nickname: None
- Home Town: Pretoorsdorp
- Current 4x4: 4.8 GL with hairdryer.
- Home Language: Afrikaans
- Has thanked: 28 times
- Been thanked: 38 times
Re: Replacing V Belts
Hi,
I'm not familiar with the 4.5's layout but on the 4.8l we have a an idler pulley that is accessible from the bottom. You need to undo the bolt in the center of the of pulley, not remove it, just undo it a turn or two, then you need to remove the tension by undoing the tension bolt enough so the belt will slip off.
I'm not familiar with the 4.5's layout but on the 4.8l we have a an idler pulley that is accessible from the bottom. You need to undo the bolt in the center of the of pulley, not remove it, just undo it a turn or two, then you need to remove the tension by undoing the tension bolt enough so the belt will slip off.
-
- Patrolman
- Posts: 611
- Joined: 01 Feb 2010 07:42
- Full Name: Andries
- Nickname: None
- Home Town: Pretoorsdorp
- Current 4x4: 4.8 GL with hairdryer.
- Home Language: Afrikaans
- Has thanked: 28 times
- Been thanked: 38 times
Re: Replacing V Belts

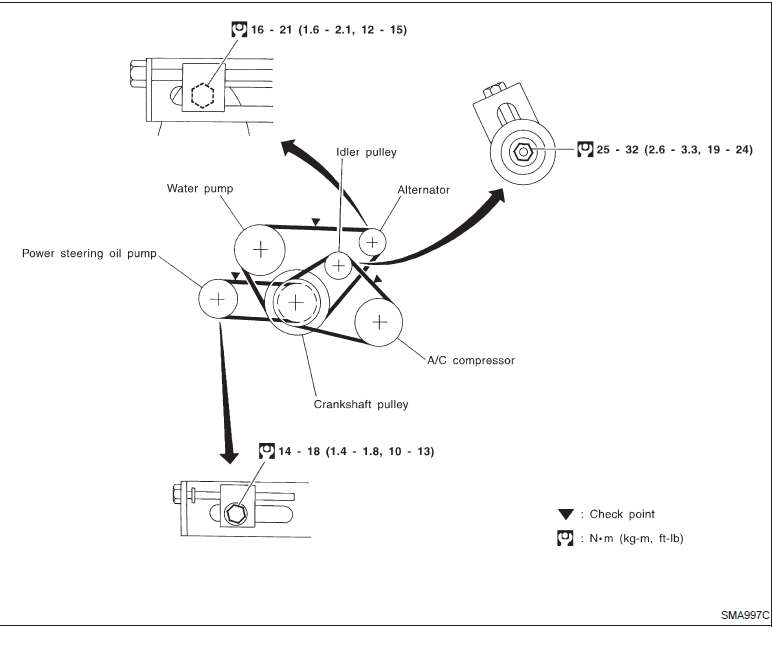

looks like access to the older engine's ac pulley are from the top
- Attachments
-
- belt.jpg (28.16 KiB) Viewed 2326 times
- Peter Connan
- Moderator
- Posts: 6137
- Joined: 10 Sep 2010 07:21
- Full Name: Peter Connan
- Nickname: Piet
- Home Town: Kempton Park
- Current 4x4: 1996 Patrol 4.5SGL
- Home Language: Afrikaans
- Location: Kempton Park
- Has thanked: 1125 times
- Been thanked: 1036 times
Re: Replacing V Belts
Hi Stefnie
It is like Andries's picture shows. Loosen the centre nut on the Idler pulley (it is a long nut and if I remember correctly it takes a 12 or 14mm spanner. Then slack off the adjusting screw on the pulley, it is reached from the top. You will need a socket with a long (200mm) extension to do that.
Cheers
It is like Andries's picture shows. Loosen the centre nut on the Idler pulley (it is a long nut and if I remember correctly it takes a 12 or 14mm spanner. Then slack off the adjusting screw on the pulley, it is reached from the top. You will need a socket with a long (200mm) extension to do that.
Cheers
Mag ons ons kenniskry met lekkerkry aanhoukry.
- Herrie
- Patrolman 1000+
- Posts: 2999
- Joined: 08 Apr 2009 07:17
- Full Name: Kobus Pienaar
- Nickname: Herrie
- Home Town: Kempton Park
- Current 4x4: 1999 Patrol 4500e GRX
1983 Datsun Safari - Home Language: Afrikaans
- Location: Kempton Park
- Has thanked: 55 times
- Been thanked: 94 times
Re: Replacing V Belts
Dis reg hoe jy die 4.5 ook doen.
Herrie op Safari/Patrollie
1983 Safari
1999 Patrol 4500 GRX
1983 Safari
1999 Patrol 4500 GRX
-
- Junior Member
- Posts: 18
- Joined: 19 Feb 2011 00:44
- Full Name: Christo Muller
- Nickname: Christo
- Home Town: Orania
- Current 4x4: 1998 Nissan Patrol 4.5 GL
- Home Language: Afrikaans
Re: Replacing V Belts
Thank you guys, all went well thanks to your sketch John and to my wife's tiny hands! I cursed these Japanese who makes it very frustrating to work within such confined spaces!
