4.8 Oil Filter

Post by ra_01 »

Hi Guys

Little help. Parts Manager at Nissan Midrand has suggested a substitute oil filter 65F0A as they don't have stock of 31U0B. I see the 65F0A is little smaller so i may have to replace it sonner. However i do have a terrain tammer as well but i prefer to use TT as if i cant get a Nissan Guinune filter.

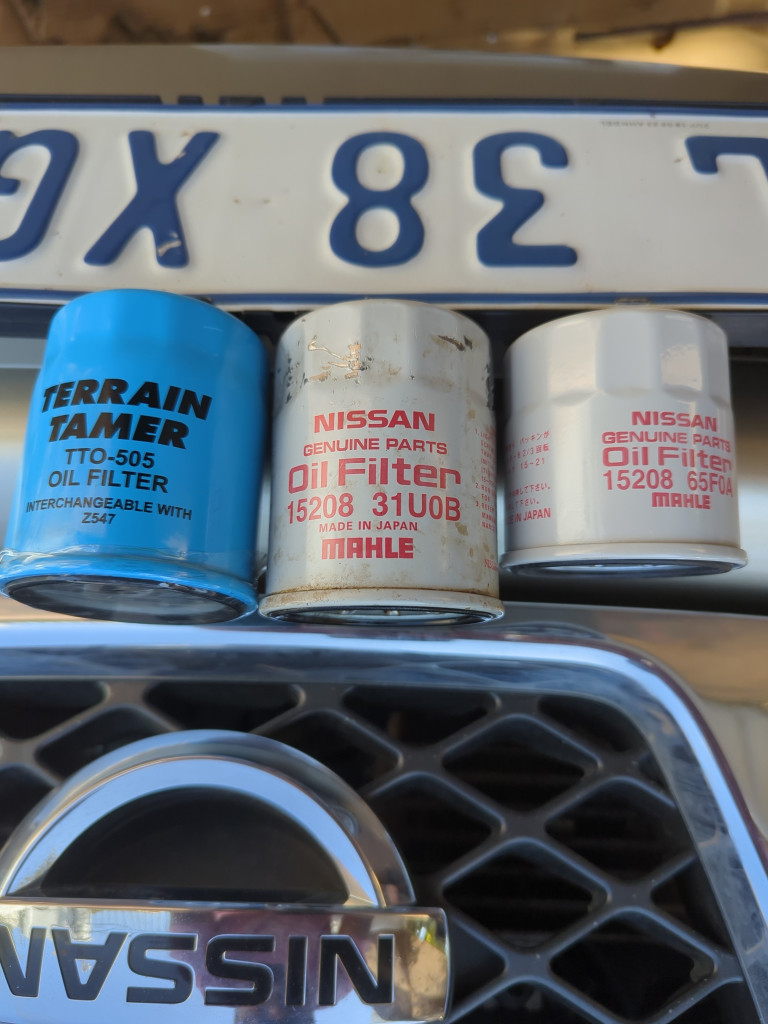

Is it OK to use 65F0A or would you recommend TT? Pics of all three are below.

Thanks
Attachments
Regards
Rahul
_______________________________
Current Straight 6 :wink:
User avatar
SJC
Patrolman 1000+
Patrolman 1000+
Posts: 3328
Joined: 23 Nov 2014 14:20
Full Name: SJC
Nickname: Fanus
Home Town: Nelspruit
Current 4x4: 1996 Patrol 4.2 GQ (TB42)
Home Language: Afrikaans/English
Has thanked: 237 times
Been thanked: 203 times

Re: 4.8 Oil Filter

Post by SJC »

I see the 4.8 also use a Z226 GUD filter (same as 4.5)... The Z226 filter is 8.5cm high. How tall is the NIssan filters.
Bigger filter will probably be better than the smaller nissan filter. in my opinion.
I f you already have the TT filter, use it...

I got a Z226 filter abvailable if anyone is in need of one. (dont own a 4.5 anymore).

viewtopic.php?p=94677#p94677
1996 Nissan Patrol 4.2 SGL
User avatar
ra_01
Senior Member
Senior Member
Posts: 253
Joined: 10 Feb 2016 08:50
Full Name: Rahul
Nickname: Rahul
Home Town: Johannesburg
Current 4x4: Patrol 4.8 2016
Home Language: English
Has thanked: 23 times
Been thanked: 60 times

Re: 4.8 Oil Filter

Post by ra_01 »

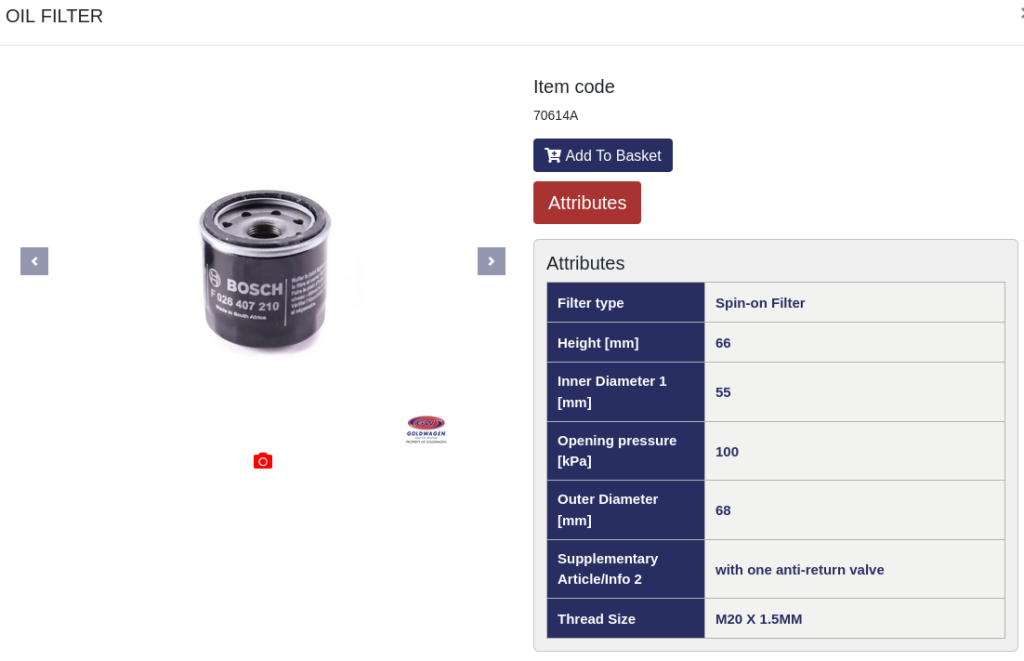

I ended up using the Nissan small oil filter height 7cm. It has same pressure as the taller (8cm) version.

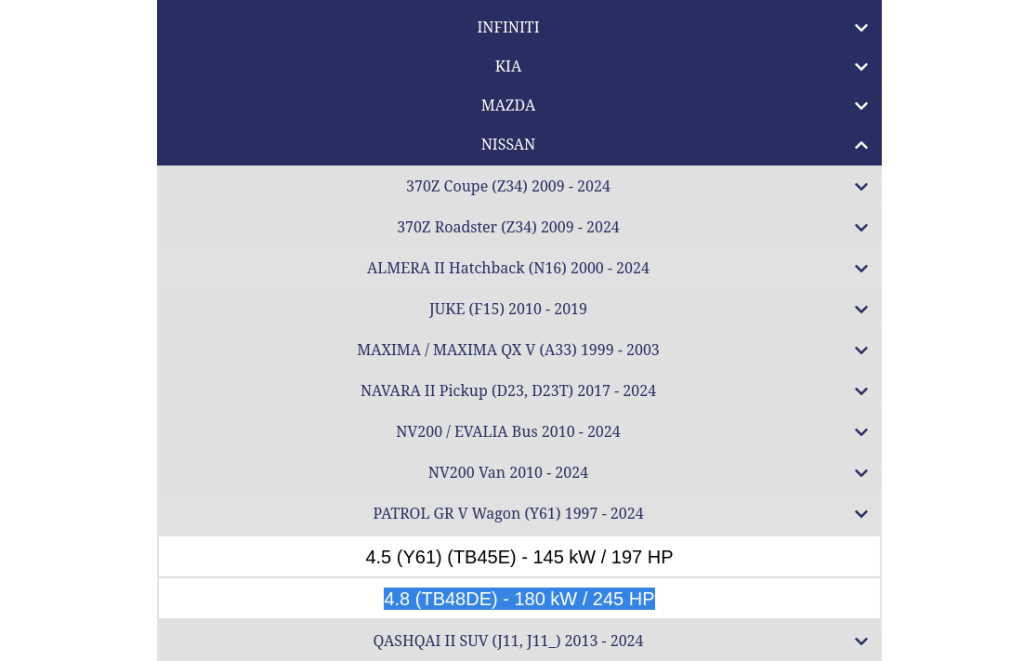

Weirdly Goldwagen also recommends the smaller version for patrol 4.8

Screenshot from 2024-05-02 13-10-42.png
Screenshot from 2024-05-02 13-11-12.png

As for oil I used Liqui moly 5W30. I wanted to use Shell 10w30 but I couldn't find it in Midrand. Nissan dealers also uses 5W30 apparently. I pored in exactly 6.8 Liters, and dip stick level looked ok. However, after running the engine for sometime, oil level showed low. Does it take some time for the oil to settle in the tank? Or should I pour more?

I never checked the oil after running the engine :biggrin:
Regards
Rahul
_______________________________
Current Straight 6 :wink:
jakeslouw
Senior Member
Senior Member
Posts: 170
Joined: 23 Mar 2010 11:13
Full Name: Jakes Louw
Nickname: Jakes
Home Town: De Wildt
Current 4x4: Jeep Wrangler
Home Language: English
Has thanked: 28 times
Been thanked: 28 times

Re: 4.8 Oil Filter

Post by jakeslouw »

I'd rather run Delo 400 15W40 but that's just me.
User avatar
Peter Connan
Moderator
Posts: 6136
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 1125 times
Been thanked: 1036 times

Re: 4.8 Oil Filter

Post by Peter Connan »

SJC wrote: 01 May 2024 16:04 I see the 4.8 also use a Z226 GUD filter (same as 4.5)... The Z226 filter is 8.5cm high. How tall is the NIssan filters.
Bigger filter will probably be better than the smaller nissan filter. in my opinion.
I f you already have the TT filter, use it...

I got a Z226 filter abvailable if anyone is in need of one. (dont own a 4.5 anymore).

viewtopic.php?p=94677#p94677
After first filling the oil, you need to start the engine to pump oil into the filter.
Secondly, you need to allow some time (10 minutes) to drain all the oil in the head back into the sump before you check the level.
Mag ons ons kenniskry met lekkerkry aanhoukry.
