Difflock vacuum solenoid

[Jules]

No problemo Gerrit, ek sal dan ook met Koos Best, Pierre Lombard, Johan Pille Lombard,Donald Fisher en Thys vd Merwe reel en kyk of hul dit kan maak, soos ek jou verstaan moet dit die 23 Julie wees ? Ons moet Koos daar hê met sy D3 sodat hy my help met my GQ om jul manne met die 4.5 en 4.8 Patrols uittesleep.

Difflock OFF


Difflock ON


Shalom
Jules

[Jules]

Gerrit dit sal die 24ste Julie moet wees ek speel n krieket wedstryd die 23ste Julie

Shalom

[Gerrit Loubser]

Gerrit dit sal die 24ste Julie moet wees ek speel n krieket wedstryd die 23ste Julie

Jules, ons is in Mkhuze van 2 Julie tot 9 Julie. Ons kan dus die naweek van 16 en 17 Julie gaan speel by Bainage of die 24ste.

Ons moet Koos daar hê met sy D3 sodat hy my help met my GQ om jul manne met die 4.5 en 4.8 Patrols uittesleep.

Altyd goed om te weet hulp is naby. Miskien moet ek my kollega met sy Frod bakkie saamnooi sodat julle ten minste bietjie werk sal hê om te doen .

[johanp]

I've done some surfing on the internet and found a place in Alberton that supply solenoids at a reasonable price.
The fittings that they supply is the type where you press the vacuum pipe inside of it.
I took 6mm fittings but it is too small, you need 8mm fittings (outside diameter of the vacuum pipe).
I then got fittings from Media Hydraulics in Pta where the pipe fits over the fitting.

I took the faulty solenoid out of the original holder and fitted the new solenoid with 2 screws on the outside of the holder.
I replaced one of the short vacuum pipes between the solenoid and the Y-junction on the vacuum supply side with a longer pipe.
The pipe from the diff was long enough to reuse.

I paid just under R350.00 for the solenoid and fittings and another R28.00 for Media's fittings.

So far the difflock is working well.

Details for solenoid and supplier:

2/2 way brass solenoid valve ¼” connection with 2mm orifice.
Normally closed 12V. The valve would open if solenoid is activated.

Sonica
Umoya Automation cc
Cell 082 958 1872

[Jules]

Baie dankie vir die inligting Johan

Shalom

[Stefan]

Without pictures it never happened

[johanp]

EISH, dat die man my nie glo sonder fotos nie.

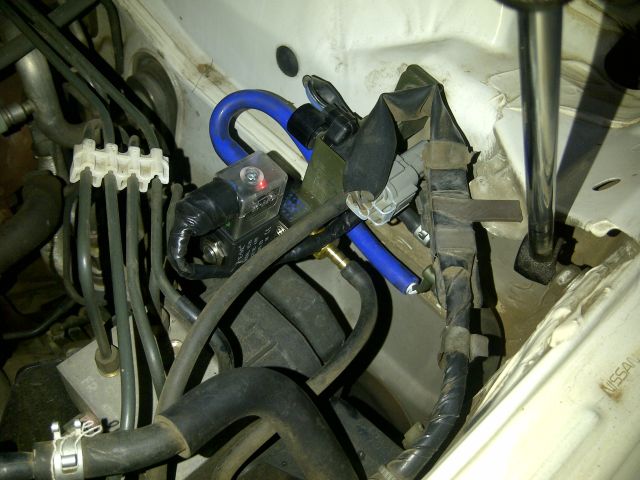

Daar is selfs 'n rooi LED wat wys wanneer dit aan is.

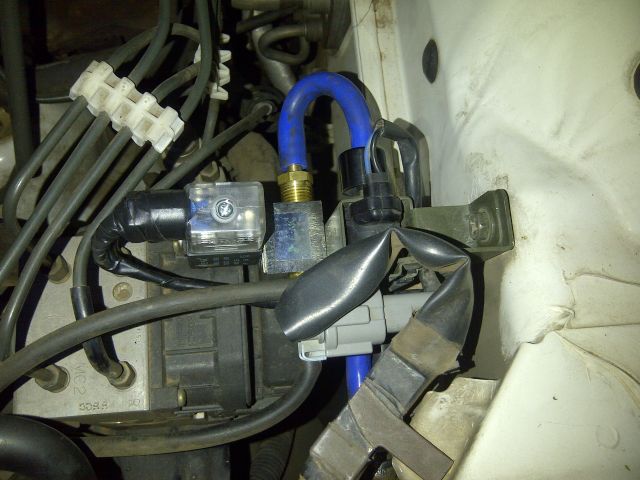

Difflock aan.jpg (56.46 KiB) Viewed 1640 times

Difflock af.jpg (54.29 KiB) Viewed 1640 times

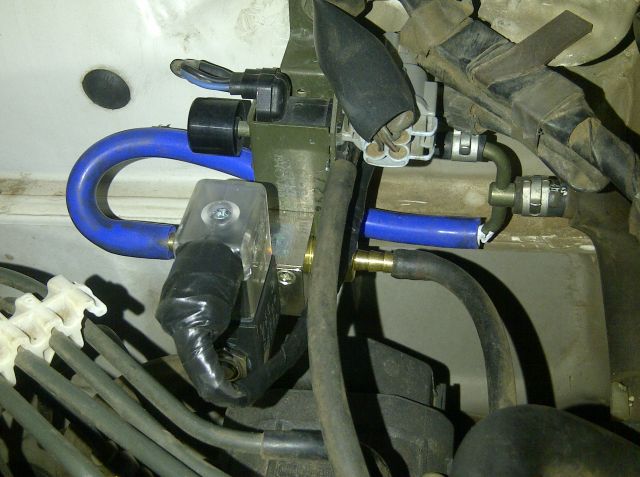

Picture 005.jpg (52.9 KiB) Viewed 1640 times

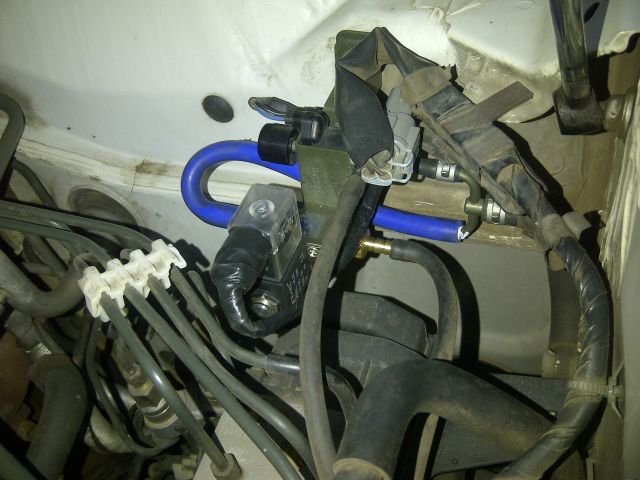

Picture 006.jpg (52.6 KiB) Viewed 1640 times

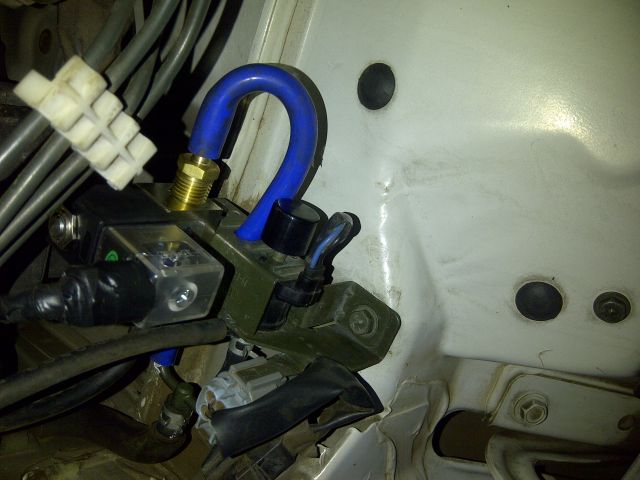

Picture 007.jpg (44.2 KiB) Viewed 1640 times

[Herrie]

Baie dankie Johan! Dit maak dinge baie maklik om te verstaan
