Lubrication Points On 4.8 When Servicing

Post by Onematch »

Please can someone indicate what areas should be lubricated when servicing a Patrol 4.8, and if possible what grease to use.

Many thanks Rob

User avatar
Peter Connan
Moderator
Posts: 6552
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 859 times
Been thanked: 741 times

Re: Lubrication Points On 4.8 When Servicing

Post by Peter Connan »

There should be 10 grease nipples under the car Rob.

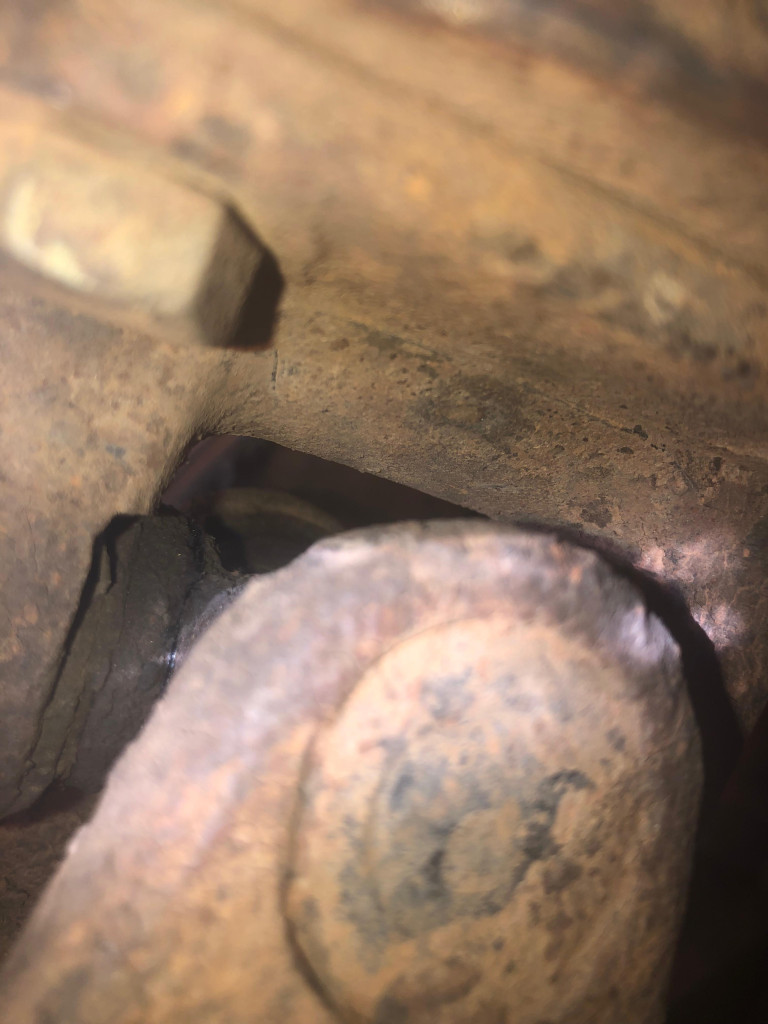

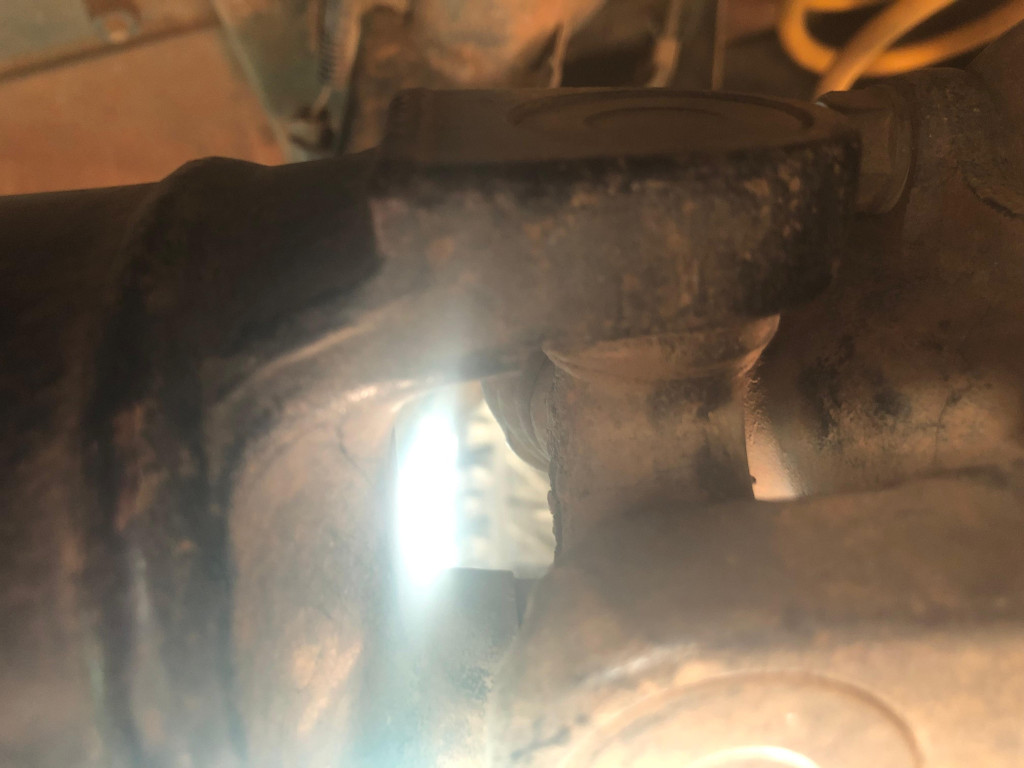

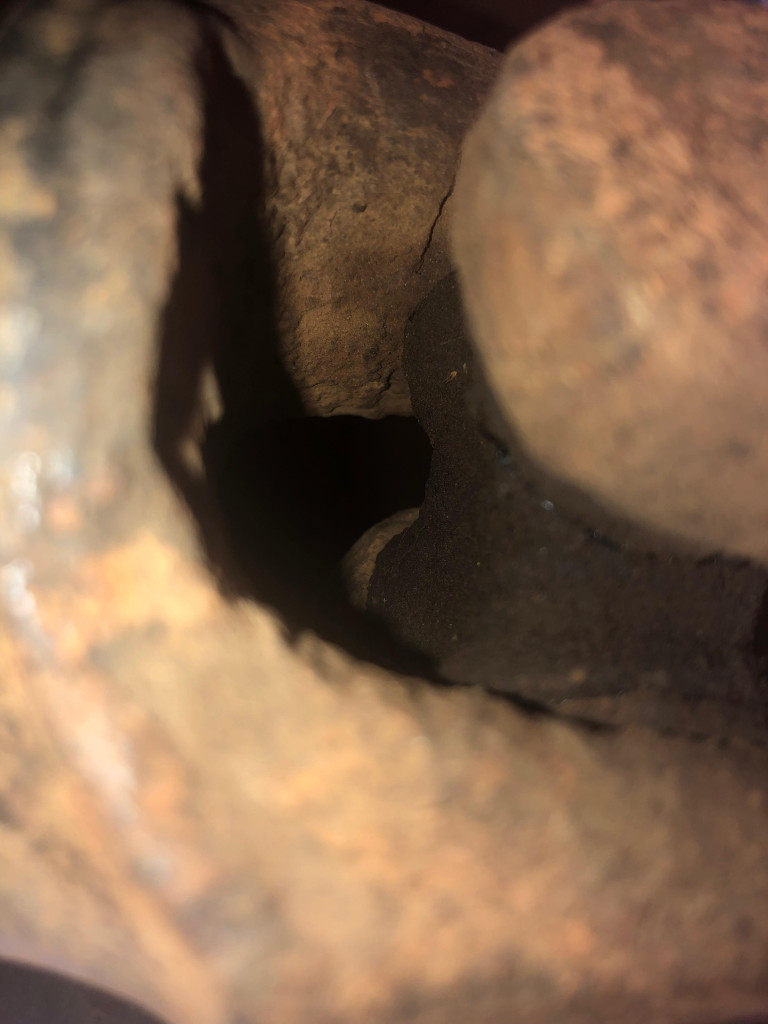

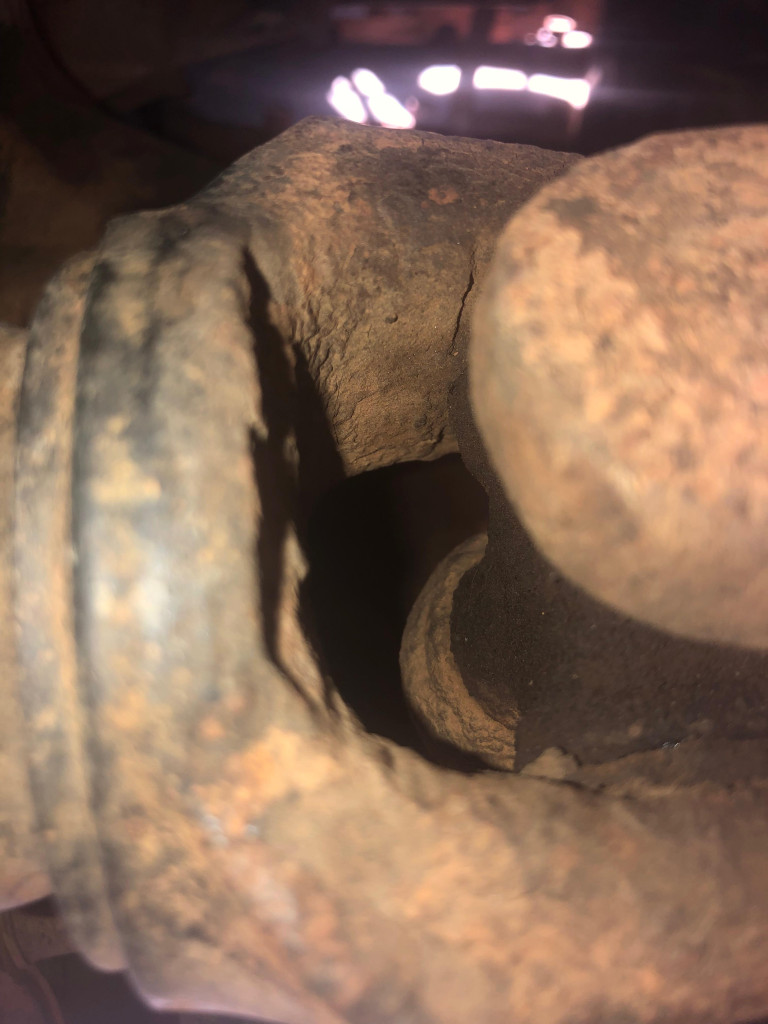

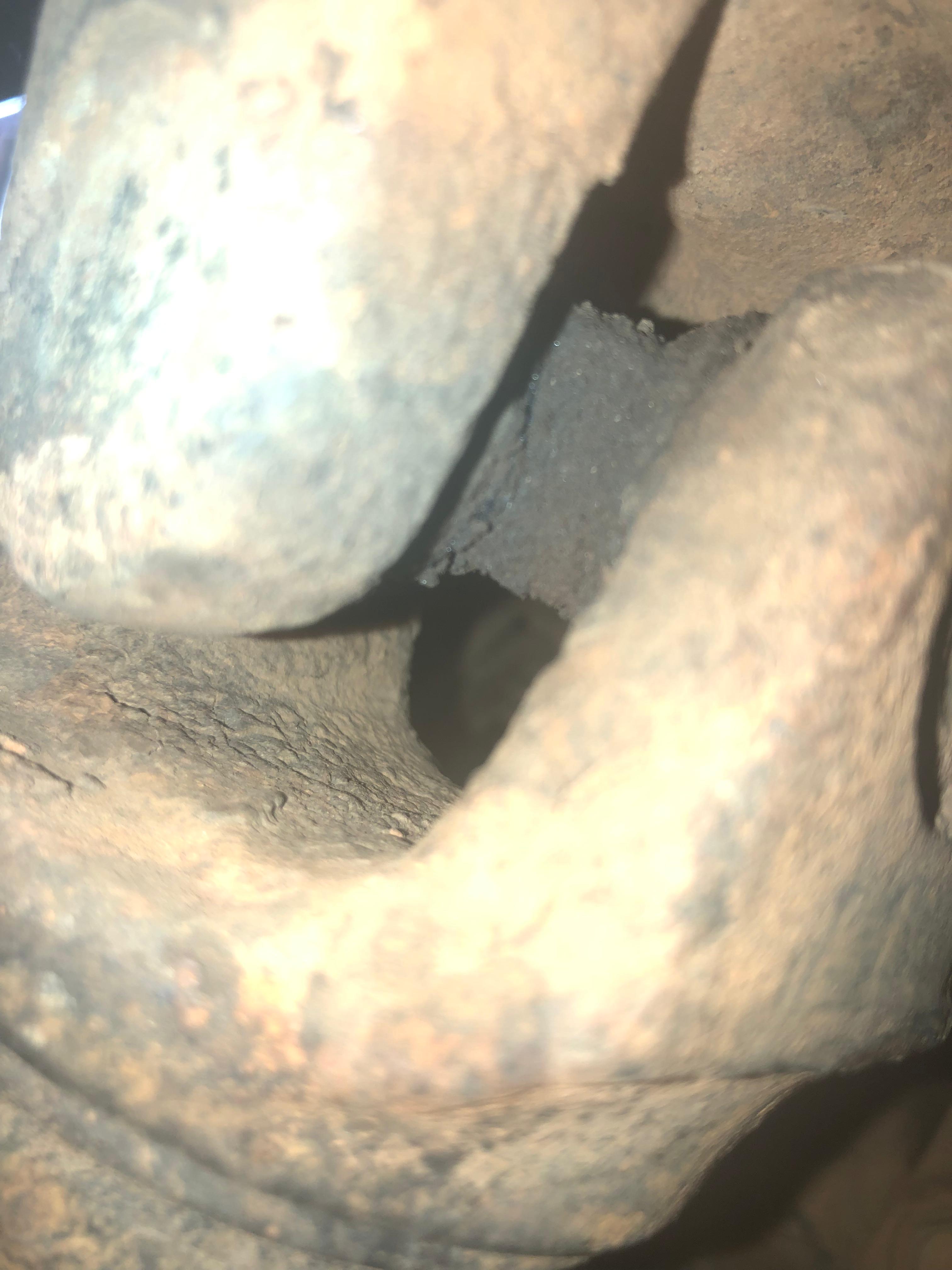

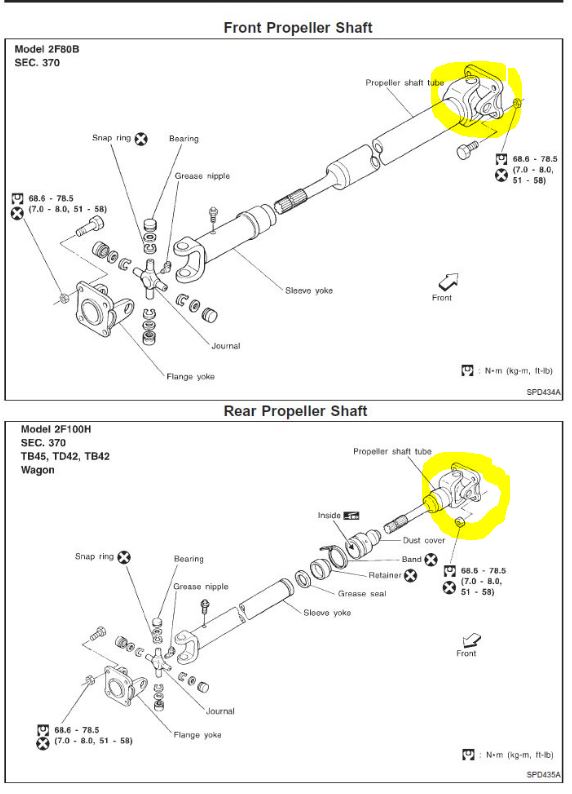

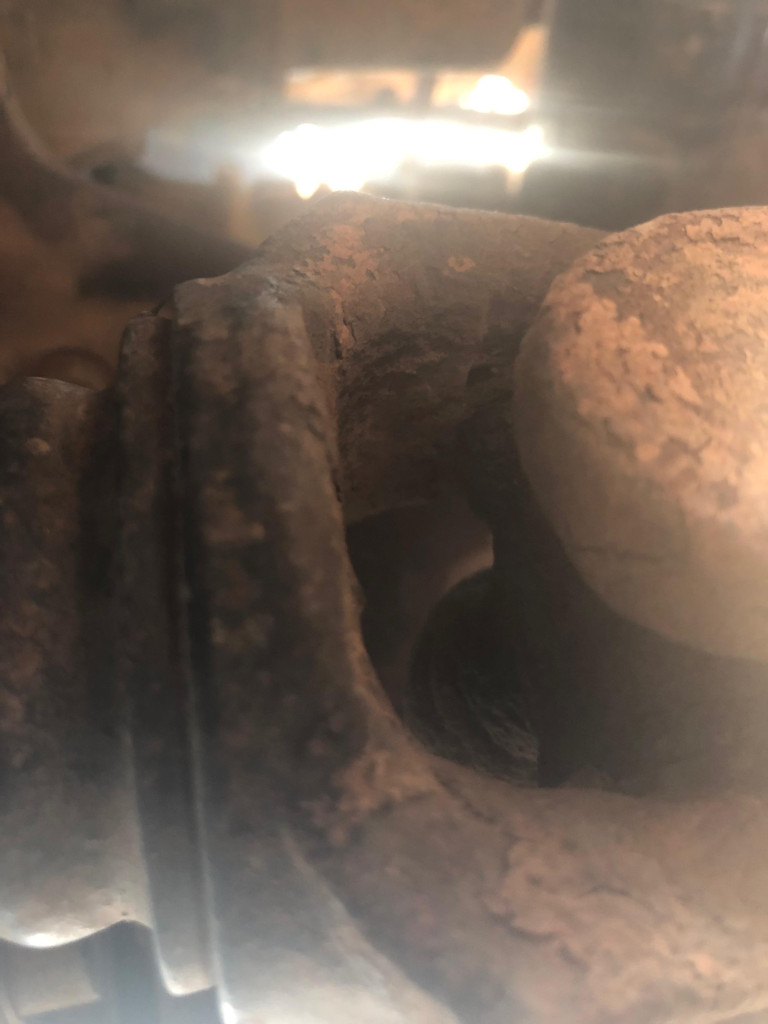

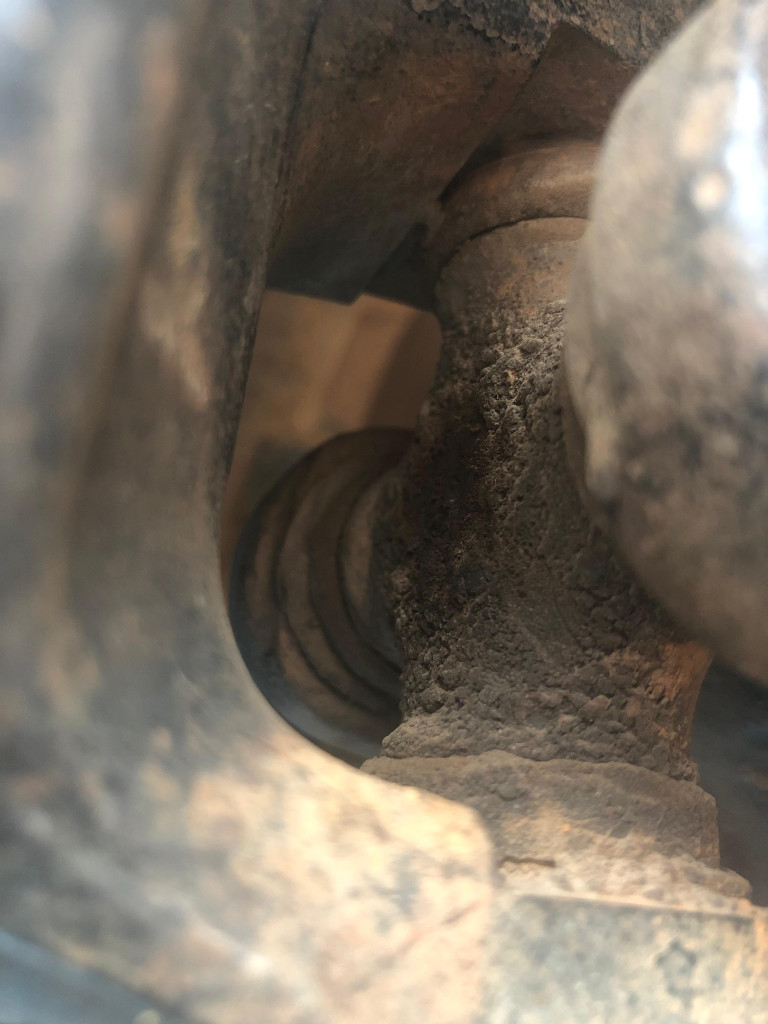

Three in each prop-shaft, and four on the steering (one per tie rod end).

I think they all use Lithium soap-based grease (IE normal multi-purpose grease).
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
Russ Kellermann
Patrolman 1000+
Patrolman 1000+
Posts: 1194
Joined: 01 Feb 2010 22:39
Full Name: Russell Kellermann
Nickname: Russell Kellermann
Home Town: Cape Town now, grew up on the Wild Coast.
Current 4x4: 2007 Patrol 4.2D Pickup
2005 Patrol 4.2TD Wagon
Home Language: English
Has thanked: 8 times
Been thanked: 85 times

Re: Lubrication Points On 4.8 When Servicing

Post by Russ Kellermann »

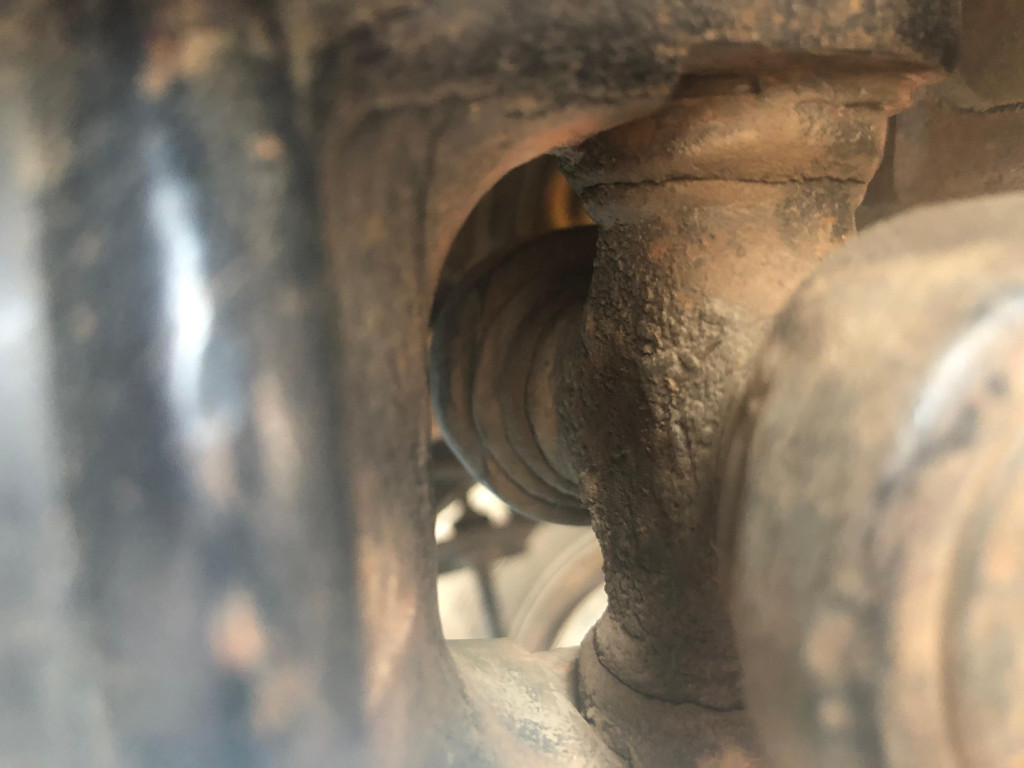

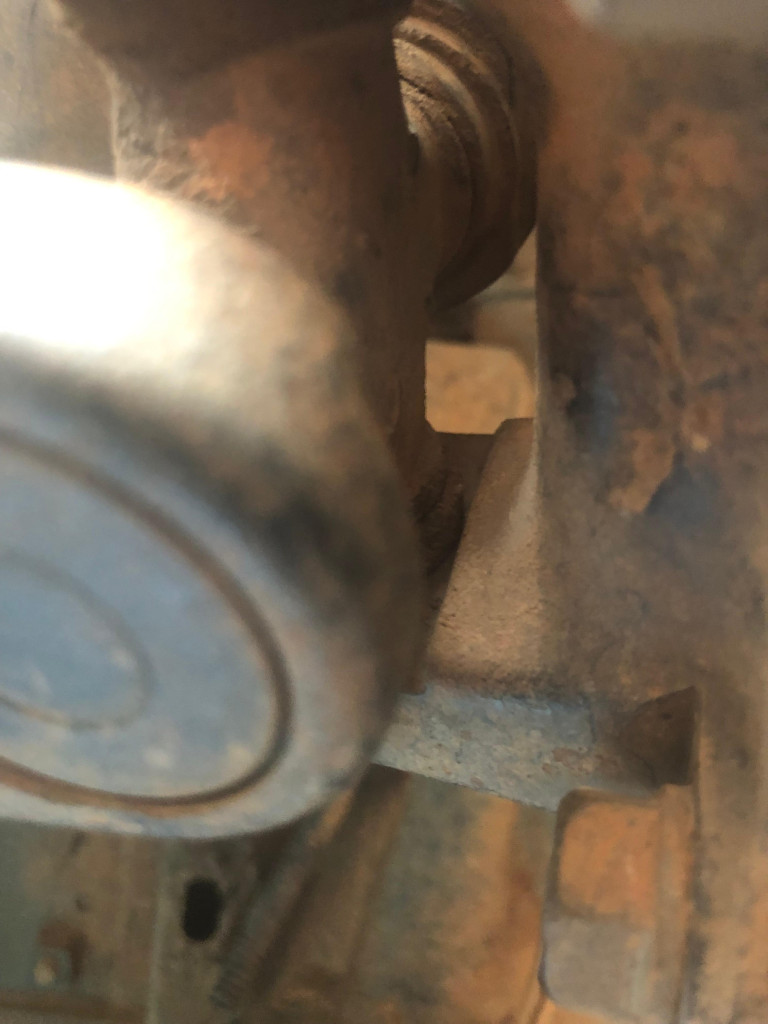

If im not mistaken most GU's have sealed tie rod ends. So you may only find zerk nipples on the prop shafts.

If you running aftermarket front end gear then thats a different story.
'07 Patrol Pickup TD42 N/A,285's KM2,3" Lift,ONCA Bars,Warn High Mount,Alu Canopy, and some other Stuff.
