DIY Roof Rack

Post by Marino4x4 » 13 Aug 2013 12:00

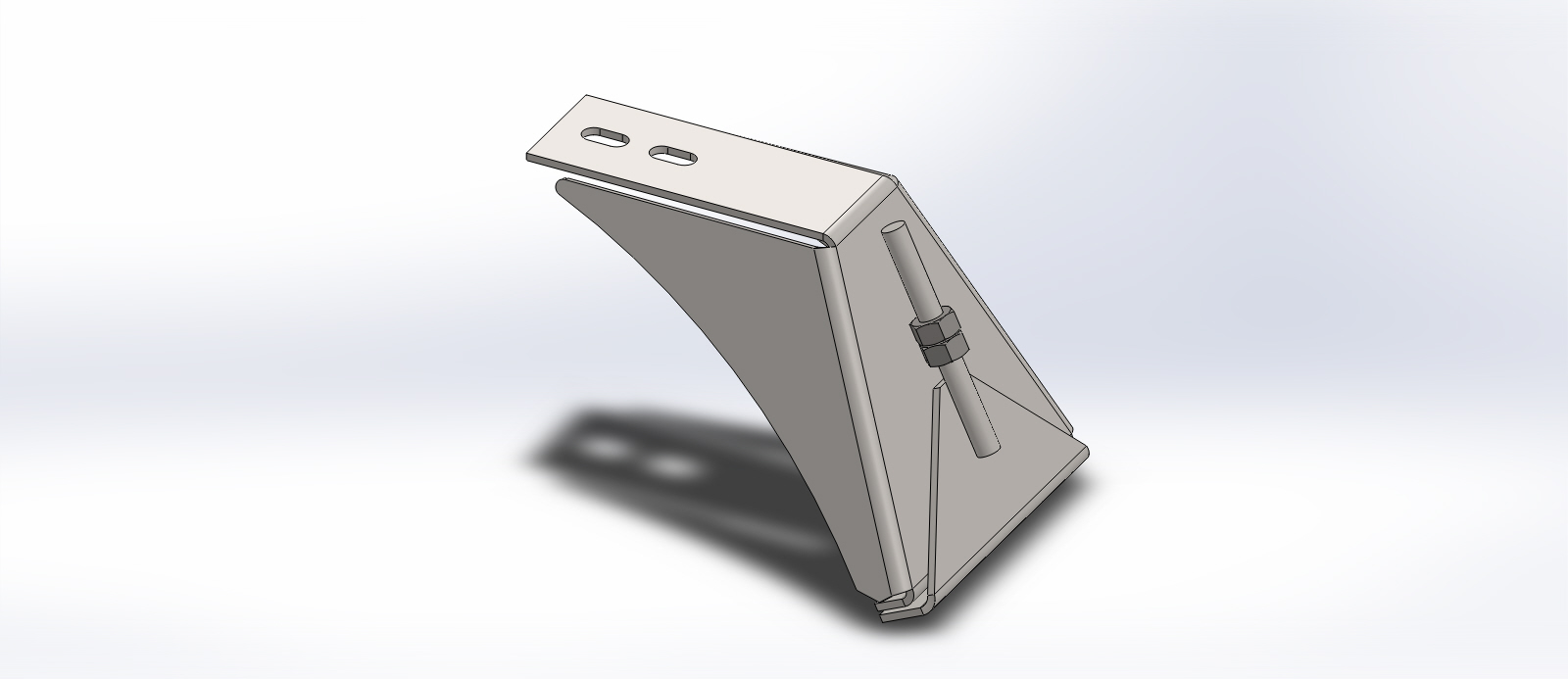

I am thinking about building myself a roof rack. I looked around at the roof connectors or uprights or what ever they are called. All of them is quite expensive. I designed the connectors in the picture below and would like to know if you have any inputs to the design. It is made from 2 mm steel and will be powder coated. I am going to manufacture 8 of them. I got a quote of R376 for the 8 sets, R47 a set with out powder coating. Not to bad compared to what some of the shops ask.
I am looking at using aluminium and connect-it connectors to build the frame if the roof rack. I am still figuring out how it will look like, but the rooftop tent and a few Jerry cans will fit on it. Do any one have experience with building a roof rack with connect-it sections of have any advice? It will assist me allot.

Thanks
Patrol 4.5 GL 1998

Terrain 4X4 Parts

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5893
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 240 times
Been thanked: 247 times

Re: DIY Roof Rack

Post by ricster » 13 Aug 2013 12:23

That looks good mate.... Deon has made a pretty neat roof rack from that connect-it stuff. He is overseas at the moment, but will get him to post his results here when he is back !!

I have a suggestion on the "posts" or fixing brackets but will draw it up in Sketchup with a photo or two of mine which are on my rack. Will make for an easier fixing onto the roof gutters

What program did you use to do that?
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Marino4x4
Patrolman
Patrolman
Posts: 598
Joined: 19 Oct 2011 12:15
Full Name: Marinus Potgieter
Nickname: Marino4x4
Home Town: Bloemfontein
Current 4x4: Nissan Patrol
Home Language: Afrikaans
Location: Bloemfontein
Has thanked: 16 times
Been thanked: 76 times

Re: DIY Roof Rack

Post by Marino4x4 » 13 Aug 2013 13:39

We use Solid Works at work. Did the post is sheet metal. Unfold easy for the laser cutting. And can do stress analysis to. I will appreciate any input. Thanks
Patrol 4.5 GL 1998

Terrain 4X4 Parts

User avatar
Stefan
Moderator
Posts: 1896
Joined: 28 Apr 2009 08:43
Full Name: Stefan de Villiers
Nickname: Stefan
Home Town: Bothasig, Cape Town
Current 4x4: 2002 3.0 GL Patrol
Home Language: Afrikaans
Location: Cape Town
Has thanked: 163 times
Been thanked: 44 times
Contact:

Re: DIY Roof Rack

Post by Stefan » 13 Aug 2013 13:58

Looks really great! My only input would be that the angle of the gutter is more vertical, so your foot would bend the gutter; i.e. the angle of the footplate must be less than 90 (i.e. parallel to the top (flat) part of the bracket)

User avatar
Peter Connan
Moderator
Posts: 5371
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 277 times
Been thanked: 350 times

Re: DIY Roof Rack

Post by Peter Connan » 13 Aug 2013 16:41

I think you are onto something here.

I am a bit concerned about using connect-it for the frame, because a roof rack works pretty hard. Also, one of the major advantages of the commercial roof racks are the grooves in the stringers that take weld (square) nuts for fixing stuff on.

However, with your feet one could potentially buy just about any second-hand rack (they often go for about R2K), throw away the feet, fit yours and off you go.

What are you planning to add for the nuts to tighten to, and have you possibly looked at African Outback's method? It will cost a couple of more bends, but I think it works more easily?

I once had to fix a broken home-made roof rack in Maun on a Saturday afternoon, and believe me if we weren't very lucky it could have put a serious dent in our trip...
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
ama-glug-glug
Senior Member
Senior Member
Posts: 156
Joined: 08 Jun 2011 19:38
Full Name: Deon Wilmans
Nickname: Deon
Home Town: Alberton
Current 4x4: Patrol GQ 1996 (1st 4x4) in the market
Nissan Navara D23
Home Language: English/Afrikaans
Location: Alberton
Been thanked: 6 times

Re: DIY Roof Rack

Post by ama-glug-glug » 13 Aug 2013 19:48

Hi Marinus,

Ek het in 3 aande my dakrak aanmekaar gesit met connect-it's. Ek het iemand gekry wat so 'n paar plekke gesweis het om die voete aan te sit. Ongelukkig nie fotos geneem nie, maar sal die naweek 'n paar fotos neem en opsit. My voete is nie naasteby so netjies soos joune in die skets nie, maar hulle werk orraait.
Alles hang af van hoeveel jy wil laai op die rak. Myne word gebruik vir baie ligte werk, so die 25mm sq tubing en connectors werk goed. Ek het verder 'n 1.5mm alu vastrap opgesit om te versterk. Ek moet nog die "cargo tracks" opsit sodat ek alles behoorlik kan vasmaak. Ek was die afgelope naweek in die Pilansberg en nog net 'n paar sakke hout, buite vuurmaakplek en gasbottel gedra en hy hou nog.
So as jy nie wil swaar gaan laai nie, dink ek jy is op die regte spoor. Die konsep is baie lig en kan permanent op die voertuig bly.

Deon

User avatar
ama-glug-glug
Senior Member
Senior Member
Posts: 156
Joined: 08 Jun 2011 19:38
Full Name: Deon Wilmans
Nickname: Deon
Home Town: Alberton
Current 4x4: Patrol GQ 1996 (1st 4x4) in the market
Nissan Navara D23
Home Language: English/Afrikaans
Location: Alberton
Been thanked: 6 times

Re: DIY Roof Rack

Post by ama-glug-glug » 18 Aug 2013 21:23

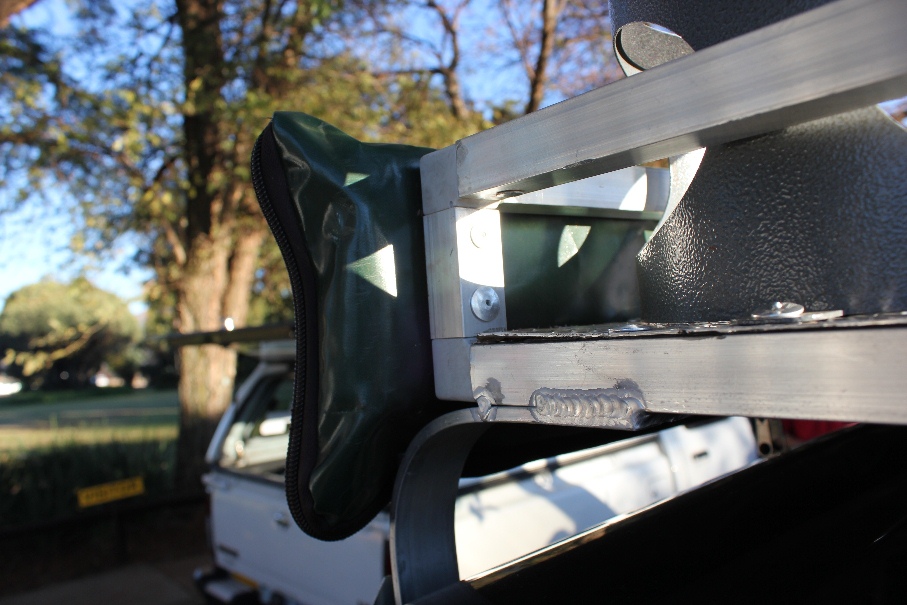

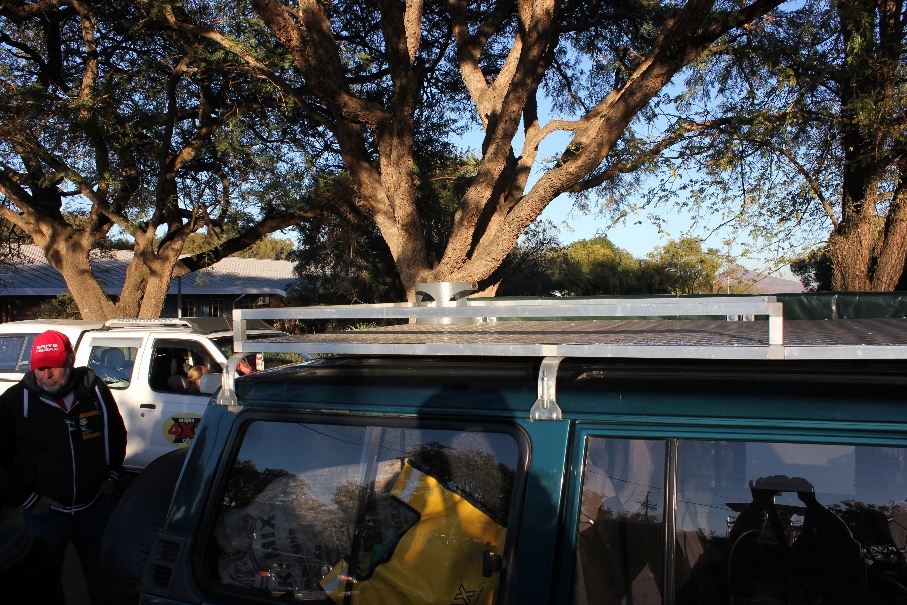

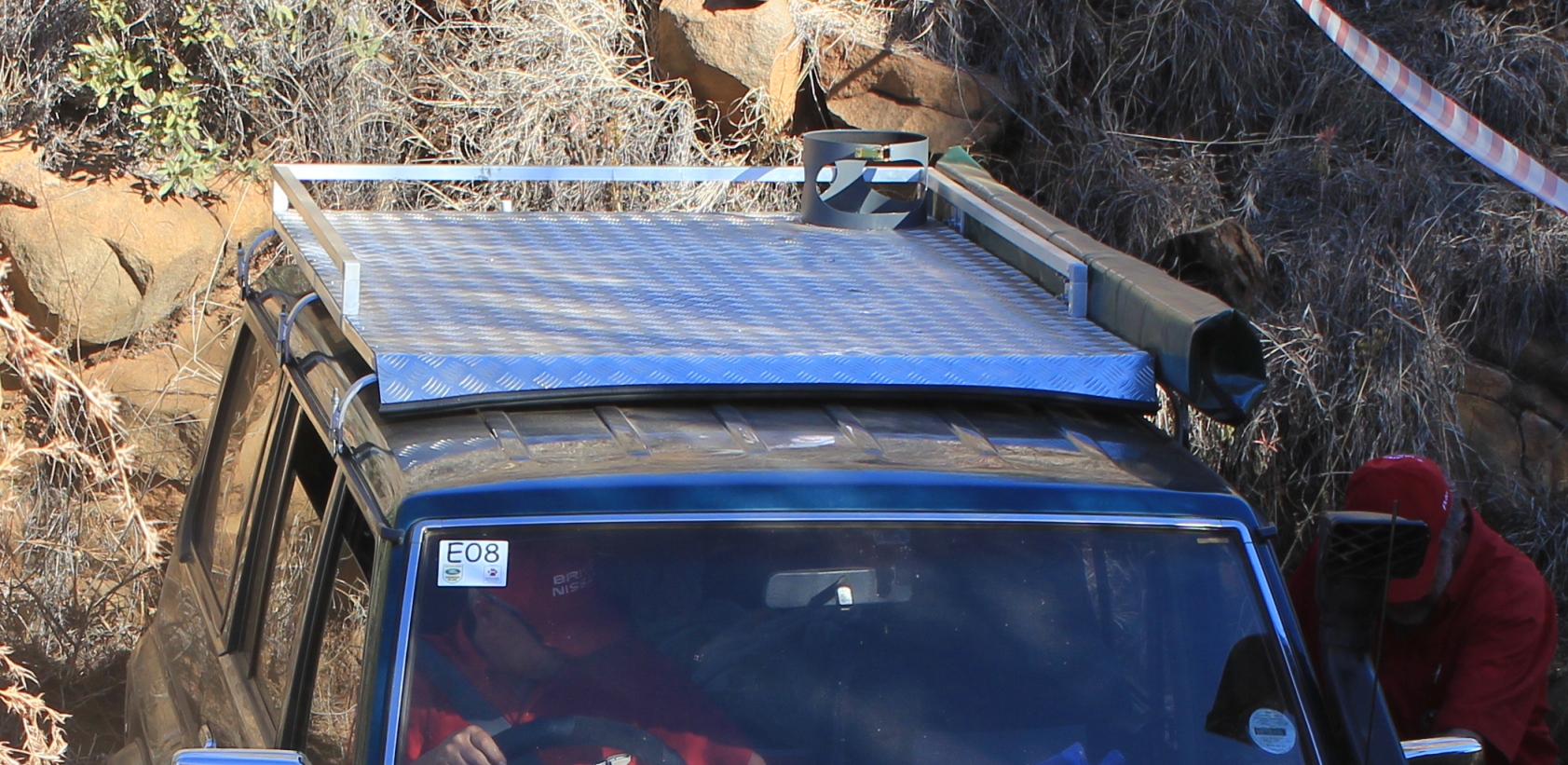

Fotos soos belowe.

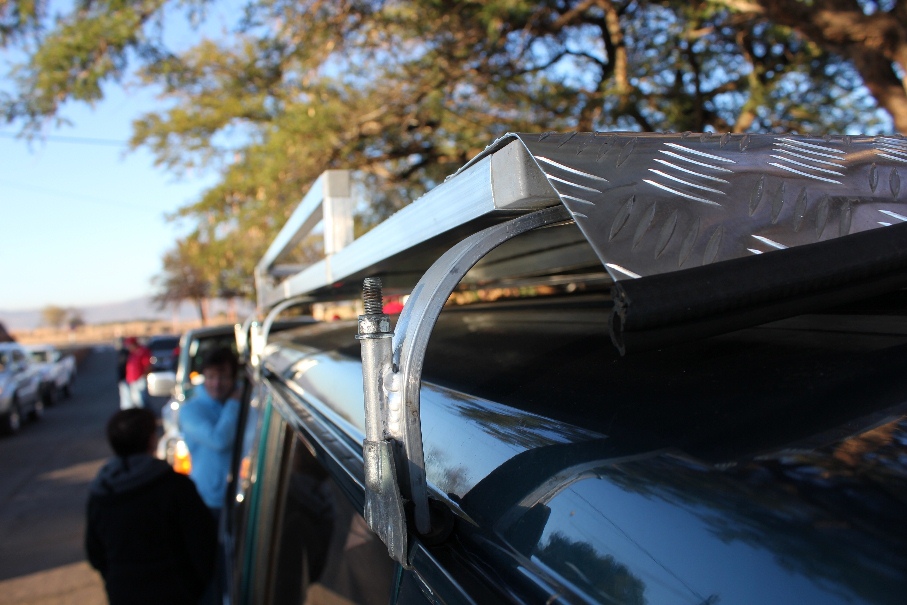

Voete is 6mm aluminium flatbar met petrolpyp onder vir beskerming.

Hoop dit help 'n bietjie.

User avatar
Marino4x4
Patrolman
Patrolman
Posts: 598
Joined: 19 Oct 2011 12:15
Full Name: Marinus Potgieter
Nickname: Marino4x4
Home Town: Bloemfontein
Current 4x4: Nissan Patrol
Home Language: Afrikaans
Location: Bloemfontein
Has thanked: 16 times
Been thanked: 76 times

Re: DIY Roof Rack

Post by Marino4x4 » 19 Aug 2013 08:51

Dankie Deon

Sal verseker help. Ek speel nog bietjie met die voetstukke rond. Probeer die hoeke reg te kry en so. Tyd is net bietjie min en was 3dae in die bed laasweek met griep. Sal die week hopelik die projek weer aan die gang kry. Sal foto's opsit soos ek vorder.

Groete
Patrol 4.5 GL 1998

Terrain 4X4 Parts

User avatar
ama-glug-glug
Senior Member
Senior Member
Posts: 156
Joined: 08 Jun 2011 19:38
Full Name: Deon Wilmans
Nickname: Deon
Home Town: Alberton
Current 4x4: Patrol GQ 1996 (1st 4x4) in the market
Nissan Navara D23
Home Language: English/Afrikaans
Location: Alberton
Been thanked: 6 times

Re: DIY Roof Rack

Post by ama-glug-glug » 19 Aug 2013 16:51

Jammer om te hoor. Hoop jy voel baie beter. :thumbup:
Met sterker voete behoort jy 'n swaarder vrag te kan dra as myne. Voorspoed met die projek. QQQ

User avatar
Marino4x4
Patrolman
Patrolman
Posts: 598
Joined: 19 Oct 2011 12:15
Full Name: Marinus Potgieter
Nickname: Marino4x4
Home Town: Bloemfontein
Current 4x4: Nissan Patrol
Home Language: Afrikaans
Location: Bloemfontein
Has thanked: 16 times
Been thanked: 76 times

Re: DIY Roof Rack

Post by Marino4x4 » 21 Aug 2013 16:42

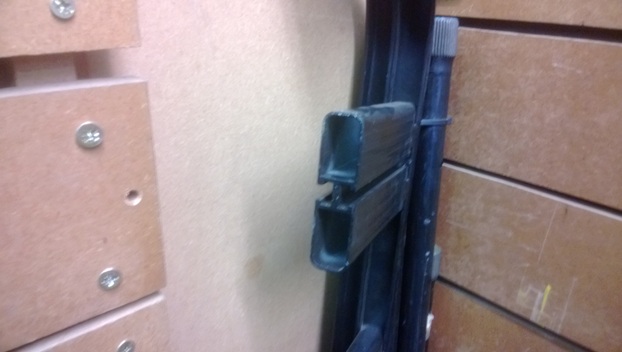

Does any body know if the Front Runner section is a standard section or is it on developed by them. I went to one of the local 4x4 shops and saw that Front Runner uses these sections. If I can get these profile it will be easier to do the roof rack with them instead of connect-it sections. I think these might be a bit "lig in die broek" for what I want to do, RTT. :thumbup:

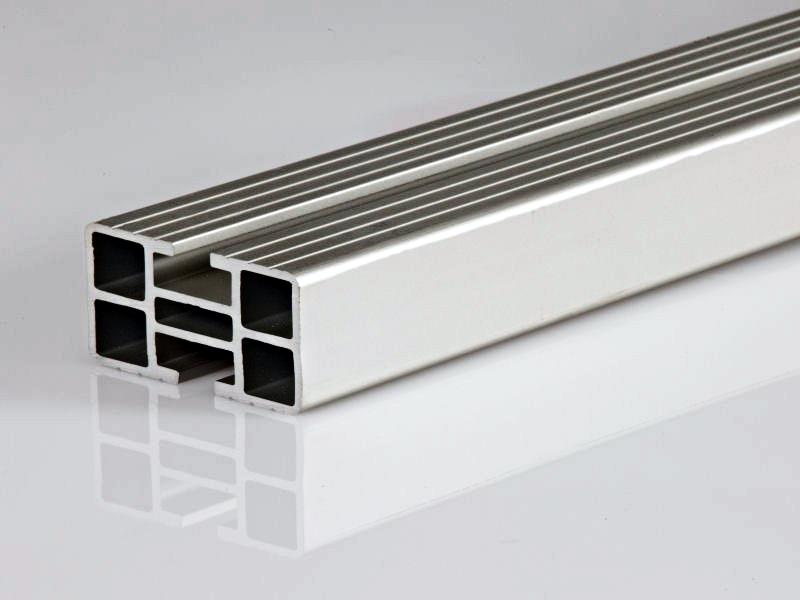

This section also looks promising if the front runner is not available.
The problem it to get these and to get these in Bloem. :surprised:

Any assistants on other sections/supplier will be off help.
