4.8L Performance upgrade options

Engines and Engine Systems
Mystical_Beast
Senior Member
Senior Member
Posts: 128
Joined: 26 Sep 2015 23:03
Full Name: Julian Hilder
Nickname: none
Home Town: Edenvale
Current 4x4: 2008 Patrol 4.8
2007 RRS 4.4 V8
Home Language: English
Has thanked: 12 times
Been thanked: 16 times

Re: 4.8L Performance upgrade options

Post by Mystical_Beast » 17 Jul 2018 21:14

[/quote]

Thanks for that info. I was also expecting about 5%-10%, which is makes me doubt the 30% increase quoted by RBTS. In any event they are what they are.

Interesting hat after your stage one you peaked at 500NM and 142KW whereas the highest i seem to read is around 318NM and 131KW. Surely that torque difference points to an issue?
[/quote]

My torque figures are at the flywheel, KW at the wheels

Mystical_Beast
Senior Member
Senior Member
Posts: 128
Joined: 26 Sep 2015 23:03
Full Name: Julian Hilder
Nickname: none
Home Town: Edenvale
Current 4x4: 2008 Patrol 4.8
2007 RRS 4.4 V8
Home Language: English
Has thanked: 12 times
Been thanked: 16 times

Re: 4.8L Performance upgrade options

Post by Mystical_Beast » 17 Jul 2018 21:17

[/quote]
Hey Tinus - did 3 runs before and 4 runs after at SAC Centurion. They were my "independent" baseline. I even did a run in 4x4 high, 3rd gear, for interest.

They were great i.t.o. service. on time, allowed me to be present and were R150 compared to R800 at one other place.
[/quote]

Carlo

I think at some point you will see that you get what you pay for.

CarloG
Senior Member
Senior Member
Posts: 95
Joined: 03 Apr 2009 06:24
Full Name: Carlo Gonzaga
Nickname: Carlog
Home Town: Johannesburg/Midrand
Current 4x4: Nissan Patrol 4.8GRX 2005
Nissan Patrol 4.8 GRX 2010 (Retired)
Hyuandai Terracan 3.6L (Retired)
Home Language: Engels
Has thanked: 5 times
Been thanked: 10 times

Re: 4.8L Performance upgrade options

Post by CarloG » 17 Jul 2018 22:03

[/quote]

Carlo

I think at some point you will see that you get what you pay for.
[/quote]
:thumbup: in principle. But in the aftermarket industry I trust very few. Price itself is definitely no guarantee of quality, nor a necessary ingredient in the equation. Happy to share the things that don't work out :oldtimer: - that's the real value of forums.
'05 Patrol 4.8L GRX
'13 Conqueror Companion
Specialsied Stumpjumper. Munga Trainee

JHB to London '07, 16000km, 39 days, by Bike
90days camping - JHB to Nairobi and back - 2014
"We travel not to escape life but for life not to escape us"

Mystical_Beast
Senior Member
Senior Member
Posts: 128
Joined: 26 Sep 2015 23:03
Full Name: Julian Hilder
Nickname: none
Home Town: Edenvale
Current 4x4: 2008 Patrol 4.8
2007 RRS 4.4 V8
Home Language: English
Has thanked: 12 times
Been thanked: 16 times

Re: 4.8L Performance upgrade options

Post by Mystical_Beast » 17 Jul 2018 22:29

Well

Id like to put that R 150.00 into perspective whilst considering all the ancillary equipment that is supposed to be hooked up to your vehicle to properly read what your vehicle is doing throughout its rev range.
Checking timing, fuel pressure, co2 mixtures etc. before even making any adjustments.

So say an average rate is R 750/hr for more specialized workshops …you’re paying for 12 minutes of attention at R150.00

That includes driving you car onto the dyno, strapping it securely, cooling fan put in place and we haven’t plugged in to the Ecu yet.

So, perhaps something to think about?

Mystical_Beast
Senior Member
Senior Member
Posts: 128
Joined: 26 Sep 2015 23:03
Full Name: Julian Hilder
Nickname: none
Home Town: Edenvale
Current 4x4: 2008 Patrol 4.8
2007 RRS 4.4 V8
Home Language: English
Has thanked: 12 times
Been thanked: 16 times

Re: 4.8L Performance upgrade options

Post by Mystical_Beast » 17 Jul 2018 22:31

In other words, I'm not sure what you are getting for R 150.00 other than revving your vehicle on a dyno and then a printout.

CarloG
Senior Member
Senior Member
Posts: 95
Joined: 03 Apr 2009 06:24
Full Name: Carlo Gonzaga
Nickname: Carlog
Home Town: Johannesburg/Midrand
Current 4x4: Nissan Patrol 4.8GRX 2005
Nissan Patrol 4.8 GRX 2010 (Retired)
Hyuandai Terracan 3.6L (Retired)
Home Language: Engels
Has thanked: 5 times
Been thanked: 10 times

Re: 4.8L Performance upgrade options

Post by CarloG » 17 Jul 2018 22:43

Mmm ... were probably in violent agreement. I went to SaC not for tuning but for a prinout of kw and Nm at the wheel. At least they offered the alternative to R800 as the only option from another supplier. Remember that I already had the car tuned for 20k and SaC were just an independent baseline test.
'05 Patrol 4.8L GRX
'13 Conqueror Companion
Specialsied Stumpjumper. Munga Trainee

JHB to London '07, 16000km, 39 days, by Bike
90days camping - JHB to Nairobi and back - 2014
"We travel not to escape life but for life not to escape us"

graham1
Senior Member
Senior Member
Posts: 287
Joined: 15 Jun 2015 17:46
Full Name: graham robertson
Nickname: graham1
Home Town: Joburg
Current 4x4: 2004 Patrol 4.8
Home Language: English
Has thanked: 1 time
Been thanked: 19 times

Re: 4.8L Performance upgrade options

Post by graham1 » 18 Jul 2018 06:41

Im just being really dumb here, but I cant work out those graphs at all.

Do you not have a simple graph showing a before and an after run taken on the same dyno?

In terms of the argument on prices and dynos, I dont see the problem with the SAC "cheap" dyno run? All you want to know is what power the car is putting to the road, no need for ECU plugging in etc. All that stuff is for when you actually want to tune the thing on the dyno. For this project we want to see a before and after power figure. Thats it.

CarloG
Senior Member
Senior Member
Posts: 95
Joined: 03 Apr 2009 06:24
Full Name: Carlo Gonzaga
Nickname: Carlog
Home Town: Johannesburg/Midrand
Current 4x4: Nissan Patrol 4.8GRX 2005
Nissan Patrol 4.8 GRX 2010 (Retired)
Hyuandai Terracan 3.6L (Retired)
Home Language: Engels
Has thanked: 5 times
Been thanked: 10 times

Re: 4.8L Performance upgrade options

Post by CarloG » 18 Jul 2018 06:51

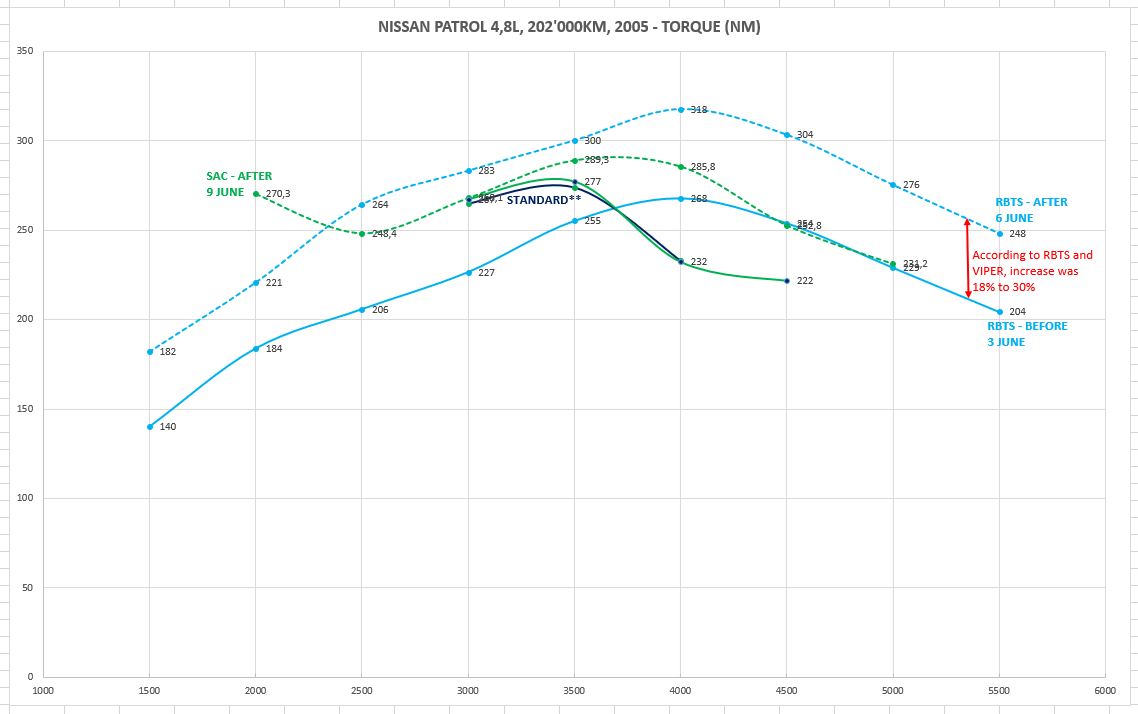

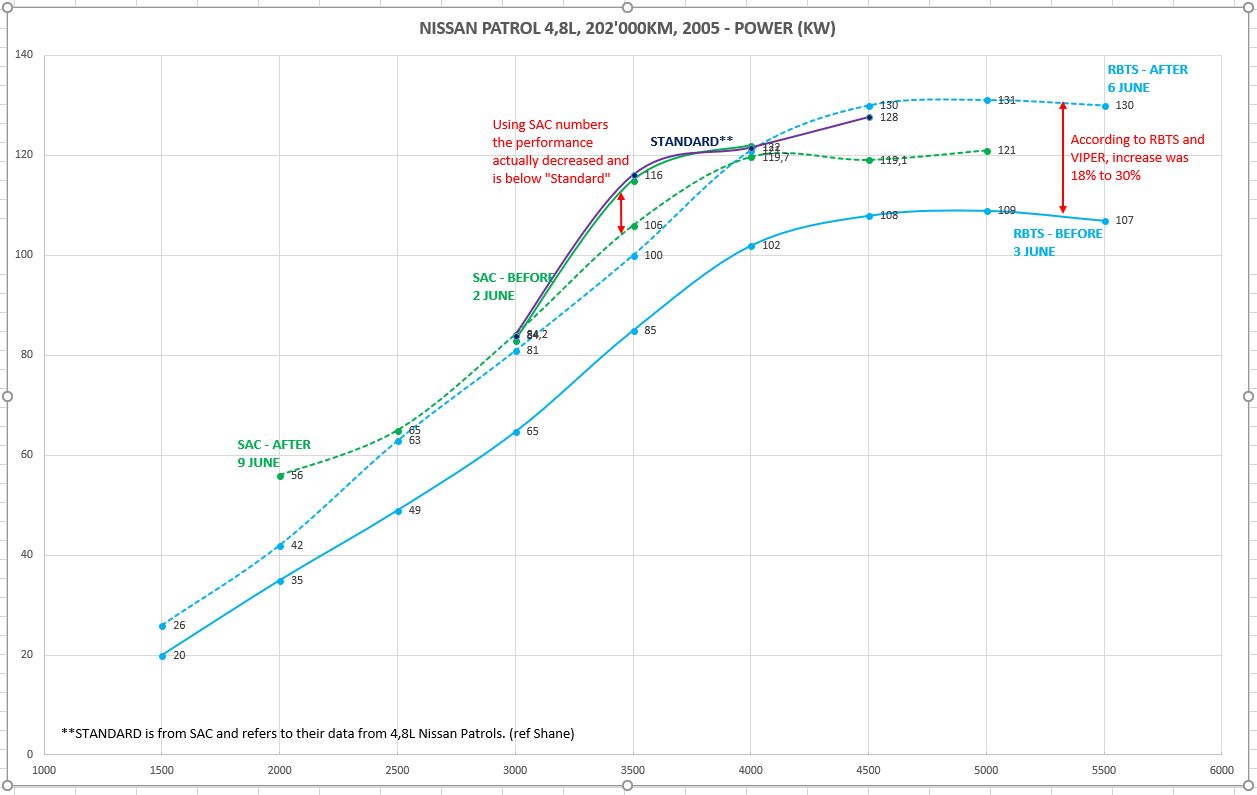

Solid Blue Line = RBTS Dyno test BEFORE
Dotted Blue line = RBTS Dyno test AFTER

Solid Green Line - SAC Centurion Dyno Test BEFORE (Its just under the purple line - the Purple line is the database that SAC Centurion has for 4,8L patrols, and is labelled "STANDARD"). The before test for some reason only captured from 3000rpm to 4500.
Dotted Green line = SAC Centurion Dyno Test AFTER

This is the KW graph
This is the NM graph
'05 Patrol 4.8L GRX
'13 Conqueror Companion
Specialsied Stumpjumper. Munga Trainee

JHB to London '07, 16000km, 39 days, by Bike
90days camping - JHB to Nairobi and back - 2014
"We travel not to escape life but for life not to escape us"

User avatar
Tinus lotz
Moderator
Posts: 7035
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 554 times
Been thanked: 286 times

Re: 4.8L Performance upgrade options

Post by Tinus lotz » 18 Jul 2018 06:59

At the end of they day bottom line is when they come with flywheel figures i start to worry .....you cant measure that so why state it...measure wheel power becouse that is what you can use

CarloG
Senior Member
Senior Member
Posts: 95
Joined: 03 Apr 2009 06:24
Full Name: Carlo Gonzaga
Nickname: Carlog
Home Town: Johannesburg/Midrand
Current 4x4: Nissan Patrol 4.8GRX 2005
Nissan Patrol 4.8 GRX 2010 (Retired)
Hyuandai Terracan 3.6L (Retired)
Home Language: Engels
Has thanked: 5 times
Been thanked: 10 times

Re: 4.8L Performance upgrade options

Post by CarloG » 18 Jul 2018 07:32

Tinus lotz wrote:
18 Jul 2018 06:59
At the end of they day bottom line is when they come with flywheel figures i start to worry .....you cant measure that so why state it...measure wheel power becouse that is what you can use
Agree - to be clear - all my numbers are at the wheel, no arithmetical adjustment for altitude, attitude or aptitude :rolling:
'05 Patrol 4.8L GRX
'13 Conqueror Companion
Specialsied Stumpjumper. Munga Trainee

JHB to London '07, 16000km, 39 days, by Bike
90days camping - JHB to Nairobi and back - 2014
"We travel not to escape life but for life not to escape us"
