Nissan Thermostat

Post by WP_Patrol » 26 Jan 2018 20:14

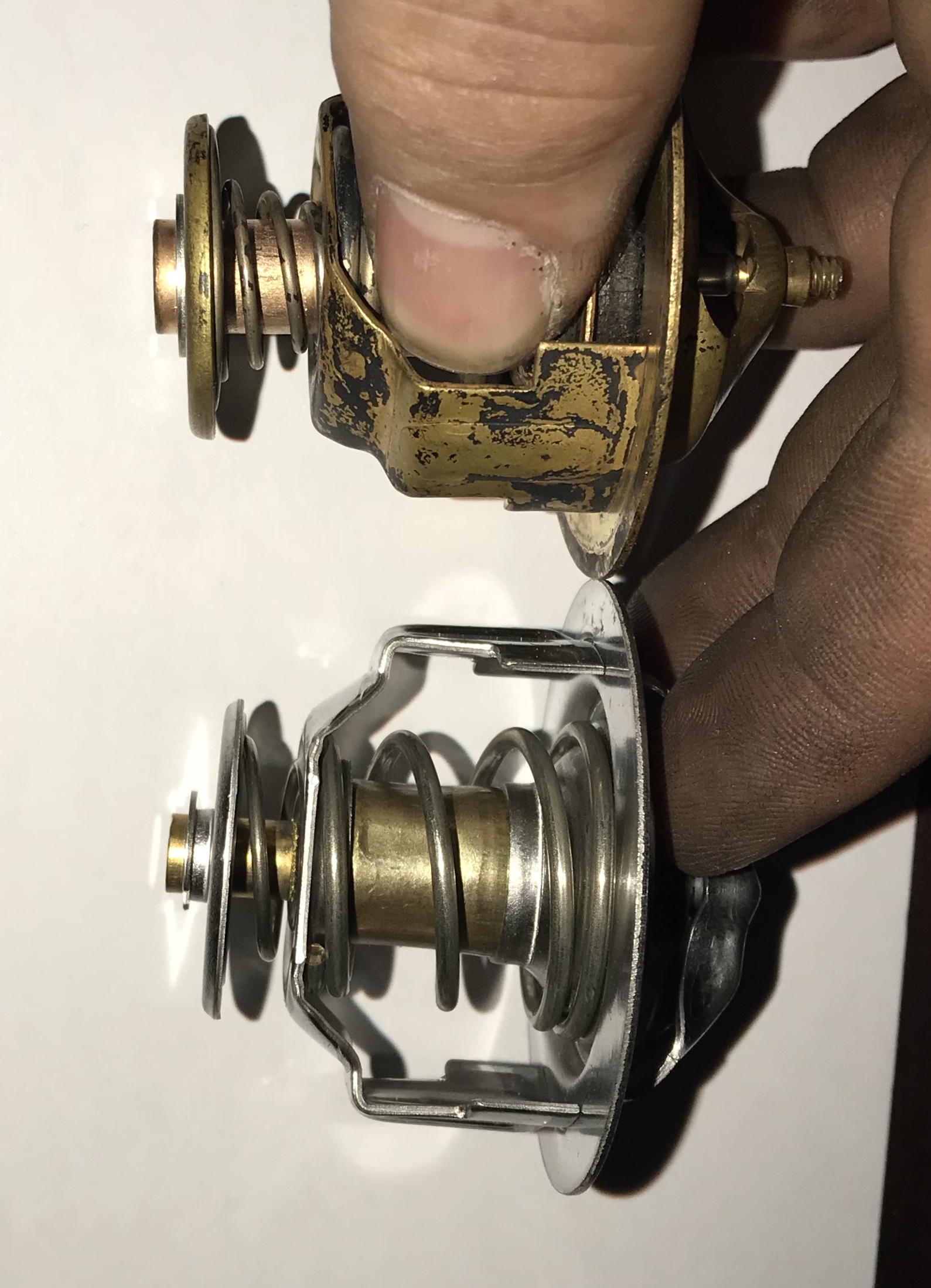

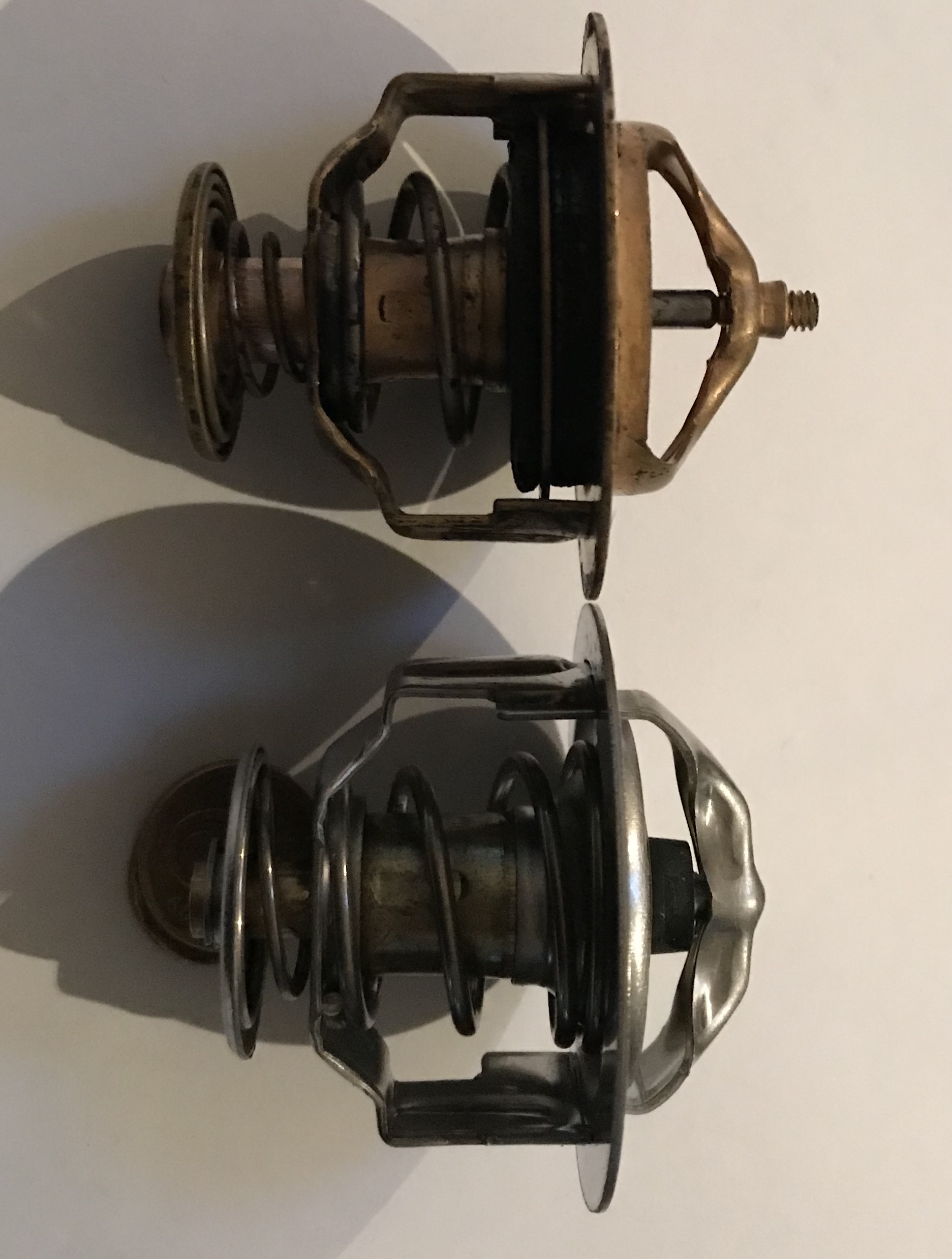

Sorry for all the questions gentlemen, I got the Nissan Thermostat today bit its shorter than the one that I removed. I am not sure if the old one was a Nissan part or fong kong so not sure which is correct.

Would you guys please advise.
Attachments

User avatar
Michael
Moderator
Posts: 2568
Joined: 05 Mar 2014 14:39
Full Name: Michael
Nickname: Steyn
Home Town: Centurion
Current 4x4: Patrol GU 4.2 Turbo Diesel
Home Language: Afrikaans
Location: Centurion, PTA
Has thanked: 151 times
Been thanked: 249 times

Re: Nissan Thermostat

Post by Michael » 26 Jan 2018 21:23

Nope, looks good.
The old one is a non Nissan thermostat
"The Just shall live by Faith" Rom1:17

Check out my build here My Patrol
And my engine rebuild here mostly engine related stuff

User avatar
Peter Connan
Moderator
Posts: 5293
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 248 times
Been thanked: 333 times

Re: Nissan Thermostat

Post by Peter Connan » 27 Jan 2018 07:00

Just check that it does reach that bottom seat!
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
universalmonkey
Newbie
Newbie
Posts: 6
Joined: 10 Dec 2016 18:52
Full Name: Jacques Erasmus
Nickname: Jacques
Home Town: Ruimsig
Current 4x4: Nissan Patrol 1998
Home Language: Afrikaans
Has thanked: 3 times
Contact:

Re: Nissan Thermostat

Post by universalmonkey » 23 Jul 2018 15:45

Michael wrote:
26 Jan 2018 21:23
Nope, looks good.
The old one is a non Nissan thermostat
I have completely removed mine. Will this cause any major problems? If so where is best (cheapest) place to get a new one?

Nissan Patrol
Petrol 1998, 4.5 GRX

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5798
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 222 times
Been thanked: 241 times

Re: Nissan Thermostat

Post by ricster » 23 Jul 2018 15:59

Not the best thing on a Patrol. I know the TD42 diesels are a little more water temp sensitive, but it will take a hell of a lot longer to get up to operating temp.

Not sure what the part number is for the petrol Patrol. Maybe someone on here can help with that info
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
universalmonkey
Newbie
Newbie
Posts: 6
Joined: 10 Dec 2016 18:52
Full Name: Jacques Erasmus
Nickname: Jacques
Home Town: Ruimsig
Current 4x4: Nissan Patrol 1998
Home Language: Afrikaans
Has thanked: 3 times
Contact:

Re: Nissan Thermostat

Post by universalmonkey » 23 Jul 2018 16:05

ricster wrote:
23 Jul 2018 15:59
Not the best thing on a Patrol. I know the TD42 diesels are a little more water temp sensitive, but it will take a hell of a lot longer to get up to operating temp.

Not sure what the part number is for the petrol Patrol. Maybe someone on here can help with that info
Thanks! Yes I have also been having some regular overheating issues because of a leak somewhere - I'm sure - and the removal might have just accelerated the overheating issue...

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5798
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 222 times
Been thanked: 241 times

Re: Nissan Thermostat

Post by ricster » 23 Jul 2018 16:35

I'd replace the rad cap first off with the correct temp cap, and definitively concider that it could be that the radiator is blocked up with the rusty bits and efficiency is down to nothing. I would do a good clean out of the whole cooling system first, maybe at a place like Silvertons and do the fresh antifreeze/coolant thing and see if it sorts it out, with a new cap of course.
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
universalmonkey
Newbie
Newbie
Posts: 6
Joined: 10 Dec 2016 18:52
Full Name: Jacques Erasmus
Nickname: Jacques
Home Town: Ruimsig
Current 4x4: Nissan Patrol 1998
Home Language: Afrikaans
Has thanked: 3 times
Contact:

Re: Nissan Thermostat

Post by universalmonkey » 23 Jul 2018 16:42

ricster wrote:
23 Jul 2018 16:35
I'd replace the rad cap first off with the correct temp cap, and definitively concider that it could be that the radiator is blocked up with the rusty bits and efficiency is down to nothing. I would do a good clean out of the whole cooling system first, maybe at a place like Silvertons and do the fresh antifreeze/coolant thing and see if it sorts it out, with a new cap of course.
Thanks for the response and advice! Do you suggest the replacement of the radiator cap because of age and wear and tear? I actually don't even know whether this is an original Patrol Radiator as it was replaced about 6 years ago?
I'll post a photo to get expert feedback.

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5798
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 222 times
Been thanked: 241 times

Re: Nissan Thermostat

Post by ricster » 23 Jul 2018 16:43

The other solution you could try is Graham from G-Tech. He is in Valhalla though, but he works on MANY forum members Patrols here. The man is a GURU when it comes to petrol patrols ( well he owns 1... actually 2 now I think) and knows his stuff.
and Michael here is the diesel guru, so either one can help you out.
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5798
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 222 times
Been thanked: 241 times

Re: Nissan Thermostat

Post by ricster » 23 Jul 2018 16:47

Hmmm... yeah pics will definitively help. but that radiator cap only needs to just not work 100% for the temps to go off their rocker. There is of course another potential fault. Your viscous fan or hub may not be working properly. I've replaced mine twice already, and fan blades. I have actually seen a fan blade that was fitted backwards. Actually it was with Graham ( G-Tech) who spotted the problem on someones car and rectified it in the bush while on a trail with the Nissan 4x4 Club years back
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD
