Bonnet for my 2008 Partol

mvcoller
Senior Member
Senior Member
Posts: 196
Joined: 07 Apr 2009 07:13
Full Name: Malcolm van Coller
Nickname: mvcoller
Home Town: Kensington, Jhb
Current 4x4: 2008 3.0 Di Patrol GL
and
2011 2.5 Di Pathfinder LE
Home Language: Afr & Eng
Location: Kensington, Jhb
Has thanked: 3 times
Been thanked: 35 times
Contact:

Re: Bonnet for my 2008 Partol

Post by mvcoller » 16 Dec 2017 12:29

No, I am still running the standard bonnet with the air scoop blocked from the inside.

It just looks a bit silly...

User avatar
biggles
Senior Member
Senior Member
Posts: 431
Joined: 18 Nov 2013 05:17
Full Name: Steven
Nickname: Steve
Home Town: Durbanville
Current 4x4: GUII Patrol 4.8
Home Language: English
Has thanked: 13 times
Been thanked: 44 times

Re: Bonnet for my 2008 Partol

Post by biggles » 17 Dec 2017 11:10

Just a note on underbonnet temperatures. They can get abnormally high without influencing the engine water temperature. But they can damage/ shorten the life of other things under your bonnet. Dual batteries for example last longer in a cooler environment or the crank battery for that matter.

I would leave it unblocked, it will drop the air temp around the engine something...
With great Power comes Great Fuel Consumption
:layrubber:

User avatar
Alex Roux
Patrolman 1000+
Patrolman 1000+
Posts: 2584
Joined: 11 Jul 2011 10:54
Full Name: Alexander Roux
Nickname: Witblits
Home Town: Johannesburg
Current 4x4: 2004 GU 3TDi (Lexus) - aka "Witblits"
1996: GQ TB48 conversion - aka "Skilpad"
1993: GQ SWB TB42 - aka "Shortie"
Home Language: Afrikaans
Has thanked: 41 times
Been thanked: 131 times

Re: Bonnet for my 2008 Partol

Post by Alex Roux » 17 Dec 2017 17:38

What is so bad about “excess” underbonnet air?
If anything it should help cool underbonnet temps?

After the Lexus conversion in 2011 I have kept the 3D scoop on. It has never been an issue. So why block it off?
Skilpad & Shortie

User avatar
Peter Connan
Moderator
Posts: 5226
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 235 times
Been thanked: 322 times

Re: Bonnet for my 2008 Partol

Post by Peter Connan » 18 Dec 2017 05:05

Never looked at what shape it is, but if possible it would probably be more efficient at venting hot air to turn the scoop around so that the opening faces backwards?
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
hugejp
Patrolman 1000+
Patrolman 1000+
Posts: 1411
Joined: 21 Oct 2014 21:01
Full Name: JP Viviers
Nickname: Oupoot
Home Town: JHB
Current 4x4: PATROL COLLECTION
2004 4.8 GRX "Tinkerbell"
2003 4.2 tdi GRX "The Coal Roller"
Home Language: Half & Half
Has thanked: 101 times
Been thanked: 68 times

Re: Bonnet for my 2008 Partol

Post by hugejp » 18 Dec 2017 08:49

Basically turning it into a cowl induction set up?

https://itstillruns.com/pros-cowl-induc ... 71485.html
----------------------------------------------------------------------

You CAN with a NISSAN!

Jy KAN met 'n DATSUN!

Clem
Patrolman
Patrolman
Posts: 921
Joined: 19 Jun 2013 15:16
Full Name: Clem Daniel
Nickname: Clem
Home Town: Johannesburg
Current 4x4: Patrol 4.8
Home Language: English
Has thanked: 31 times
Been thanked: 28 times

Re: Bonnet for my 2008 Partol

Post by Clem » 18 Dec 2017 08:59

I just learned something new!

mvcoller
Senior Member
Senior Member
Posts: 196
Joined: 07 Apr 2009 07:13
Full Name: Malcolm van Coller
Nickname: mvcoller
Home Town: Kensington, Jhb
Current 4x4: 2008 3.0 Di Patrol GL
and
2011 2.5 Di Pathfinder LE
Home Language: Afr & Eng
Location: Kensington, Jhb
Has thanked: 3 times
Been thanked: 35 times
Contact:

Re: Bonnet for my 2008 Partol

Post by mvcoller » 18 Dec 2017 13:15

It is shaped so that it cannot be put on back to front.

I used to race motor cars (classic Alfas) and won the championship 3 years running for classic marque cars (pre 1975 street legal cars) in a 1969 1750 Berlina. In all those years of racing, I learnt a lot about cooling. I managed the cooling so well that I ran my Berlina with a standard radiator without a fan because I understood the dynamics of cooling of a vehicle's engine and also because a fan robs an engine of power. This included sometimes standing idling and even revving on the grid for sometimes as long as 5 minutes.... (see a picture of this car at Zwartkops at the bottom of this post)

One important factor is to block off as much airflow from getting into the engine bay without it first going through a cooling device such as a radiator and/or an intercooler. That is my reasoning. Chris from Cirrus also advised me to close the intake off or block it, as his experience taught him the same principal.

Many years ago, Basil Green fitted a Mustang V8 engine into the Ford Granada Ghia and called it a Ford Granada V8 Perana. Ford USA's head honcho was so impressed, he wanted to acquired one for himself, but Basil Green refused to sell him one at that stage.

The problem was that the V8 Granada overheated and no matter how big a radiator and how many electric fans they fitted, they could not solve the problem. In fact, the fans made it overheat even sooner!!

After many months they eventually found the problem, and a simple deflection plate above the radiator solved the problem. Air takes the route of least resistance, that is an undisputed fact. So what does that have to do with the problem you may ask?

There was quite a gap (for various structural reasons) between the top of radiator and the bonnet. It let more air into the engine bay over the radiator than went through the radiator to cool the engine. In fact, the fan sucking air only resulted in more air going over the radiator rather than through it.

Basil Green fitted a plate to the front bulkhead, just above the grille, behind where the bonnet clip is situated , blocking the air route over the radiator into the engine bay. This solved the problem and led to the Ford Executive eventually receiving his long awaited Granada Perana V8 in North America!!

So, too much air, going into the engine bay via the wrong routes, can and probably will cause problems, more so on a turbocharged vehicle where the under bonnet temperature needs to be correctly managed. With the scoop directing cold air through the intercooler, this helped keep the temperature down. I would rather err on the side of caution after Chris from Cirrus confirmed what I suspected.

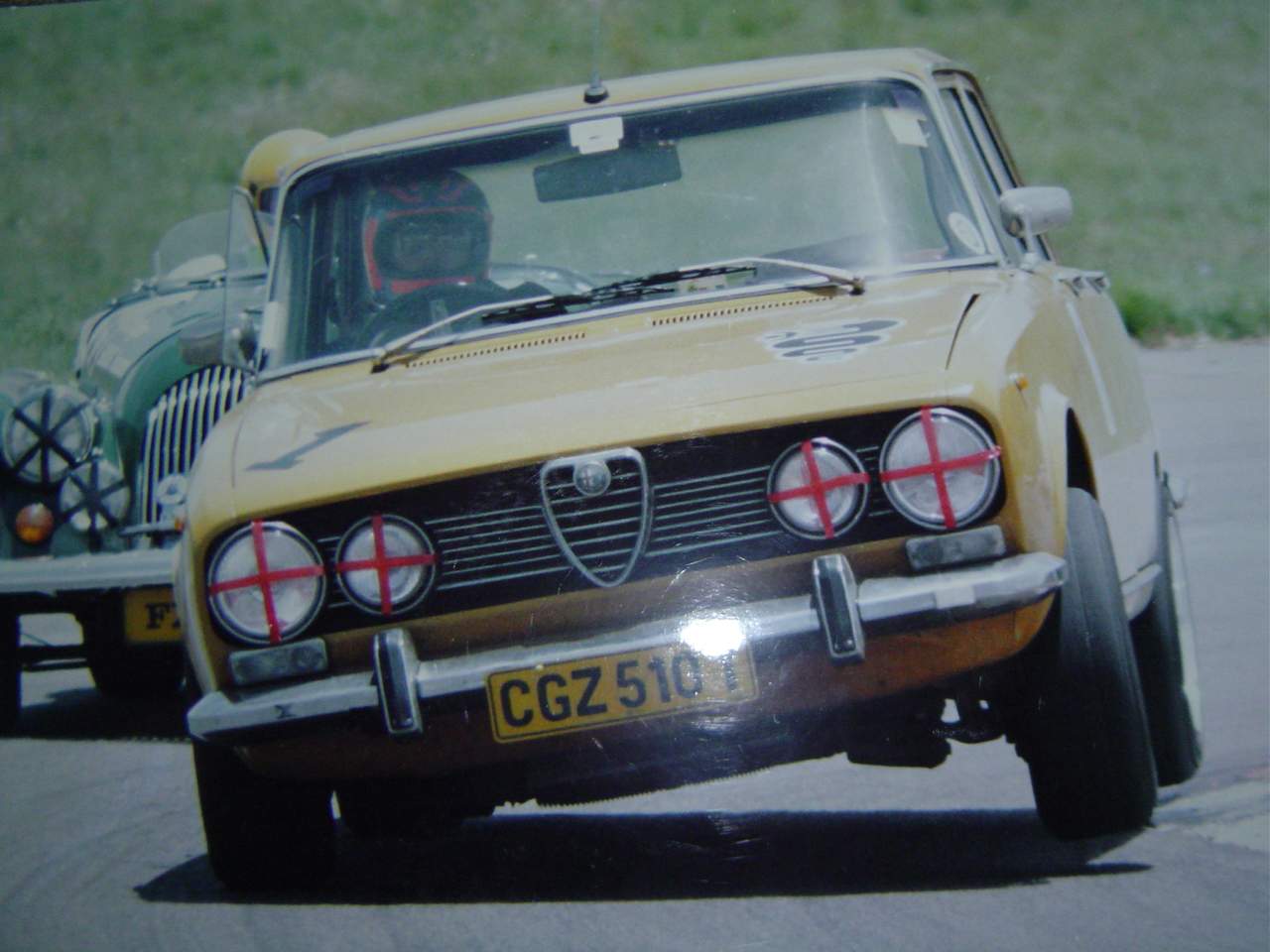

Notice the number "1" on the right front of the bonnet in the picture below. The number "1" indicates the current champion, for those who do not know.
Attachments
Yellow Marque Cars Racing Berlina.JPG

User avatar
Peter Connan
Moderator
Posts: 5226
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 235 times
Been thanked: 322 times

Re: Bonnet for my 2008 Partol

Post by Peter Connan » 18 Dec 2017 17:16

My thinking was more along the lines of drawing air out of the engine bay, thus increasing the airflow through the radiator, from the point of view that the area on top of the rear half of the bonnet is known normally to be a low-pressure area.

Whether or not this would work would depend very much on the specefic vehicle, and I wouldn't recommend doing anything expensive, but if it was as simple as turning ther duct around... Pity it can't work.

This is supposed to be one of the major problems with top-mounted intercoolers...

I think for it to work as an intake cowl, firstly it would have to be a lot closer to the windscreen and secondly the intake would have to be re-routed. But I would NOT do this on an overland vehicle, as the chances of drowning the engine would be increased exponentially in my opinion.
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
Kagiso II
Patrolman 1000+
Patrolman 1000+
Posts: 3596
Joined: 10 Jun 2009 16:58
Full Name: Mac Mc Menamin
Nickname: Oom Mac [Uncle Mac] [Uncle] [Oompie] Kagiso
Home Town: BrentwoodPark, Benoni
Current 4x4: 1982 Datsun Safari 2,8 aka LOBO; [1,300,000 Km verby !]
'99 PATROL 4,2 diesel.
2012 Jimny [SWAMBO se Kantoor-toe]
Home Language: AFRIKAANS
Location: Benoni and wherever the Outreach takes me.
Has thanked: 260 times
Been thanked: 99 times
Contact:

Re: Bonnet for my 2008 Partol

Post by Kagiso II » 22 Dec 2017 17:46

My worry these days ai the bumper design of my Patrol [a Burnco ] And yes, Many discussions evolved around iNyati's scoop, air going nowhere and r"filling" the engine bay to limit air flowing through the radiator.

Die ou bliksim word nog steeds warm met die geringste opdraaend
Don't bring God down to your level of faith ... bring your faith up to His level!

mvcoller
Senior Member
Senior Member
Posts: 196
Joined: 07 Apr 2009 07:13
Full Name: Malcolm van Coller
Nickname: mvcoller
Home Town: Kensington, Jhb
Current 4x4: 2008 3.0 Di Patrol GL
and
2011 2.5 Di Pathfinder LE
Home Language: Afr & Eng
Location: Kensington, Jhb
Has thanked: 3 times
Been thanked: 35 times
Contact:

Re: Bonnet for my 2008 Partol

Post by mvcoller » 02 Jan 2018 19:53

Exakirry Mac... the extra air "fills" the engine bay and prevents air from going through the radiator sufficiently.
