Re: 4.8 Suspension noise

Post by IR_Eddie » 28 Apr 2016 13:26

Thanks All. I checked the bushes (or at least what i could see - did not remove anything) for the rear control arms and also the sway bar for damage but it all looked OK to me. Ill buy a grease gun and grease all the nipples this weekend. Ill probably take it to johan tires viljoen to check out. Does anyone have his contact details?

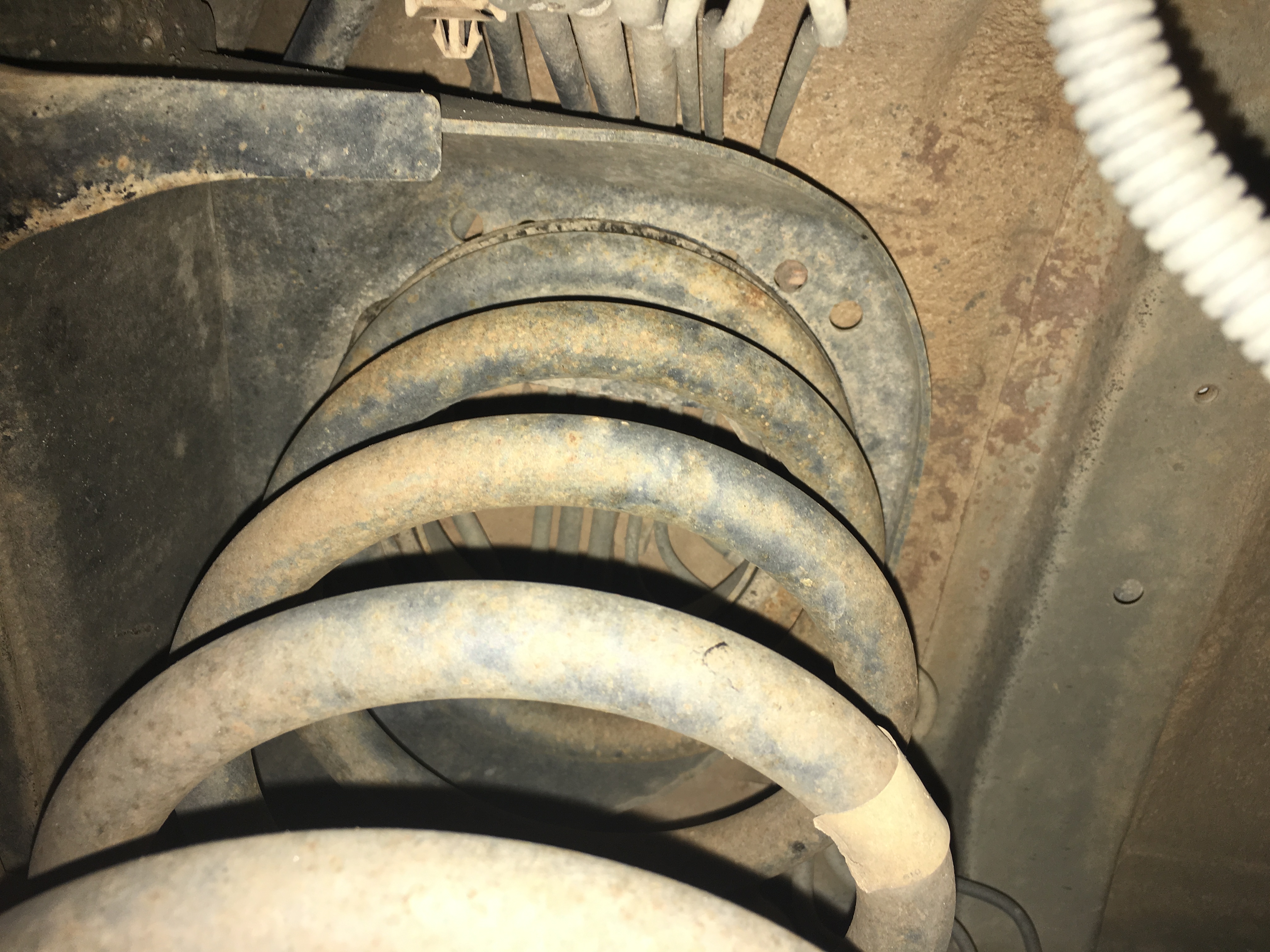

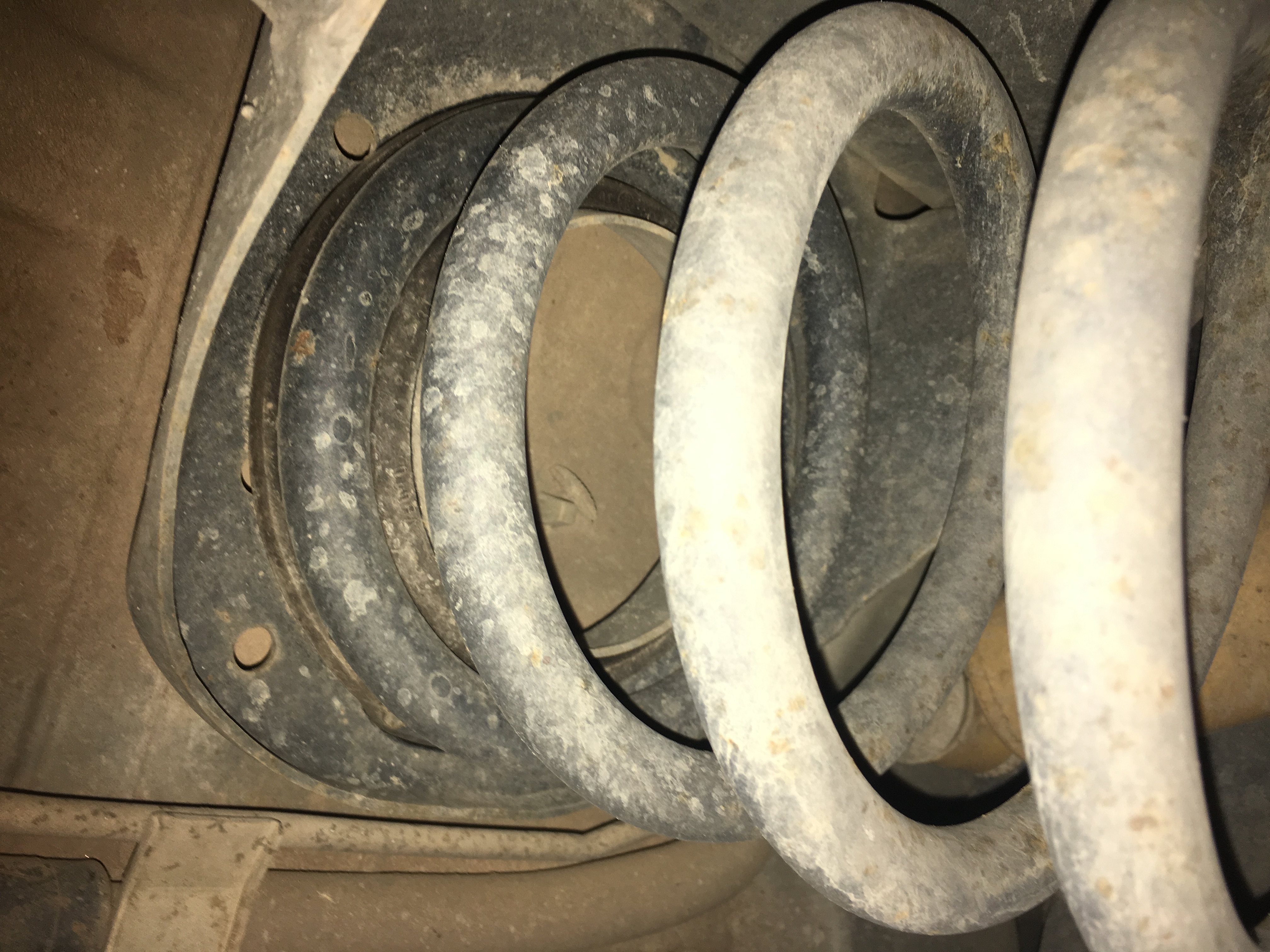

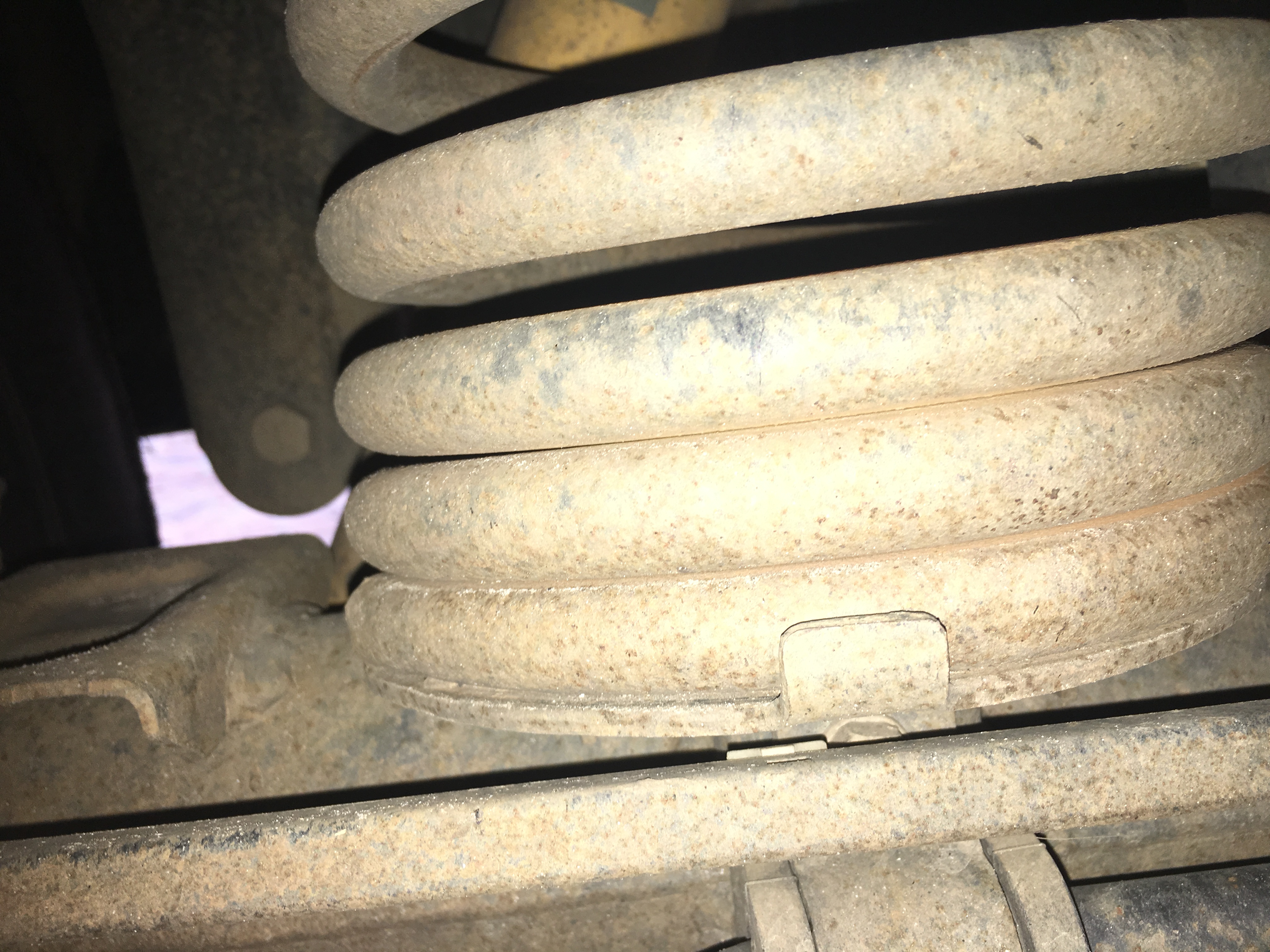

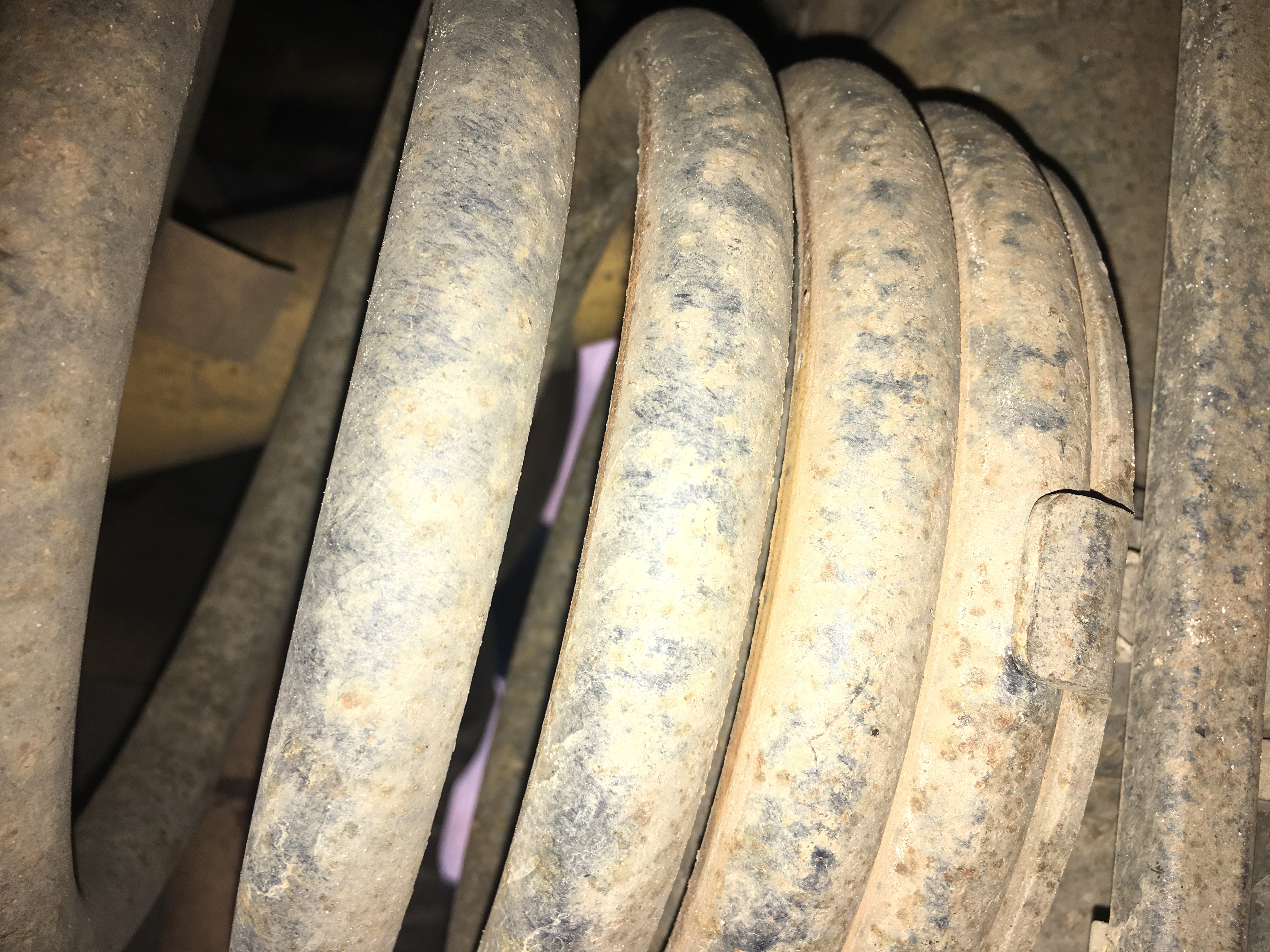

I have to agree with Petrol above that it does sound like the coils are not seating properly and this was also my initial thought. See attached some pics from the back coils - i could not see any rubber parts where they seat. does this look OK or is something missing?
Attachments
back coils
back coils
back coils
Back Coils

User avatar
Stefan
Moderator
Posts: 1896
Joined: 28 Apr 2009 08:43
Full Name: Stefan de Villiers
Nickname: Stefan
Home Town: Bothasig, Cape Town
Current 4x4: 2002 3.0 GL Patrol
Home Language: Afrikaans
Location: Cape Town
Has thanked: 163 times
Been thanked: 44 times
Contact:

Re: 4.8 Suspension noise

Post by Stefan » 28 Apr 2016 14:30

http://www.1stalignment.co.za/

Telephone nr (incl Johann's cell) on the top right of the page

User avatar
NMAD
Senior Member
Senior Member
Posts: 265
Joined: 11 Mar 2015 15:07
Full Name: noel
Nickname: happy
Home Town: C
Current 4x4: 20
Home Language: E
Has thanked: 50 times
Been thanked: 8 times

Re: 4.8 Suspension noise

Post by NMAD » 28 Apr 2016 15:02

The rear coils only have a rubber seat on the top and the bottom just sits metal on metal. On your last pic it looks like the rubber pad is in place on top.
You should be able to see it or feel it with your hand, just check it's there left and right coils.

Also check that the ends of the coils are sitting into the slots of the axle top and bottom.
Stock nissan coils come with a hard plastic sleeve that fits/slides over the top section of the coil so it does not make a noise when it compresses and touches the next bottom section of the coil.
I don't see these on your coils but I am not sure if it would make a noise like on your video

Also make sure that you have the rear sway bar extension brackets fitted if it's an OME 2 inch lift.

SJC
Patrolman 1000+
Patrolman 1000+
Posts: 2766
Joined: 23 Nov 2014 14:20
Full Name: Fanus
Nickname: Fanus
Home Town: .
Current 4x4: 2000 Nissan Patrol 4500GRX
Home Language: Afrikaans/English
Has thanked: 87 times
Been thanked: 117 times

Re: 4.8 Suspension noise

Post by SJC » 28 Apr 2016 19:54

Those coils looks very compressed...
