My 4.2 GU Pickup - Extended Shackles

Post by Russ Kellermann » 26 Apr 2015 17:30

Most of you wont really be interested in this as you all have the luxury and comfort of coil sprung rears, but for those that have / or are thinking about buying the pickup, this is my extended shackle story...

Most of you know i have had my Pickup for some time, but for a long while i had wanted to install some extended shackles in order to slacken the spring rate and create a more linear travel through its stroke,.... also, its just more comfortable, sits slightly taller, and flexes better,... with the 400kg constant load springs, i needed all the help i could get.

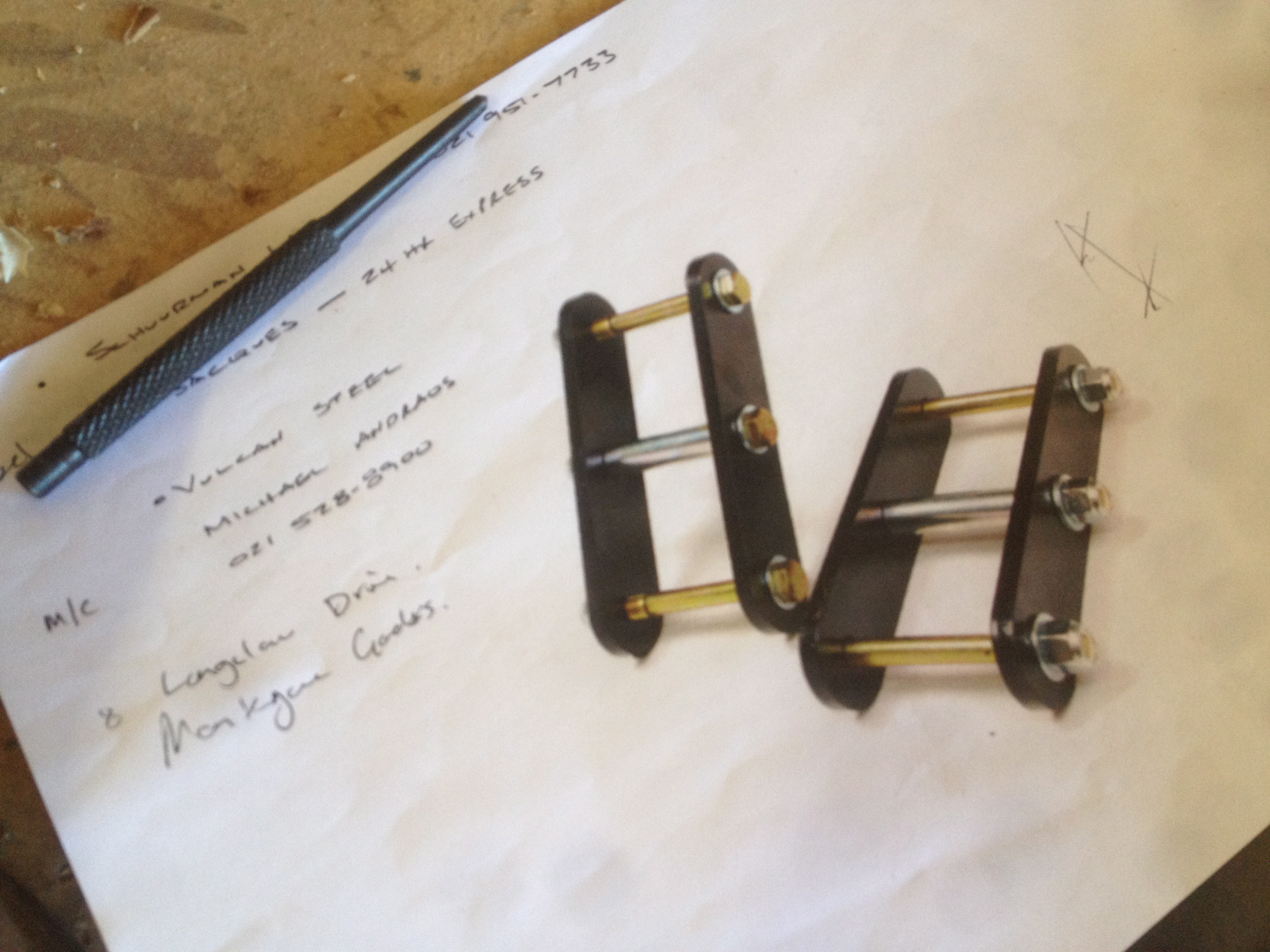

Last year in june i went past my local store in CT, LA Sport, and asked them to supply me with a set to my spec length, and these they would outsource to MIKEM. weeks later still no answer . Called MIKEM directly, sent them a drawing,... weeks later, they say they cant make them. NOT COOL. so i made them myself.

I tried getting the plates CNC / Laser cut to spec but at the end of the year no engineering shop had the time to look at it,... so i was forced to go old school.

This is how i got along.

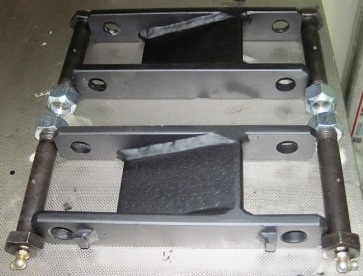

I looked at a few designs i liked online,.. and decided on which type would suit me..

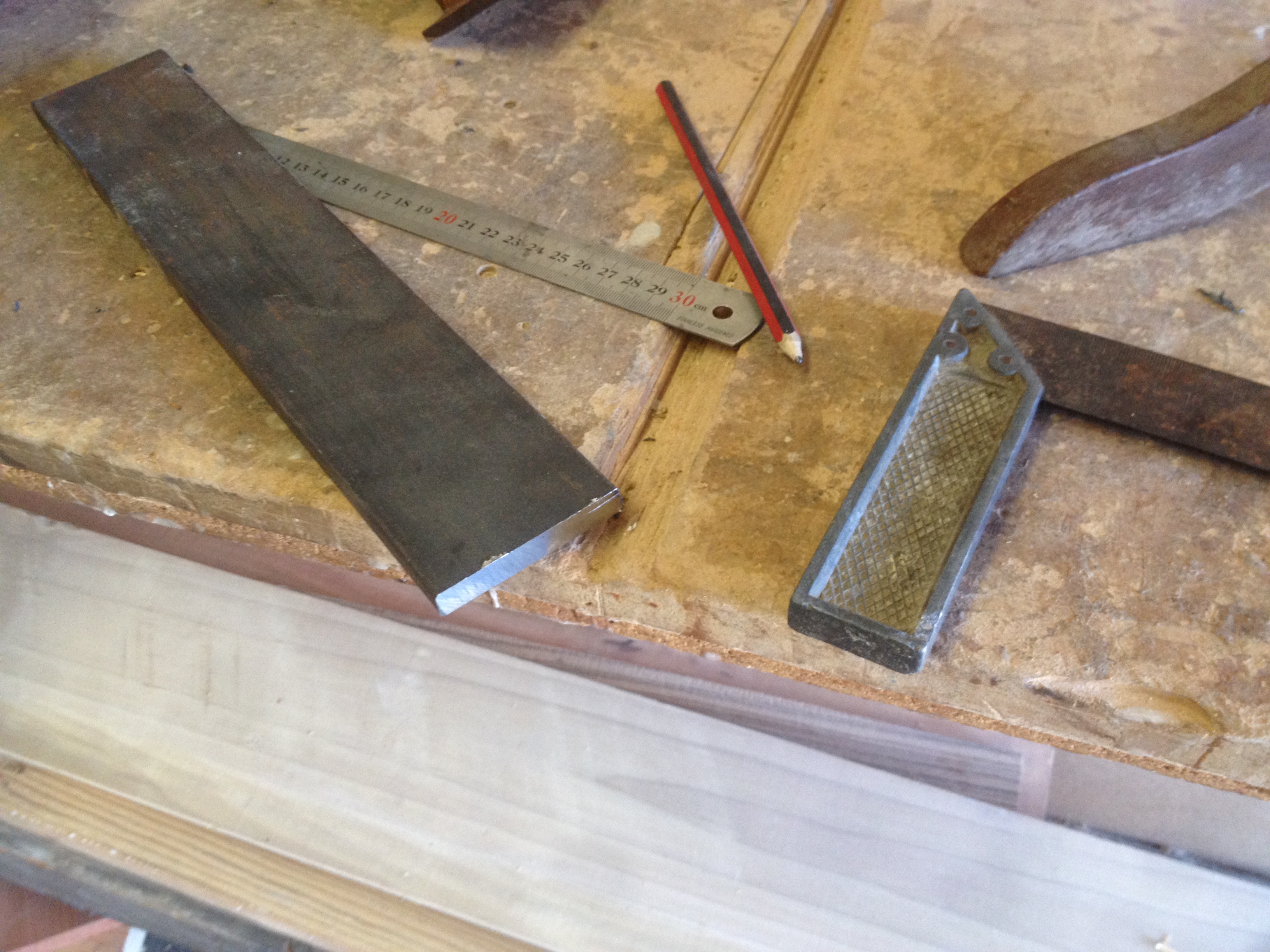

I started off by sourcing a 1m length of steel 10mm thick, i needed something strong, very strong,to be able to take any torsional forces during flex. 1000x50x10

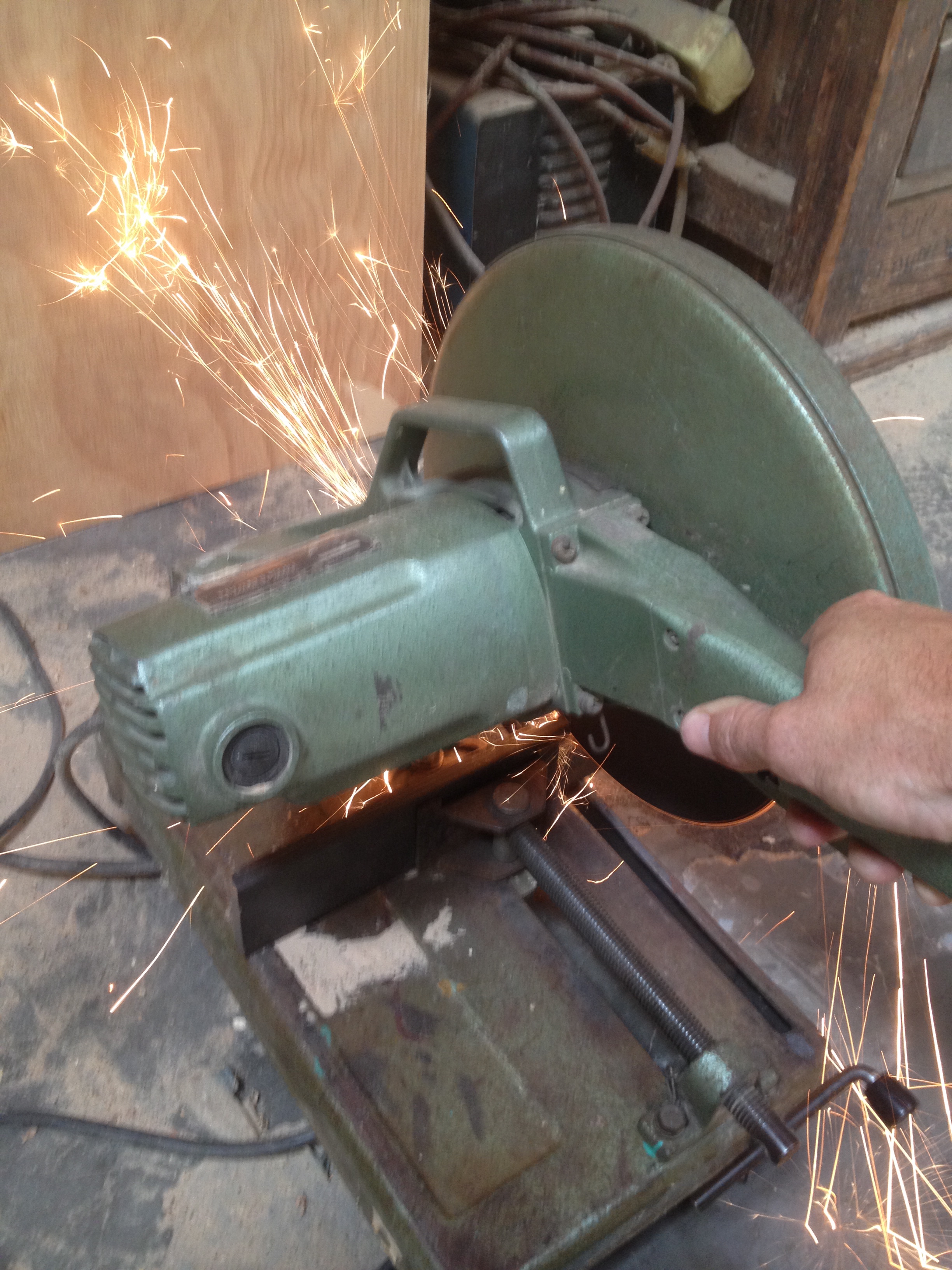

And then i cut it of using a cut off saw, sparks aplenty.

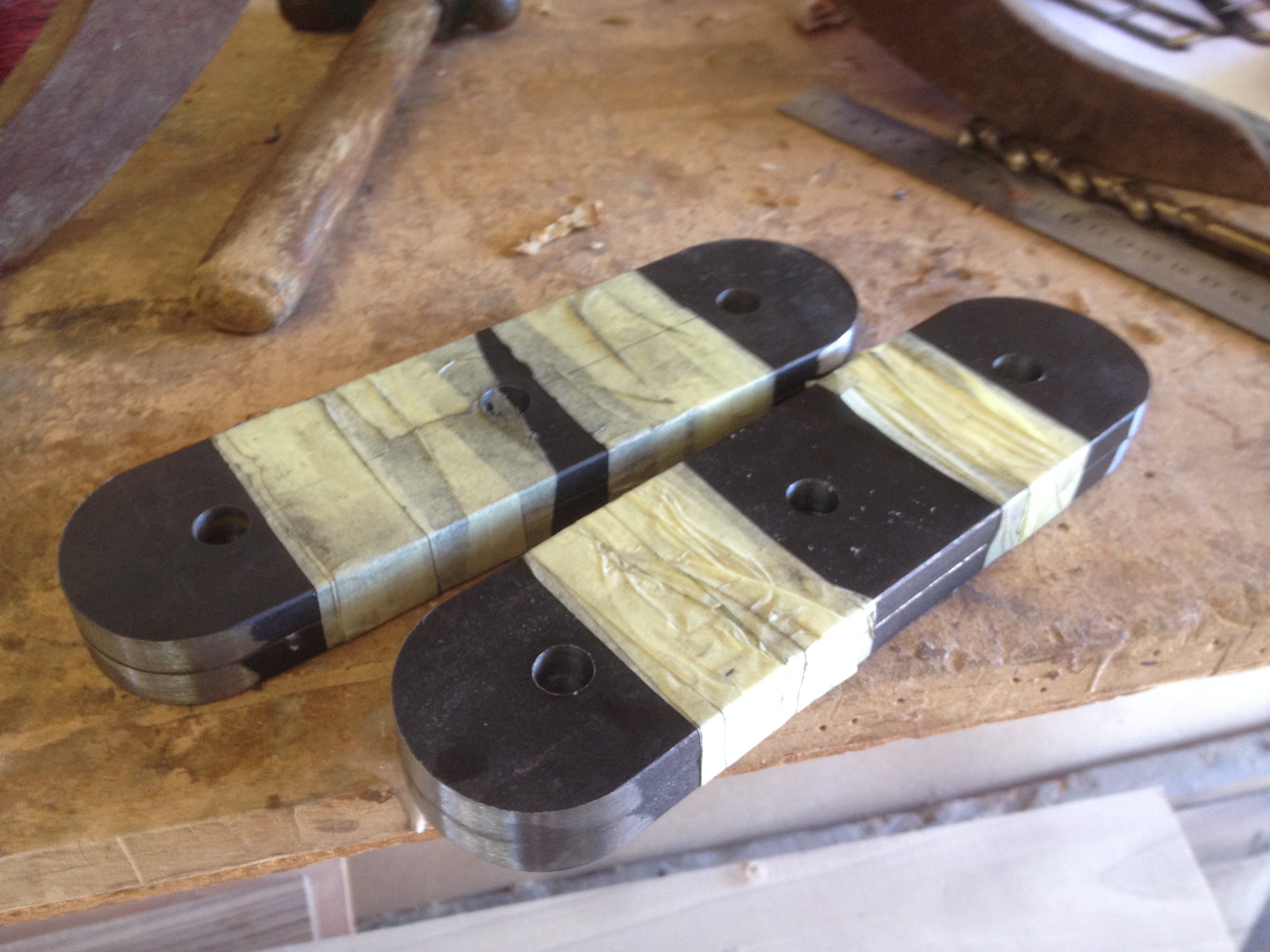

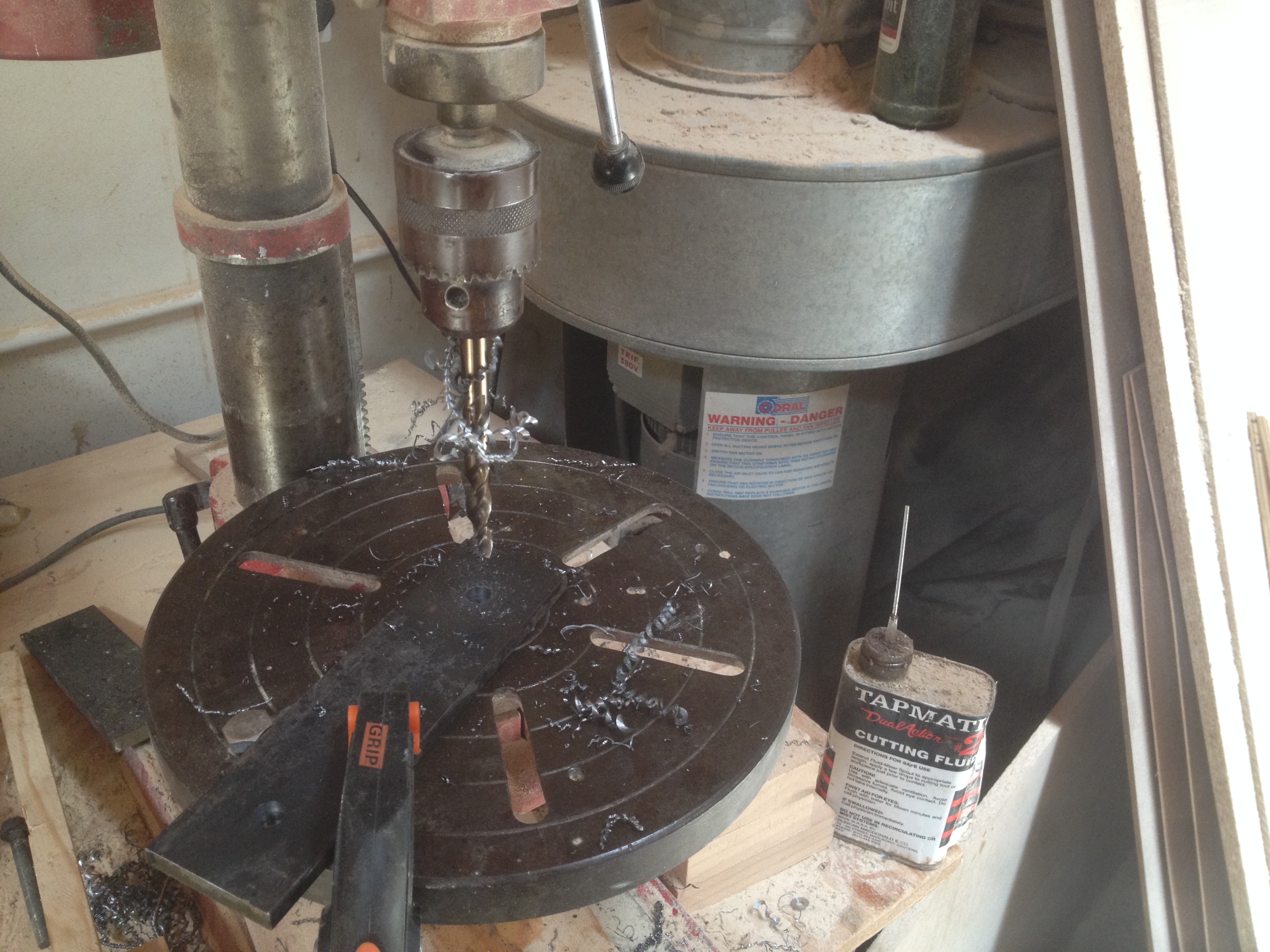

Then i drilled them out

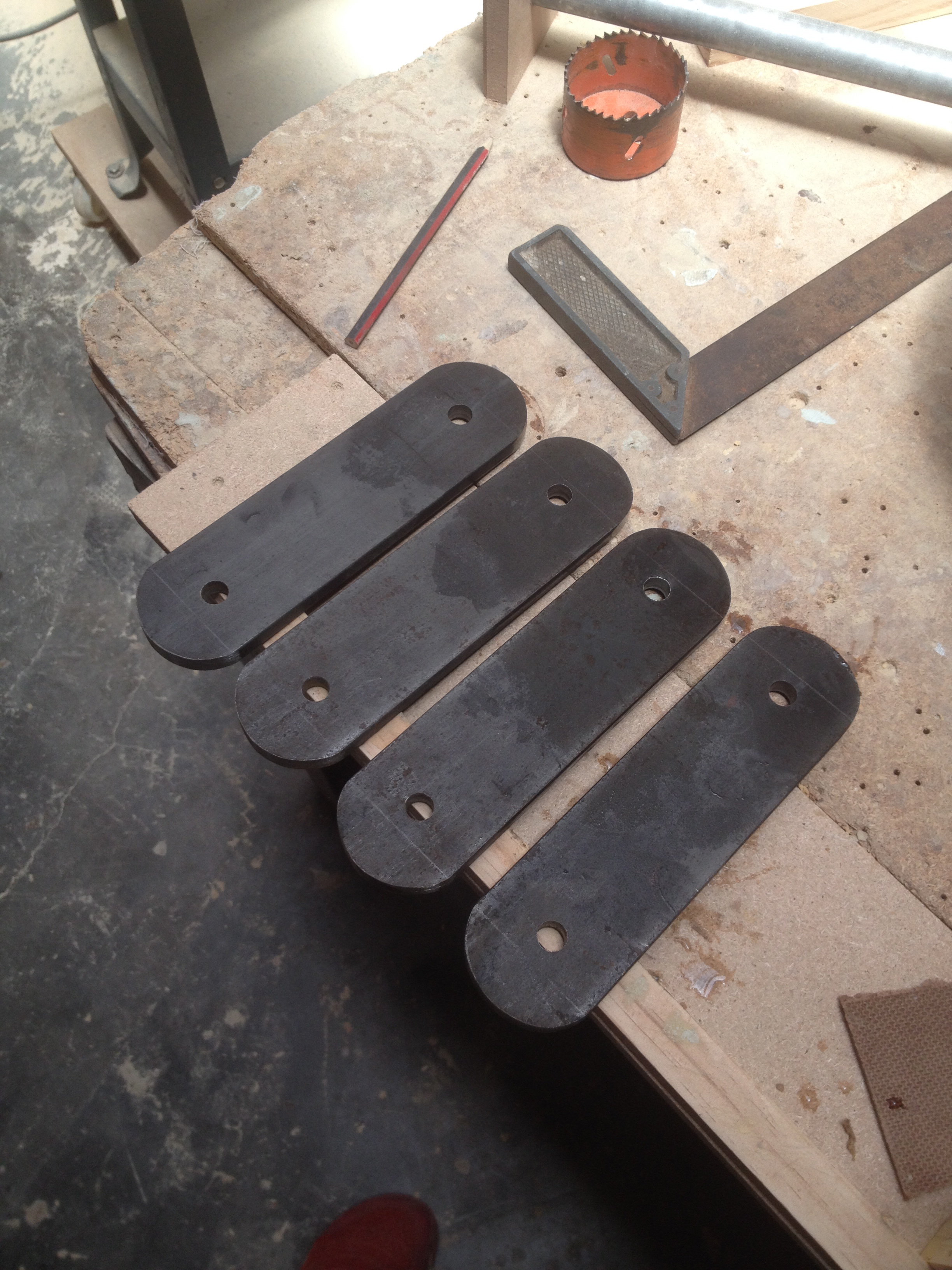

Then i put a radius on them and used the long sander to remove material

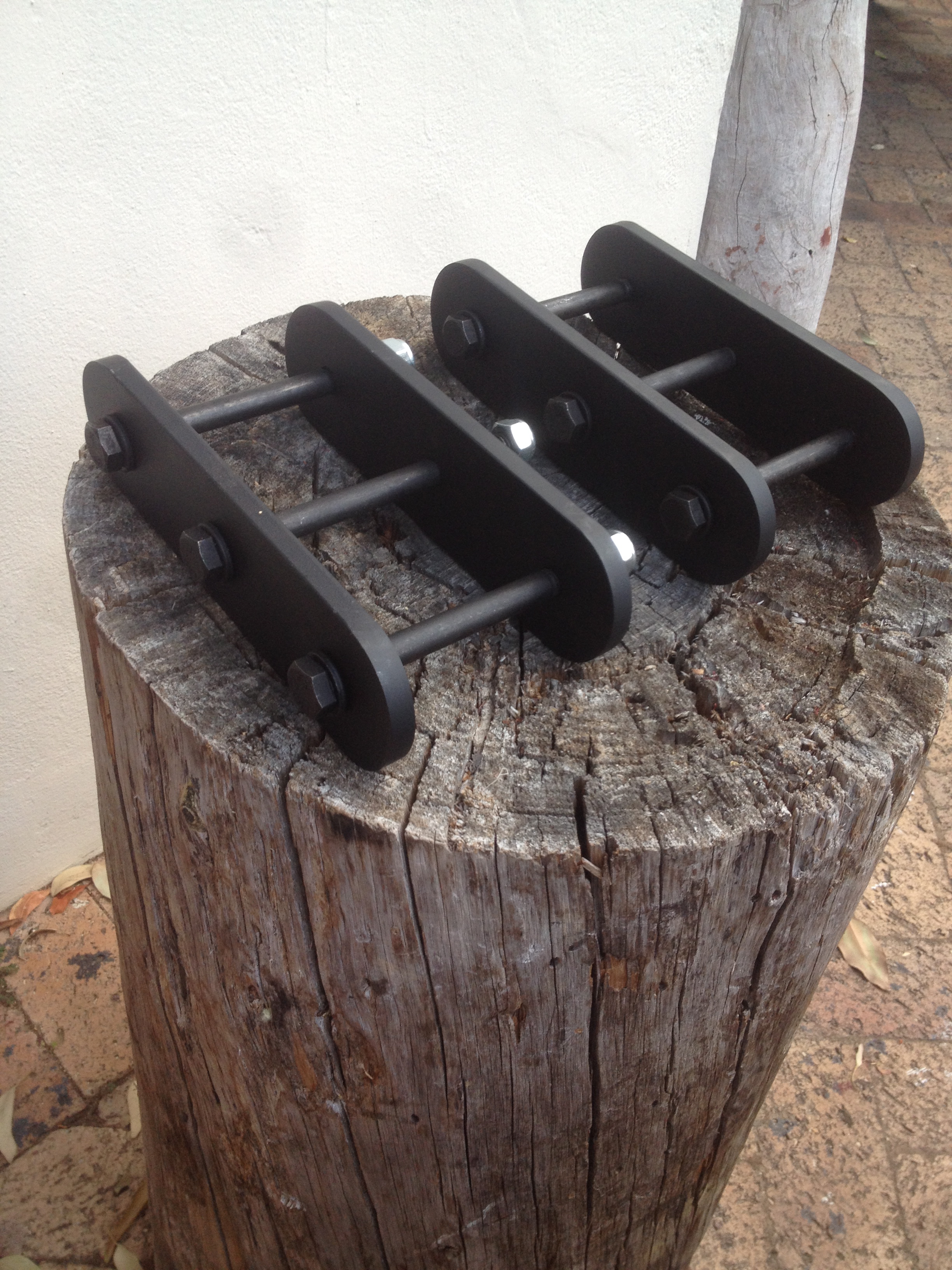

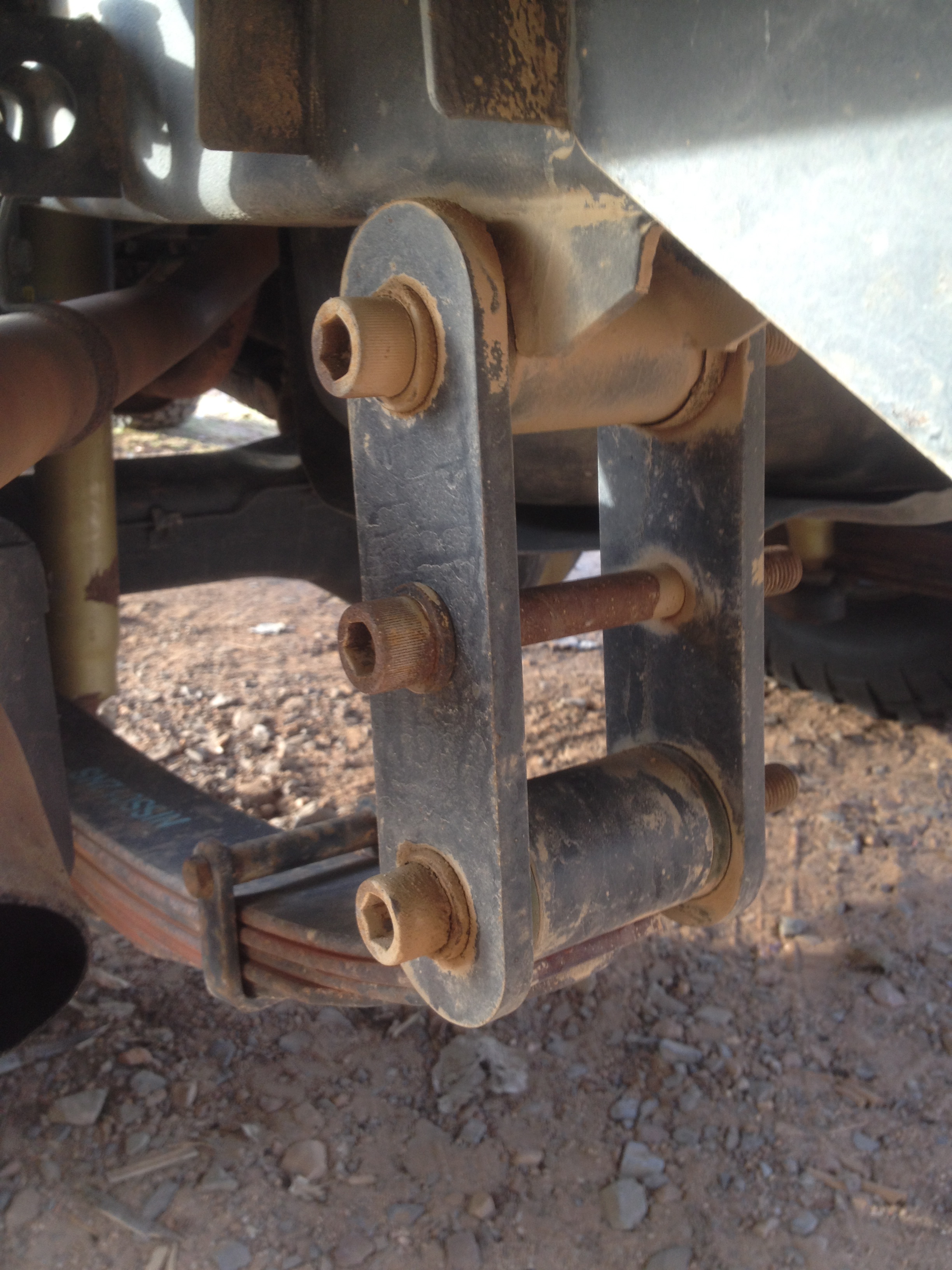

And they ended up like this..

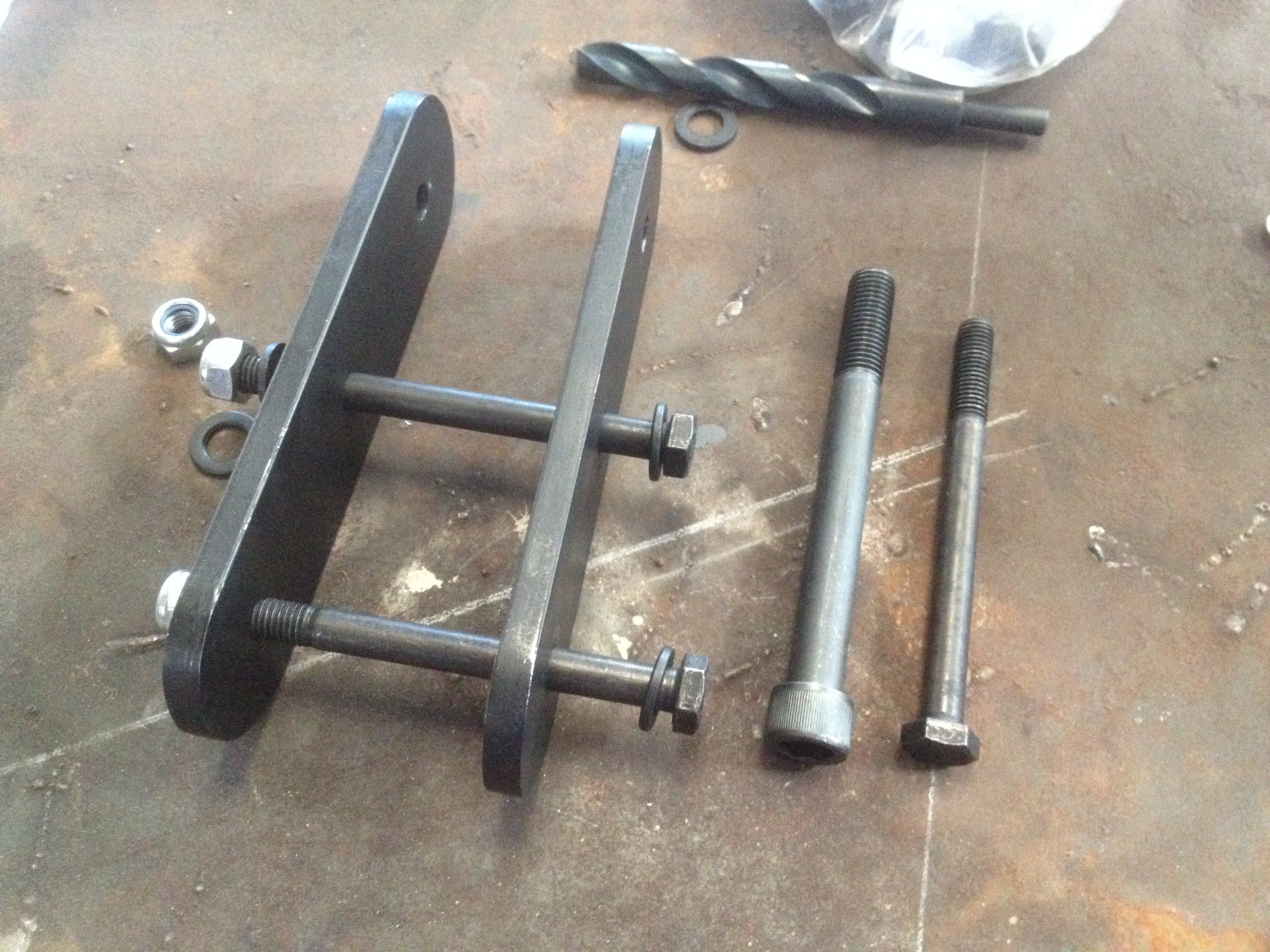

12mm HT Grade 8 Standard Head 100mm shoulder
But then i went on my usual Overkill way,.. and swapped them for these.
16mm HT Grade 12 Hex Head - 100mm shoulder and HT Nuts and HT washers..... i was happy...

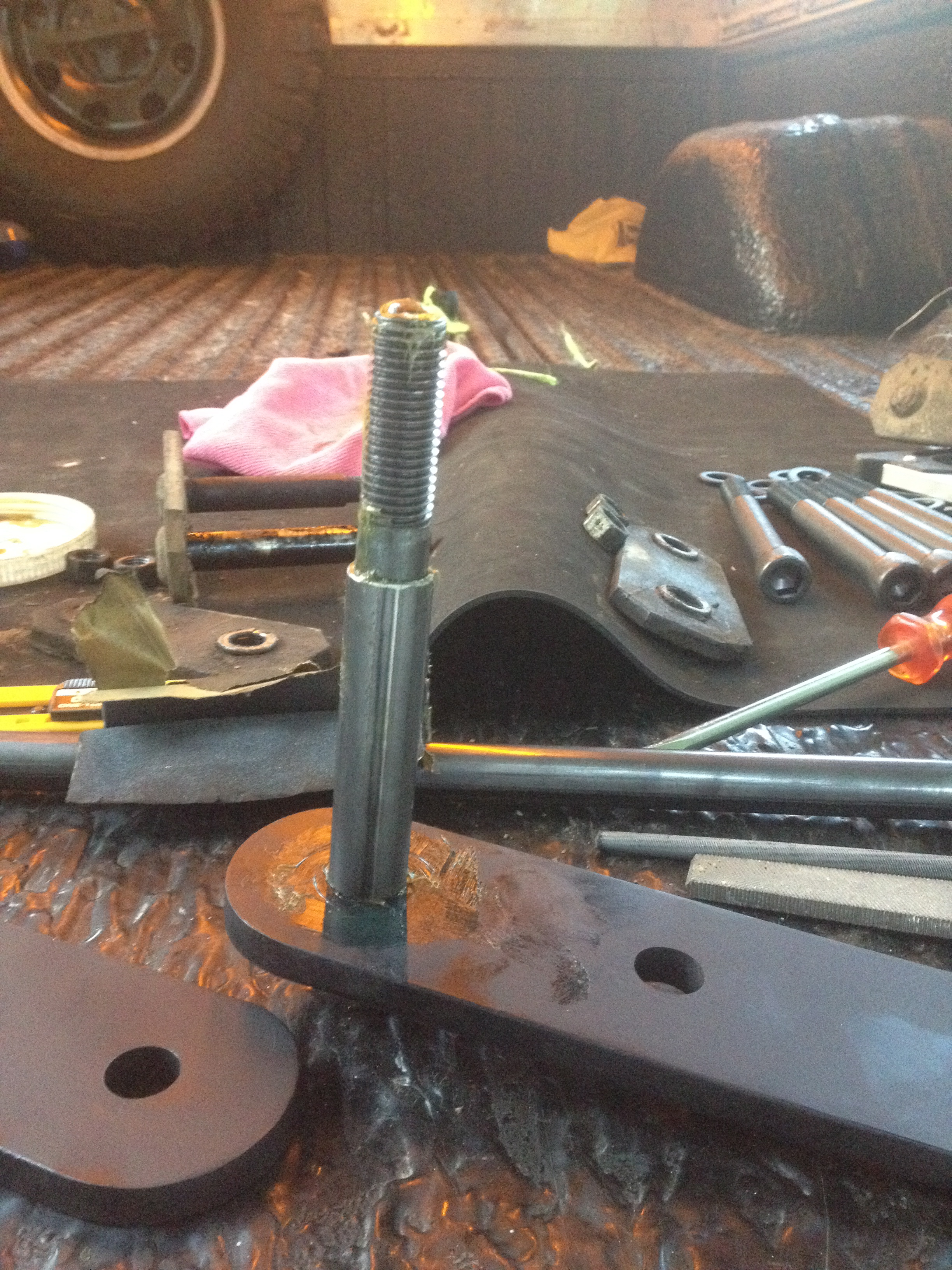

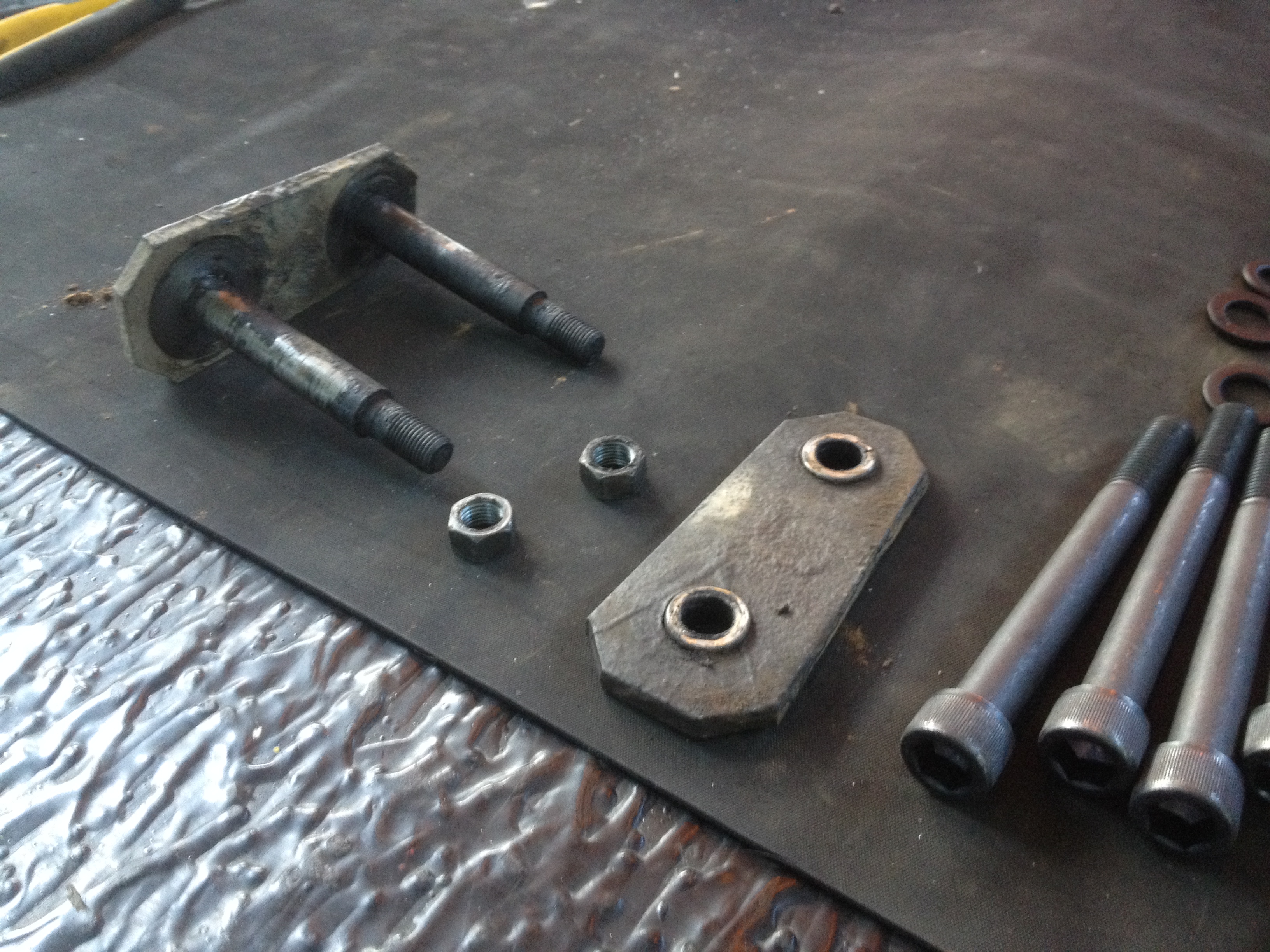

When i then pulled my originals off and saw they had a stepped shoulder,... so i made 2 sets of compression sleeves for mine too.

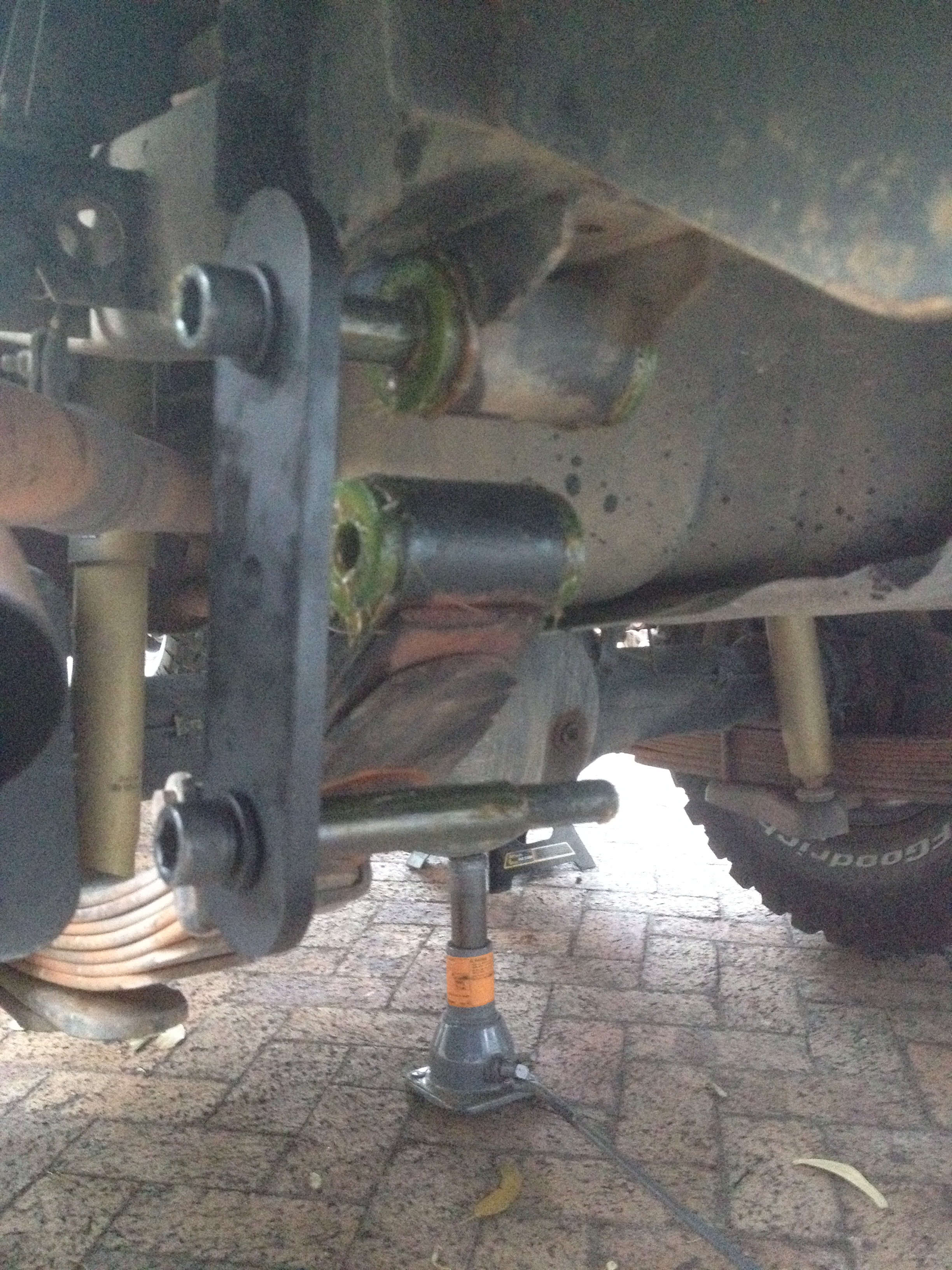

Then i stated the install..
Will add more pics soon of finished item.
'07 Patrol Pickup TD42 N/A,285's KM2,3" Lift,ONCA Bars,Warn High Mount,Alu Canopy, and some other Stuff.

User avatar
Tinus lotz
Moderator
Posts: 7008
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 547 times
Been thanked: 283 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by Tinus lotz » 26 Apr 2015 22:38

:salute: :thumbup:

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5858
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 233 times
Been thanked: 244 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by ricster » 28 Apr 2015 08:45

Flippin' nice job mate !!!
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
davidvdm
Senior Member
Senior Member
Posts: 467
Joined: 13 Sep 2011 15:47
Full Name: David vd Merwe
Nickname: David - Hillbilly
Home Town: Carletonville
Current 4x4: 1997 2.7TD Nissan Sani Mk3 4x4 SFA (SAFANI)
Home Language: English/Afrikaans
Has thanked: 3 times
Been thanked: 15 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by davidvdm » 28 Apr 2015 10:45

Thats nicely done.

I have extended a set on the rear of the Sani, and built a new set for the front end. I must say the type that has the pins welded to to the one side of shackle is a pain in the backside to take in and out.

I will be doing mine over soon front and back. Need another 20mm now that my springs have settled and it will fix the castor angle as well. Rear end is a total rebuild of spring perches and all and I want drop out scissor shackles.

But a like your over engineering, I am a firm believer in the practice, I just need to find a bigger engine to carry all the extra weight that comes with that. :rolling:
David - Bfreesani
1997 Nissan Sani MK3 2.7TD - Hillbilly (SAFANI)
MQ C200 SFA
MQ H260 LSD Rear
MQ Transfer as second low range
5" Lift
33"x12.5x15" tires on 8.5J rims - Want 35's
DIY rock sliders
DIY Snorkel
Madman EMS

User avatar
Russ Kellermann
Patrolman 1000+
Patrolman 1000+
Posts: 1121
Joined: 01 Feb 2010 22:39
Full Name: Russell Kellermann
Nickname: Russell Kellermann
Home Town: Cape Town ,but raised in the Tanskei
Current 4x4: 2007 Patrol 4.2D Pickup
Home Language: English
Has thanked: 1 time
Been thanked: 52 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by Russ Kellermann » 28 Apr 2015 14:57

Revolver shackles and scissor shackles only work well on light leaf packs, HD springs are too strong for them. They also tend to throw the rear up on steep descents as the shackle unhinges itself and moves through its travel design,which is very unstable when its not a level drop off, .... just something to think about thats all.

I was thinking of going this route, but for a heavy truck like a loaded patrol pickup (3.5T) i needed strength, reliability, and something thats works over and over with no issues.

This design of mine works hard and there is no deformation at all, so its def proven itself.

For further flex i can take out the centre pin, which then allows more torsional flex,... Personally, im not a fan, but this is common practice amongst many who have custom shackles, but, ja, not my vibe, i'd rather work on getting my spring packs to do more work.
'07 Patrol Pickup TD42 N/A,285's KM2,3" Lift,ONCA Bars,Warn High Mount,Alu Canopy, and some other Stuff.

User avatar
davidvdm
Senior Member
Senior Member
Posts: 467
Joined: 13 Sep 2011 15:47
Full Name: David vd Merwe
Nickname: David - Hillbilly
Home Town: Carletonville
Current 4x4: 1997 2.7TD Nissan Sani Mk3 4x4 SFA (SAFANI)
Home Language: English/Afrikaans
Has thanked: 3 times
Been thanked: 15 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by davidvdm » 28 Apr 2015 17:05

I’ve seen that flip out you mention on revolvers that have been installed on the front as the guy is trying to climb something hectic. I actually never thought of the problem you mention, I am definitely going to give my setup a re-think. Maybe fourlink suspension front and rear after all.
David - Bfreesani
1997 Nissan Sani MK3 2.7TD - Hillbilly (SAFANI)
MQ C200 SFA
MQ H260 LSD Rear
MQ Transfer as second low range
5" Lift
33"x12.5x15" tires on 8.5J rims - Want 35's
DIY rock sliders
DIY Snorkel
Madman EMS

User avatar
Russ Kellermann
Patrolman 1000+
Patrolman 1000+
Posts: 1121
Joined: 01 Feb 2010 22:39
Full Name: Russell Kellermann
Nickname: Russell Kellermann
Home Town: Cape Town ,but raised in the Tanskei
Current 4x4: 2007 Patrol 4.2D Pickup
Home Language: English
Has thanked: 1 time
Been thanked: 52 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by Russ Kellermann » 11 May 2015 09:43

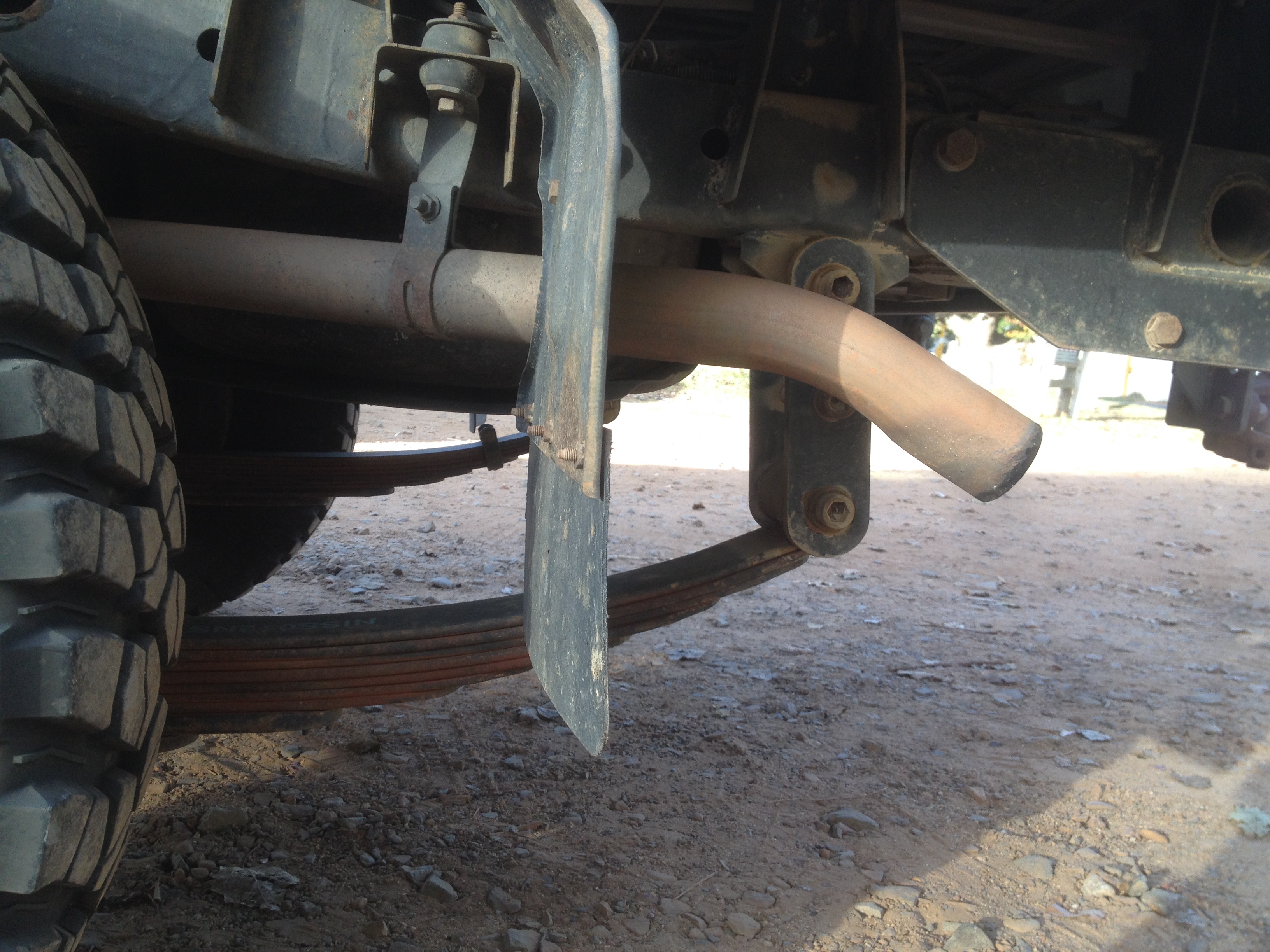

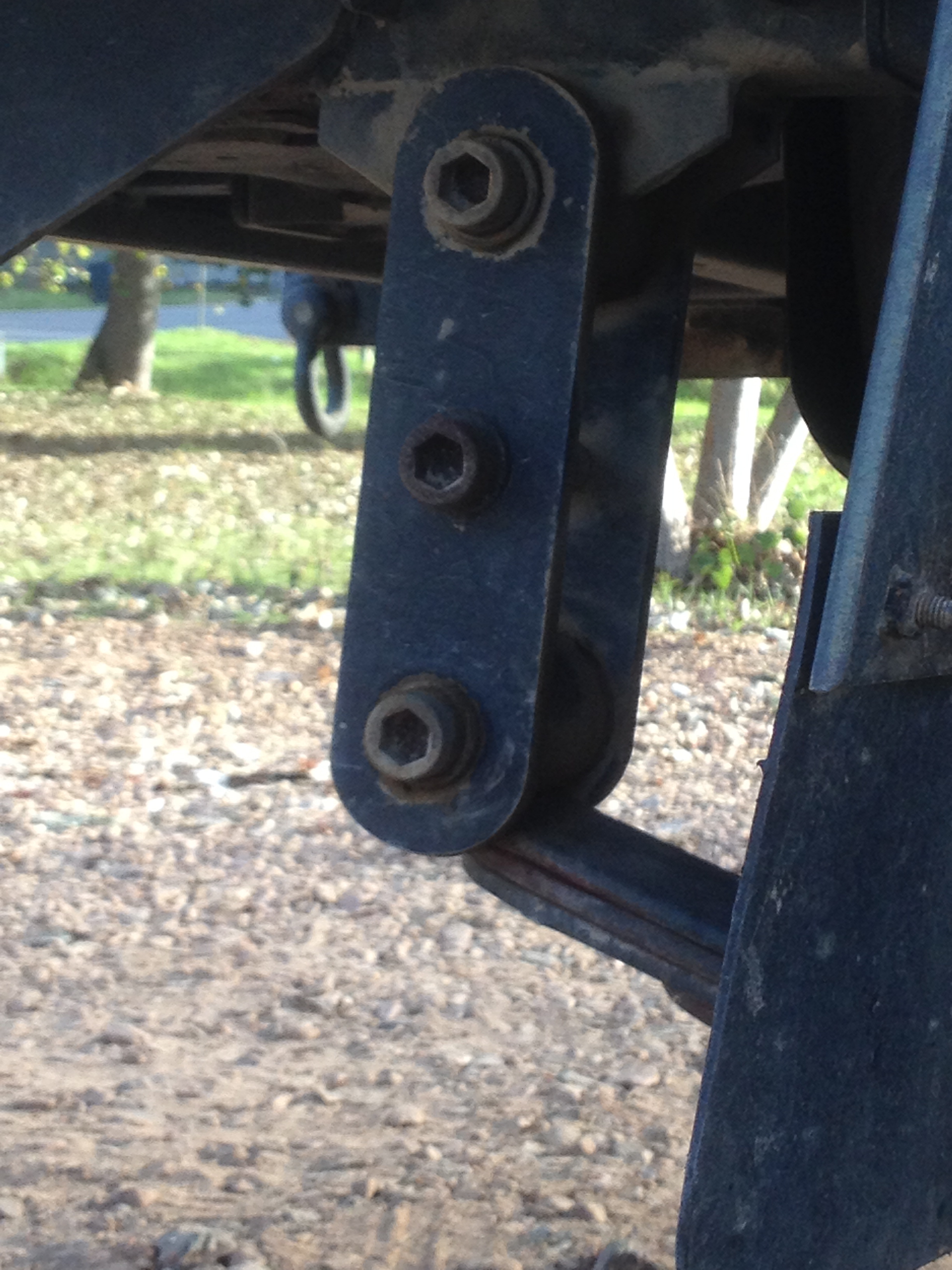

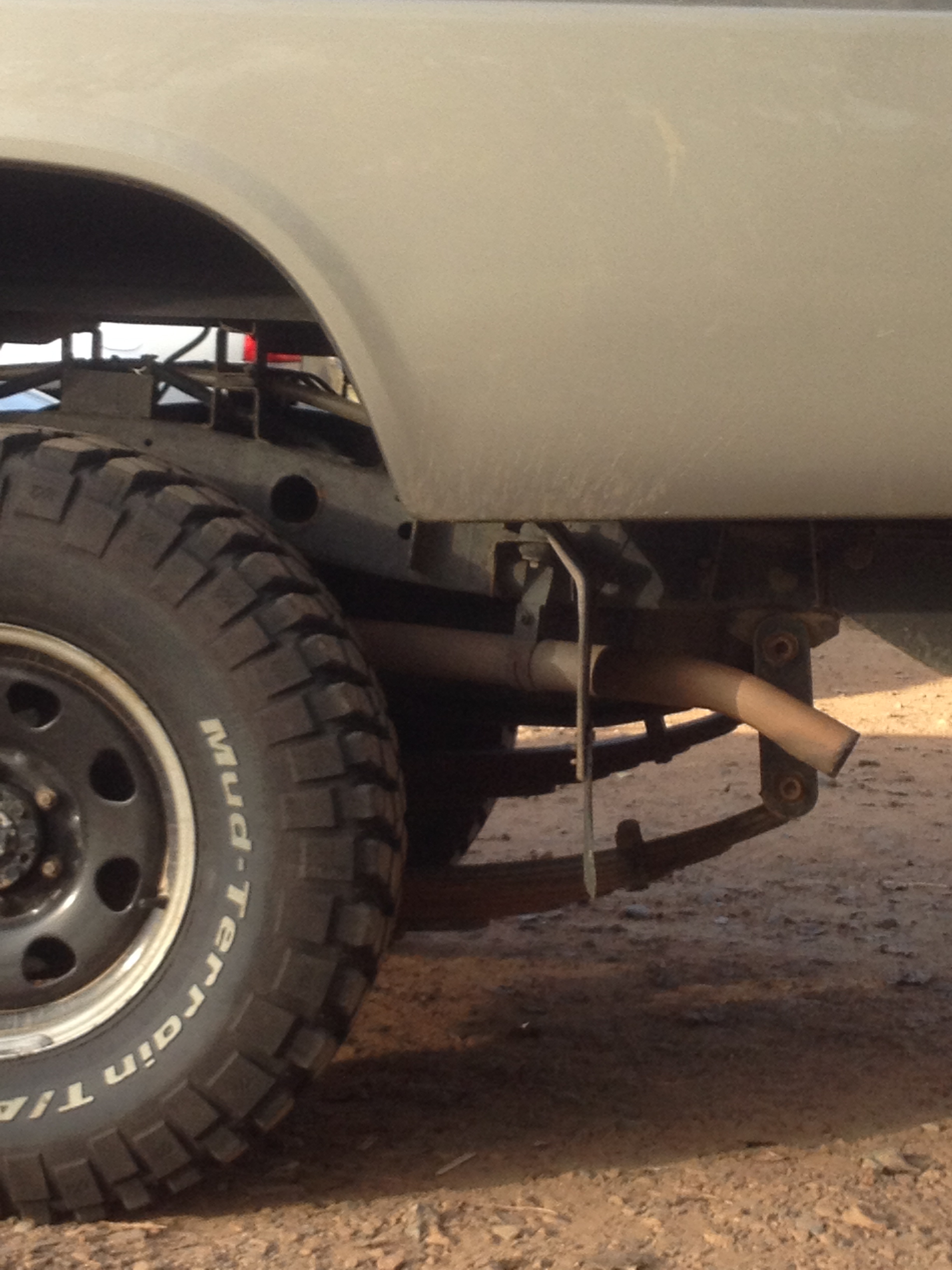

A Bit Dusty and Dirty from a 4 day backroad camp trip, but you get the idea.

In time i'll take the bolts to be drilled out and tapped for grease nipples, ... hence the massive 16mm Grade 12 High Tensile bolts.
Attachments
'07 Patrol Pickup TD42 N/A,285's KM2,3" Lift,ONCA Bars,Warn High Mount,Alu Canopy, and some other Stuff.

SJC
Patrolman 1000+
Patrolman 1000+
Posts: 2766
Joined: 23 Nov 2014 14:20
Full Name: Fanus
Nickname: Fanus
Home Town: .
Current 4x4: 2000 Nissan Patrol 4500GRX
Home Language: Afrikaans/English
Has thanked: 87 times
Been thanked: 117 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by SJC » 05 Jun 2015 15:43

Very nice. :clap:
I only saw this thread now.

How long are these shackles compared to the originals?

User avatar
Russ Kellermann
Patrolman 1000+
Patrolman 1000+
Posts: 1121
Joined: 01 Feb 2010 22:39
Full Name: Russell Kellermann
Nickname: Russell Kellermann
Home Town: Cape Town ,but raised in the Tanskei
Current 4x4: 2007 Patrol 4.2D Pickup
Home Language: English
Has thanked: 1 time
Been thanked: 52 times

Re: My 4.2 GU Pickup - Extended Shackles

Post by Russ Kellermann » 06 Jun 2015 08:49

If i remember correctly they were 70mm or 75mm longer. but remember, that will only give you a max lift increase of 35mm-45mm.

It was more about extra leverage on the rear packs, as i'm running 400Kg constant load rear packs, wich are much stronger than originals, so they need the help when it come to flexing with little load in the rear.

They usually sit back at an angle, but when i took these pics i had Zero weight in the pack, which is not usually case as i'm always carrying tools and gear. Its good to have the shackles laying back at an angle rather than directly down,thats why often a shackle install on original spring packs can be an issue as the spring packs themselves are not long enough, whereas aftermarket packs are usually slightly longer.

The Original Patrol rear leaf packs though seem like they may be ok tho. I will try measure y old packs and my XGS packs and report the difference.
