Alternator - 4.2 diesel GQ

Post by DMH » 19 Mar 2015 14:37

Looking for one of those please. Tried David Volschenk, no luck.

Quick search on eBay and seems the Nissan Navara diesel uses the very same one - could anyone confirm?
http://www.ebay.com/itm/Nissan-Navara-A ... a5&vxp=mtr

It looks like mine had an aftermarket Isuzu one on. It was undercharging - the sparky opened it up and said the spindle was on its way out and that there was a small short on the stator. Perhaps it could be refurbished, but I don't want to take chances with that considering it wasn't made for a Patrol - rather get a new one.

And I think the original had a 60 or 70A - would prefer a 90/100A one - but would take either.

Cheers

User avatar
Peter Connan
Moderator
Posts: 5364
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 275 times
Been thanked: 349 times

Re: Alternator - 4.2 diesel GQ

Post by Peter Connan » 19 Mar 2015 17:27

Isn't there supposed to be a vacuum pump on it?
Mag ons ons kenniskry met lekkerkry aanhoukry.

Adrianjvr
Senior Member
Senior Member
Posts: 108
Joined: 23 Aug 2010 10:59
Full Name: Adrian
Nickname: Adrian
Home Town: Johannesburg
Current 4x4: '91 SWB Patrol 4.2d
Home Language: English
Been thanked: 1 time

Re: Alternator - 4.2 diesel GQ

Post by Adrianjvr » 19 Mar 2015 20:42

Try Breno Parts. I managed to get a new 24V alternator for my safari for around R2.5k a couple of years ago.

User avatar
Kagiso II
Patrolman 1000+
Patrolman 1000+
Posts: 3653
Joined: 10 Jun 2009 16:58
Full Name: Mac Mc Menamin
Nickname: Oom Mac [Uncle Mac] [Uncle] [Oompie] Kagiso
Home Town: BrentwoodPark, Benoni
Current 4x4: 1982 Datsun Safari 2,8 aka LOBO; [1,300,000 Km verby !]
'99 PATROL 4,2 diesel.
2012 Jimny [SWAMBO se Kantoor-toe]
Home Language: AFRIKAANS
Location: Benoni and wherever the Outreach takes me.
Has thanked: 289 times
Been thanked: 105 times
Contact:

Re: Alternator - 4.2 diesel GQ

Post by Kagiso II » 19 Mar 2015 21:06

Speak to Christo Slang first -- He got an aftermarket Altrntr that fits Chuck .. so shoeld be good for any diesel
Don't bring God down to your level of faith ... bring your faith up to His level!

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5889
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 240 times
Been thanked: 247 times

Re: Alternator - 4.2 diesel GQ

Post by ricster » 20 Mar 2015 08:42

Your alternator will have the vacuum pump on the back of the alternator. This makes it a little difficult to just replace with anything. Grant took his in and they upgraded it ( the original one ) to, I think 80 amp. Our 4.2 diesels have little to no electronics in them and any extra amps would be used to charge a second battery or run high powered spotlights or fridges. Post a photo of the alternator, and then lets see...
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
DMH
Senior Member
Senior Member
Posts: 73
Joined: 01 Mar 2015 21:34
Full Name: Tejan Pillay
Nickname: Tej
Home Town: durban
Current 4x4: 95 Patrol SGL 4.2D,
02 Hardbody 3L TD
Home Language: english
Has thanked: 15 times
Been thanked: 1 time

Re: Alternator - 4.2 diesel GQ

Post by DMH » 20 Mar 2015 09:55

Thanks again chaps

Yes it has the vacuum pump. (will send pics shortly)

Pm'ed Christo.

Called Breno - they have the Hitachi aftermarket copy - 70A for R1969 ex VAT.

Said he could get the stator rewound to 90A for about R600-R700.

Also asked him about my battery - it's a 657A 66Ah (505A). The Battery centre's I went to recommended getting a bigger one, even 90Ah. But the chap at Breno said the 66Ah was more than enough even after I told him I had a winch, spots, etc.

So who's wrong? I'm guessing the Breno cat?

User avatar
DMH
Senior Member
Senior Member
Posts: 73
Joined: 01 Mar 2015 21:34
Full Name: Tejan Pillay
Nickname: Tej
Home Town: durban
Current 4x4: 95 Patrol SGL 4.2D,
02 Hardbody 3L TD
Home Language: english
Has thanked: 15 times
Been thanked: 1 time

Re: Alternator - 4.2 diesel GQ

Post by DMH » 20 Mar 2015 10:12

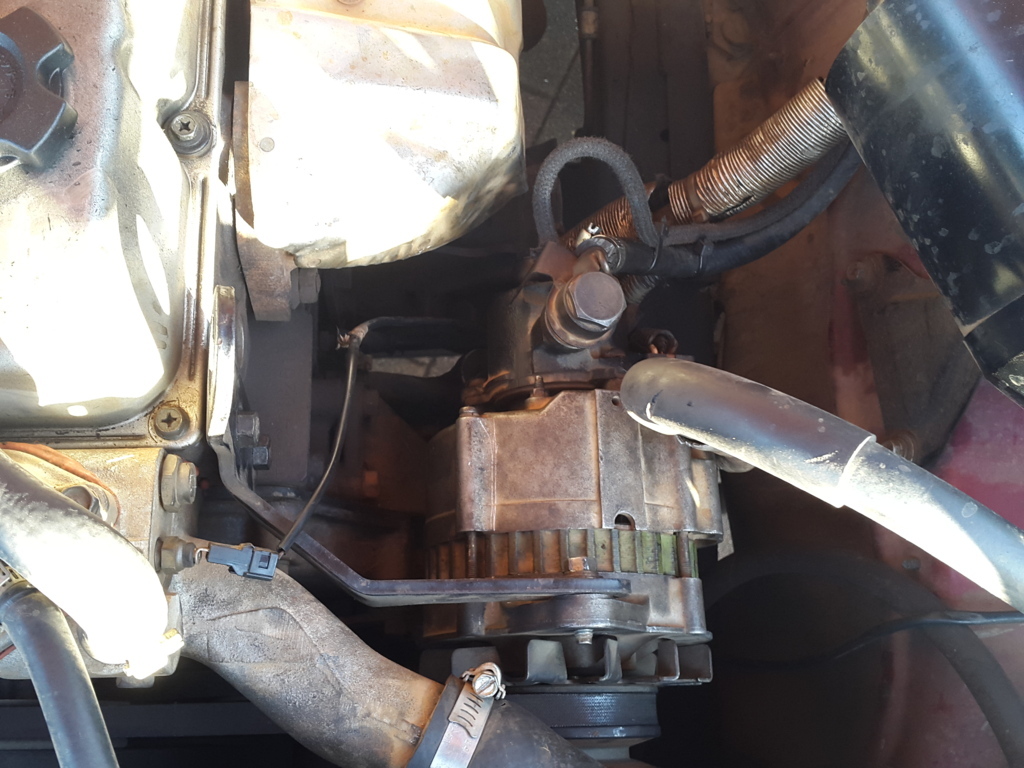

20150320_072154 (FILEminimizer).jpg
20150320_072154 (FILEminimizer).jpg (501.84 KiB) Viewed 1378 times

User avatar
DMH
Senior Member
Senior Member
Posts: 73
Joined: 01 Mar 2015 21:34
Full Name: Tejan Pillay
Nickname: Tej
Home Town: durban
Current 4x4: 95 Patrol SGL 4.2D,
02 Hardbody 3L TD
Home Language: english
Has thanked: 15 times
Been thanked: 1 time

Re: Alternator - 4.2 diesel GQ

Post by DMH » 20 Mar 2015 10:13

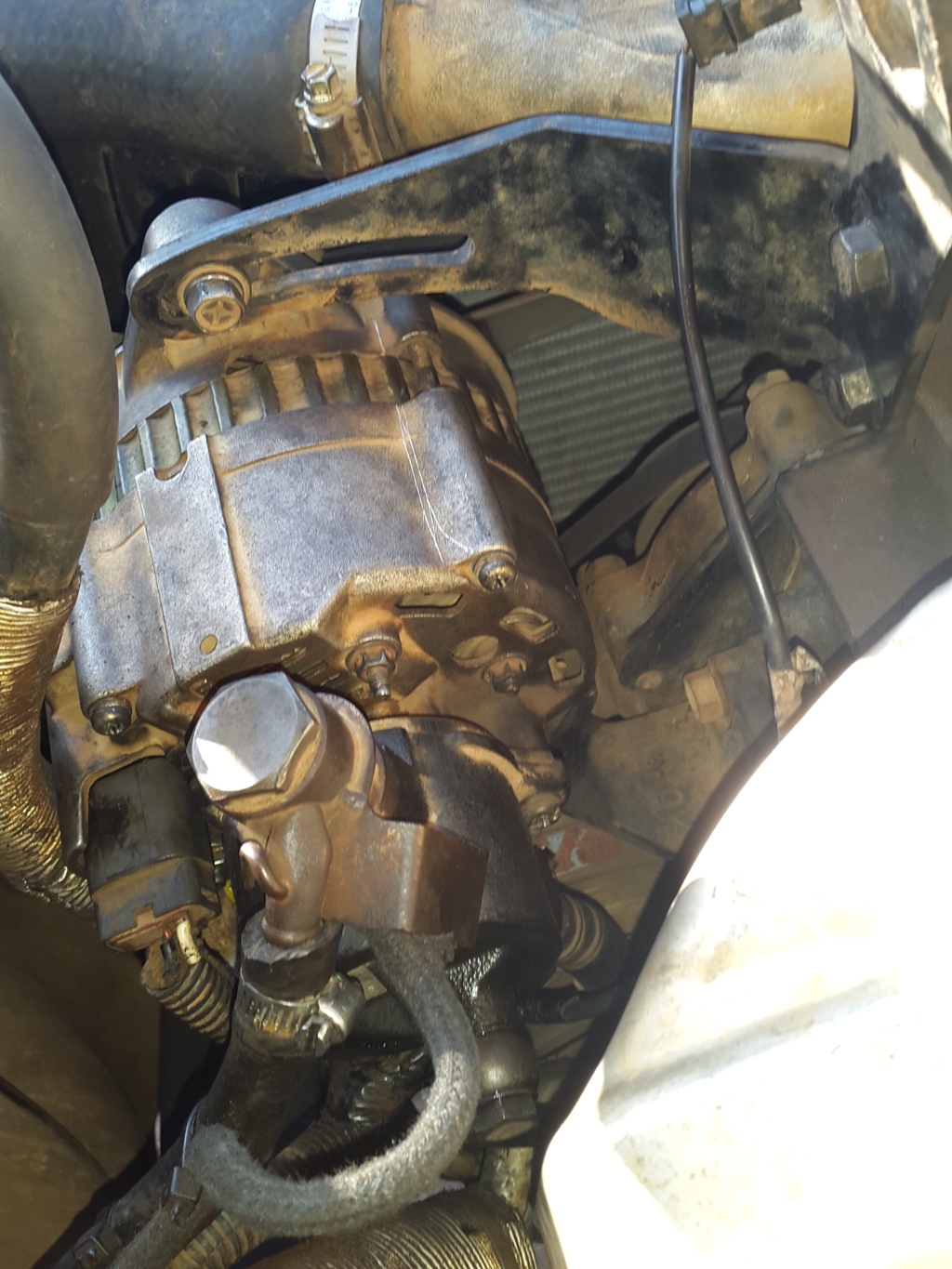

front view
Attachments
20150320_072033 (FILEminimizer).jpg
20150320_072033 (FILEminimizer).jpg (314.46 KiB) Viewed 1378 times

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5889
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 240 times
Been thanked: 247 times

Re: Alternator - 4.2 diesel GQ

Post by ricster » 20 Mar 2015 10:20

Let me ask you a question...... Isn't bigger better??.......hmmm enough said !!

Seriously though, I have a 90 Ah main battery. Piece of mind if I'm somewhere and need to charge my phone in the car for an hour or 2, or what about listening to the cricket on the radio for a few hours..... its very difficult to push start a 4.2 diesel with 22:1 compression ratio
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Peter Connan
Moderator
Posts: 5364
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 275 times
Been thanked: 349 times

Re: Alternator - 4.2 diesel GQ

Post by Peter Connan » 20 Mar 2015 15:03

It depends on your charging system and batteries.

If your second battery is a deep-cycle, you can't really push more than 25 Amps or so into it. Your main battery can only take say 40-45 A.

So, a 60A alterntor is enough, unless you get into a situation where you have flattened both batteries and need to charge them while simultaneously while also operating lights, air con etc.

There is however no disdvantage I know of in uprating, except for the cost.
Mag ons ons kenniskry met lekkerkry aanhoukry.
