Fitting 2nd battery under the Patrol

Post by ricster » 02 Oct 2013 08:39

Ok.... as the subject suggests, I want to fit my second battery under the Iron Maiden. Google wasn't my friend on this search, and managed to fins a little info on the Aussie site. I got a reply, believe it or not from a fellow South African guy....ha ha, who posted a link to a photo of what he had done.

See from post 18...

http://www.patrol4x4.com/forum/1319786-post18.html

Anyone done something like this?
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

Clem
Patrolman
Patrolman
Posts: 921
Joined: 19 Jun 2013 15:16
Full Name: Clem Daniel
Nickname: Clem
Home Town: Johannesburg
Current 4x4: Patrol 4.8
Home Language: English
Has thanked: 31 times
Been thanked: 28 times

Re: Fitting 2nd battery under the Patrol

Post by Clem » 02 Oct 2013 09:40

That is an excellent idea. The only issues are of course risk of damage and access when one wants to check the battery etc. But there really is no better plan I think. I saw the one behind the quarter panel as well but I think that that is less optimal than this solution. I need to climbing under my GRX and have a look and see where the equivalent space might be. If anyone is planning on making up those battery trays, please remember to include me in the order list! :-)

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5938
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 244 times
Been thanked: 255 times

Re: Fitting 2nd battery under the Patrol

Post by ricster » 02 Oct 2013 10:22

Yeah, I'm not keen on having a battery sitting in the cabin, even though the battery is a sealed unit, it just gives me the hibby gibbies. I agree, a little extra protection to the sides with a flap opening door to remove the battery would be perfect.

I'm going to play around with this idea....
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Tinus lotz
Moderator
Posts: 7063
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 557 times
Been thanked: 290 times

Re: Fitting 2nd battery under the Patrol

Post by Tinus lotz » 02 Oct 2013 10:39

Just use a lead cristal they are the correct one for the job

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5938
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 244 times
Been thanked: 255 times

Re: Fitting 2nd battery under the Patrol

Post by ricster » 02 Oct 2013 10:45

My current battery is still perfect.... not going to spend R3k or more for a new battery at the moment. The engine bay gets VERY hot and my Ctek registers temps higher than 50deg C and shuts off the charging to the battery. On our recent trip I could n't even rest my hand on the battery it was so hot..... this is not good for any battery irrespective of type. And besides I can then use that space for either compressor, or even fit a nice big air filter like whats in the 4.8 instead of the ZD30 airbox they fit when there is a turbo on the 4.2 diesels
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Grant
Patrolman 1000+
Patrolman 1000+
Posts: 1652
Joined: 29 Apr 2009 14:52
Full Name: Grant Francis
Nickname: Grant
Home Town: Mid Rand Estates
Current 4x4: Ford Ranger
Mini Countryman
Specialized Epic
Specialized Crave Single Speed
Home Language: English
Location: Midrand
Has thanked: 3 times
Been thanked: 21 times

Re: Fitting 2nd battery under the Patrol

Post by Grant » 02 Oct 2013 11:18

Hi Cedric,


I am going to do the same thing. Lots of space under the troll. Just the protection and correct location needs to be fine tuned.


Here are some ideas from the www

http://www.jegs.com/i/JEGS-Performance- ... Id=1714421
Specialized Epic

You can't expect to be old and wise
if you were never young and crazy

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5938
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 244 times
Been thanked: 255 times

Re: Fitting 2nd battery under the Patrol

Post by ricster » 02 Oct 2013 12:07

That setup is brilliant !!!!
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5938
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 244 times
Been thanked: 255 times

Re: Fitting 2nd battery under the Patrol

Post by ricster » 02 Oct 2013 15:09

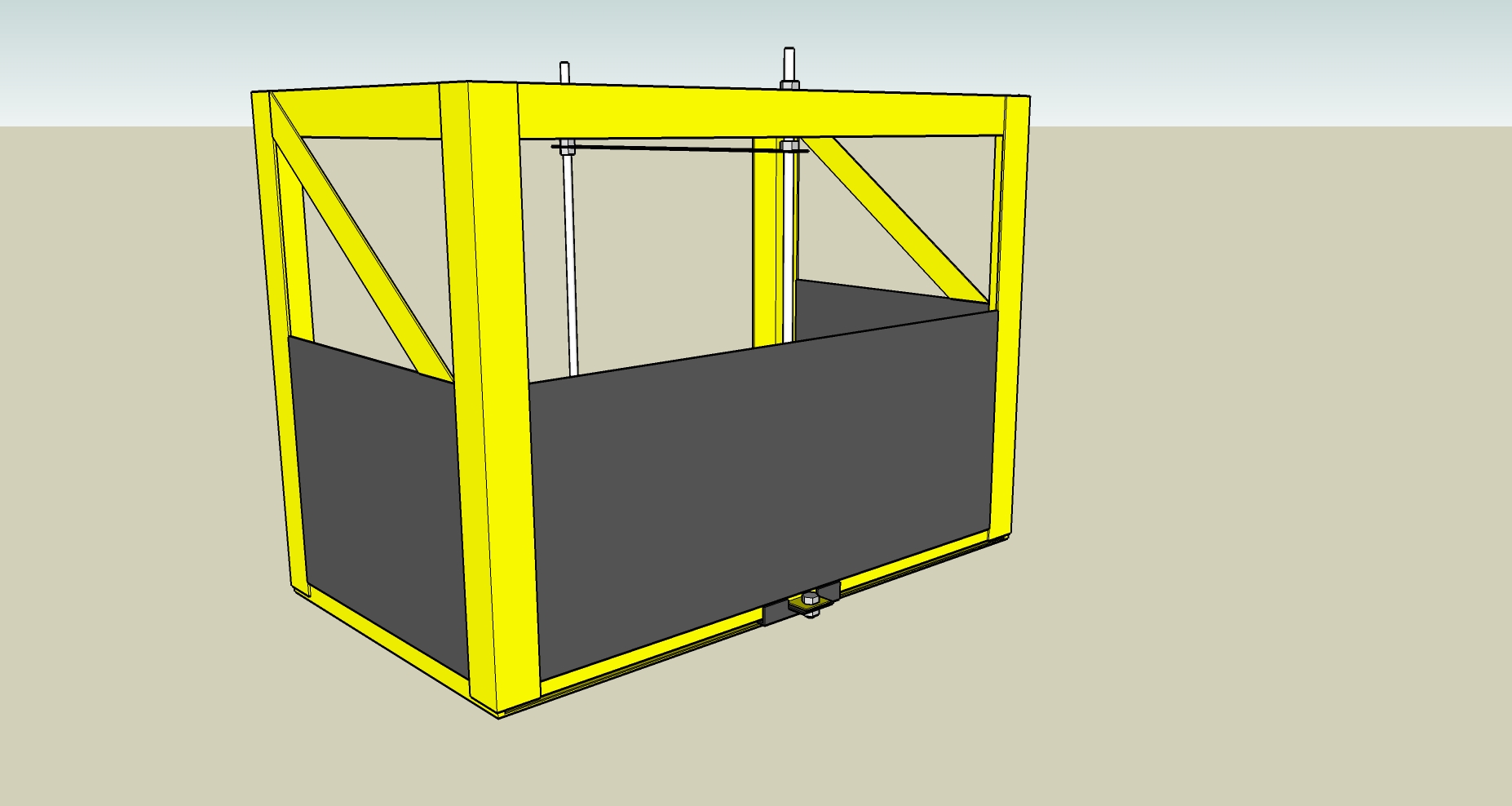

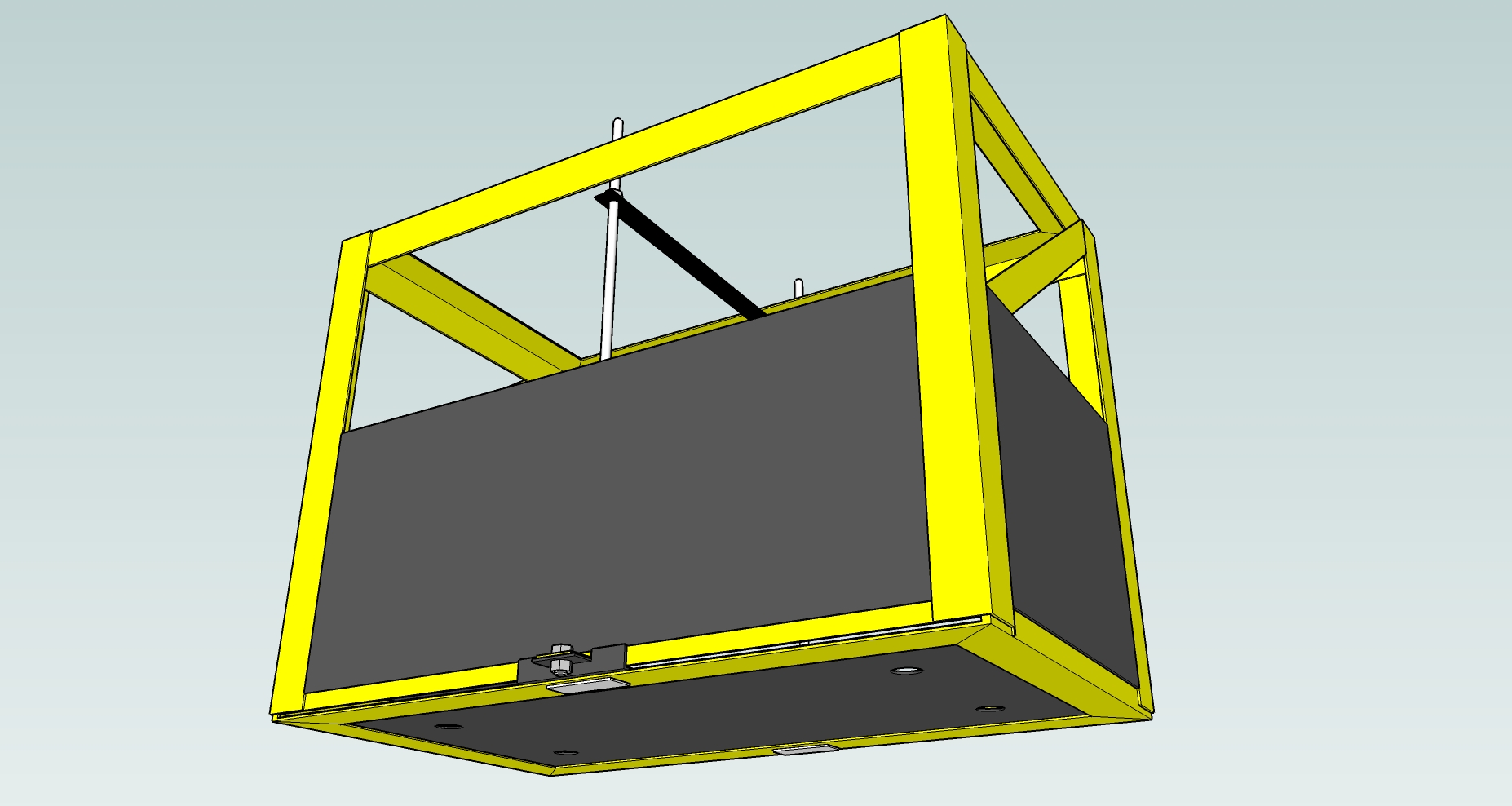

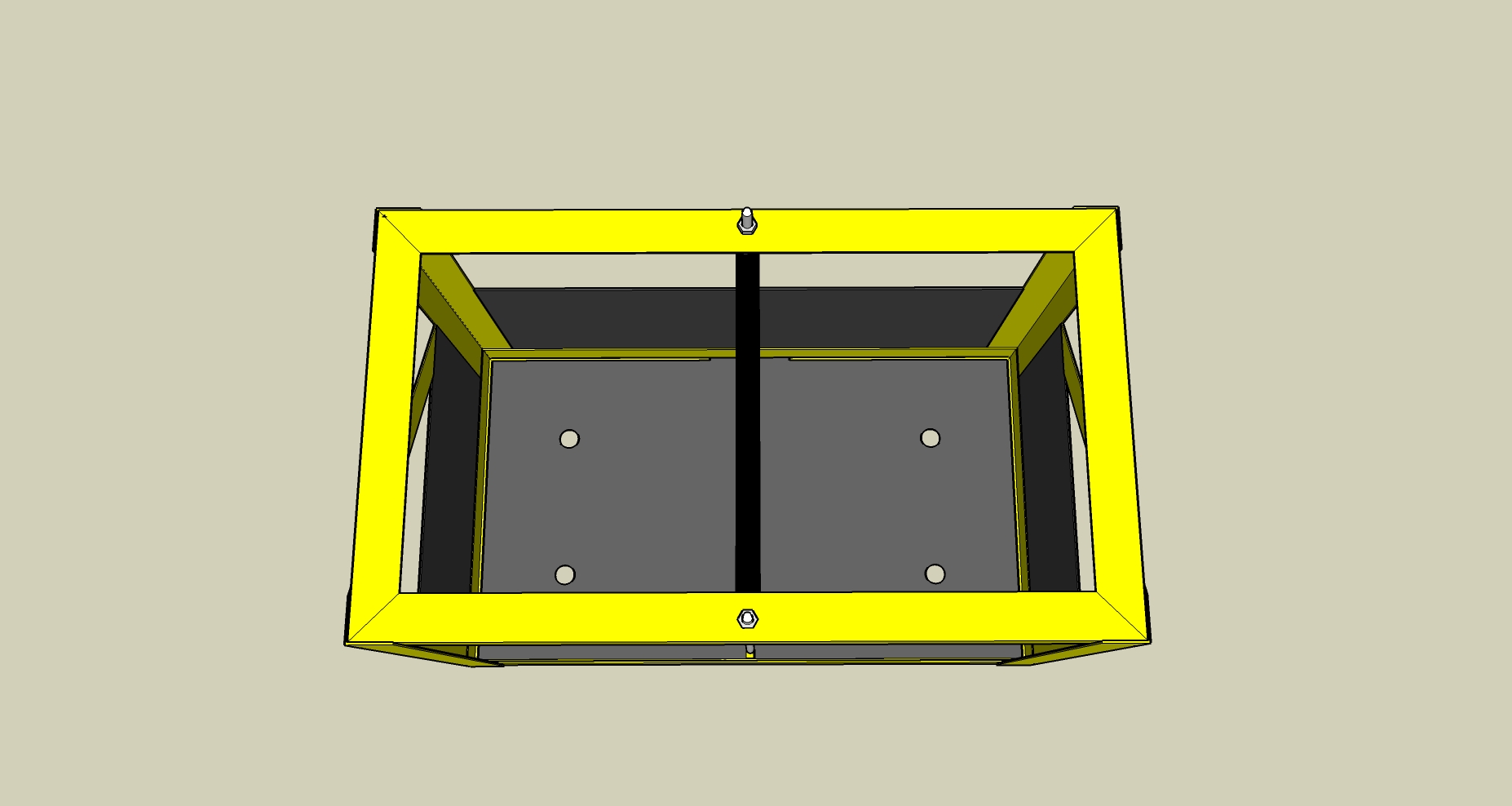

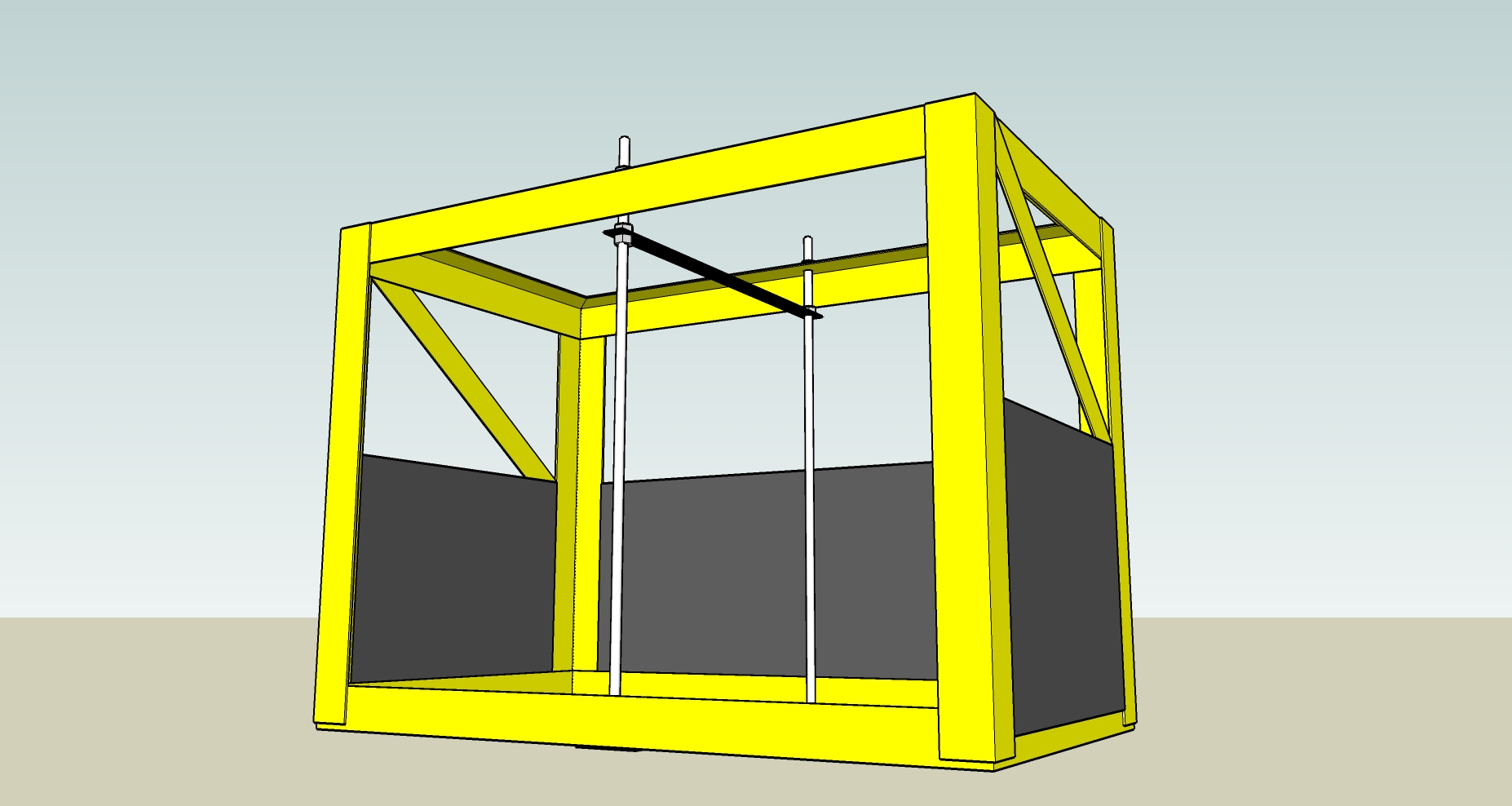

Just for starters....

Basic 25 x 25 angle iron frame work, with a slot in the front to allow the floor plate with water drain holes to slide out. Steel plate halfway up sides for protection and strength. Open side fixes to chassis.
To fit the battery in...

1) Battery clamp height to be adjusted and locked at correct height for battery on the threaded rod. This will be the rod closest to the chassis. The rod is fixed permanently to the top of the angle iron frame and to the bottom of the angle iron frame. Once this height is set you shouldn't need to worry with that again.

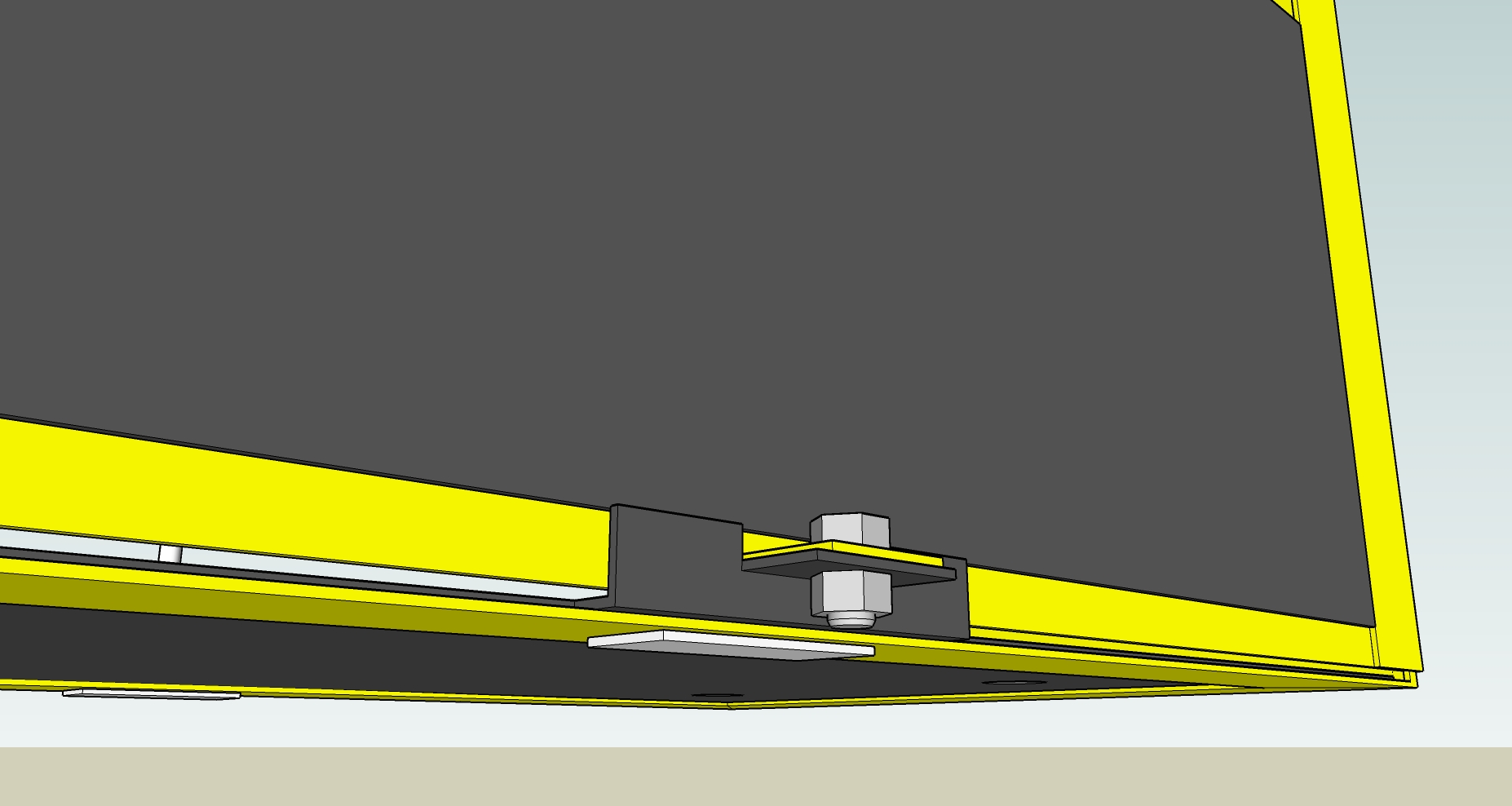

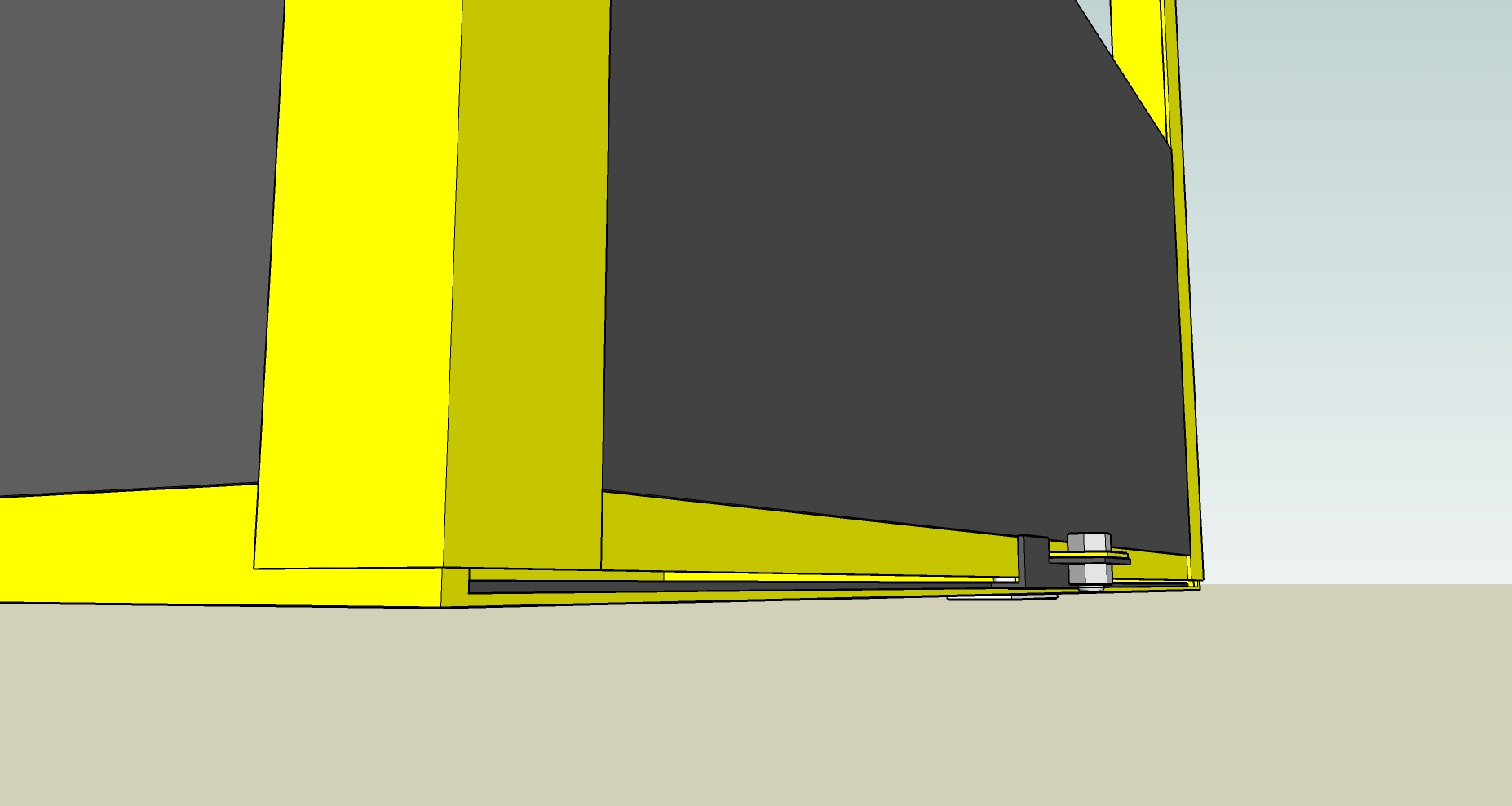

2) A little strength needed to lift the battery into the box from the bottom, and then slide the base plate in to hold everything in place. The second threaded rod fits into the hole in the bottom of the box opposite side to chassis and through the bracket that will hold the battery down. This also secures the base plate in place. There is a slot cut out of the base plate that the battery sits on.
