Mutter, mutter...dummy tail lights

User avatar
Marino4x4
Patrolman
Patrolman
Posts: 574
Joined: 19 Oct 2011 12:15
Full Name: Marinus Potgieter
Nickname: Marino4x4
Home Town: Bloemfontein
Current 4x4: Nissan Patrol
Home Language: Afrikaans
Location: Bloemfontein
Has thanked: 15 times
Been thanked: 68 times

Re: Mutter, mutter...dummy tail lights

Post by Marino4x4 » 25 Jul 2013 12:54

Hi Chris

I got them from Builder Warehouse. All you need to do is push the wire that you cleaned the tip of into the hole. It lock in there with a wedging effect. If you want to connect 2 wires, you will need the block with 2 holes, 3 wires-3hole and so on ... I then took a silicone gun and plugged the holes to make sure I do not get any trouble when going through deep water.

A Youtube video about the connectors:

http://www.youtube.com/watch?v=Sk0-8RKG0so

Cheers
Patrol 4.5 GL 1998

Terrain 4X4 Parts

User avatar
Tony
Senior Member
Senior Member
Posts: 308
Joined: 06 Feb 2010 14:58
Full Name: Antonio Barone
Nickname: Tony
Home Town: Randburg
Current 4x4: Nissan Patrol 4.8 GRX
Home Language: English
Been thanked: 27 times

Re: Mutter, mutter...dummy tail lights

Post by Tony » 25 Jul 2013 20:29

Hi Clem, give Graham Cummings a call, when he did my 185 000 service a couple of weeks ago he asked me if I wanted a proper set of rear lights. He popped them in, only thing is, the bottom lights have to be disconnected, and the connectors moved up to the new lights. He has lights in stock.
Cheers.

User avatar
Chris Skinner
Patrolman
Patrolman
Posts: 945
Joined: 26 Nov 2009 12:58
Full Name: Chris Skinner
Nickname: Chris
Home Town: Centurion
Current 4x4: Nissan Patrol 4,8 GRX 2005
Home Language: English
Has thanked: 10 times
Been thanked: 56 times

Re: Mutter, mutter...dummy tail lights

Post by Chris Skinner » 25 Jul 2013 22:30

On my vehicle I still have the bottom lights working, as well as the moddified top ones. There is a separate wiring harness at the top light fitting all ready for connecting...

User avatar
Jorrie
Patrolman 1000+
Patrolman 1000+
Posts: 2392
Joined: 21 Jun 2011 18:55
Full Name: Jacobus Jordaan
Nickname: Jorrie
Home Town: Pretoria
Current 4x4: 1998 Nissan Patrol 4500 GRX, 2011 Zook
Home Language: English/Afrikaans
Location: Pretoria
Has thanked: 109 times
Been thanked: 88 times

Re: Mutter, mutter...dummy tail lights

Post by Jorrie » 26 Jul 2013 06:04

Be careful not to break those uppuer tail light when taking them out.
On older cars their lugs might be brittle.
Jorrie
4500 GRX
Jimny

Daniel
Full Member
Full Member
Posts: 39
Joined: 13 Jan 2010 12:03
Full Name: Daniel Nelson
Nickname: Dan
Home Town: Cape st Francis
Current 4x4: 2007 Patrol 3.0 GL
Home Language: ENGLISH
Has thanked: 2 times
Been thanked: 8 times

Re: Mutter, mutter...dummy tail lights

Post by Daniel » 26 Jul 2013 07:51

I used second hand Subara tail light harnesses, filed slots in the holes I drilled in the back of the light cluster which enables the globe fittings to latch tightly and the rubber seals against water ingress. I also fitted 4 pin male/ female push on connectors enabling easy removal of the light cluster and globe removal as well. My choice was tail light top, middle reverse light and stop light/ tail light combination for bottom fitting. I will try and attach pics!! Ps.
Attachments

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5689
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 201 times
Been thanked: 230 times

Re: Mutter, mutter...dummy tail lights

Post by ricster » 26 Jul 2013 09:23

Mine work on both bottom and on top. There is a plug lying loose on both sides, just waiting to be plugged in..... but... you may want to check the wiring. My new lights ( from UAE ) has indicator ( orange lenses ) on top, clear reverse on BOTH sides, and red on the bottom. The harness, if I recall is a plug and play and works the correct globes for the colour lens ( basically for the light cluster I now have fitted, not the std SA light cluster). If you keep your original light cluster, you can't have the indicators working, as there are no orange lenses, so a different wiring setup is needed.

That said, when I added globes to my original light cluster, I made the top brake and tail light, the bottom only brake, and then the middle clear lense was reverse, and the middle red one on the other side, I ran new wiring through a switch and relay to serve as a fog light. This was fantastic when traveling to Moz through Ermelo and similar areas when the fog was thick.
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

dieselfan
Senior Member
Senior Member
Posts: 326
Joined: 27 Feb 2010 23:39
Full Name: Roy Markham
Nickname: Roy
Home Town: Kempton Park
Current 4x4: Patrol 4.8
Home Language: English
Has thanked: 2 times
Been thanked: 2 times

Re: Mutter, mutter...dummy tail lights

Post by dieselfan » 06 Aug 2013 23:38

Chris Skinner wrote:On my vehicle I still have the bottom lights working, as well as the moddified top ones. There is a separate wiring harness at the top light fitting all ready for connecting...
Do you have a "how to" Chris? I laughed when reading Clem's post cause when I picked up my Patrol I kakked out the owner for these not working :think: only to be told it's dummies. I've also got an 05 like you and don't fancy drilling anything if them wires aren't there :redface:

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5689
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 201 times
Been thanked: 230 times

Re: Mutter, mutter...dummy tail lights

Post by ricster » 07 Aug 2013 08:42

The wiring harness even on a '05, I'm 99.9% sure is there. You can have a fiddle around by the jack "store" compartment and with delicate handwork you can get your hand in the little opening to feel around for the harness plug, which again if I recall is lying loose.

I'm just trying to think back, so I may be wrong on a few things here regarding removing the light cluster. There are 2x 10mm nuts that you have to loosen from the inside and the cluster is held in place with 2, what looks like small bleed nipples that click into a small plastic cup. BE VERY CAREFUL when removing the cluster, as these can break. The cluster on the '05 is different to my "99 model cluster, but I think they used the same principle. You have to GENTLY pry it apart. By removing the cluster you will easily see the harness and plug. Then you can make the decision as to cut or not. Putting everything back is just in reverse.
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

AndriesS
Patrolman
Patrolman
Posts: 588
Joined: 01 Feb 2010 07:42
Full Name: Andries
Nickname: None
Home Town: None
Current 4x4: None
Home Language: Afrikaans
Has thanked: 12 times
Been thanked: 18 times

Re: Mutter, mutter...dummy tail lights

Post by AndriesS » 07 Aug 2013 09:38

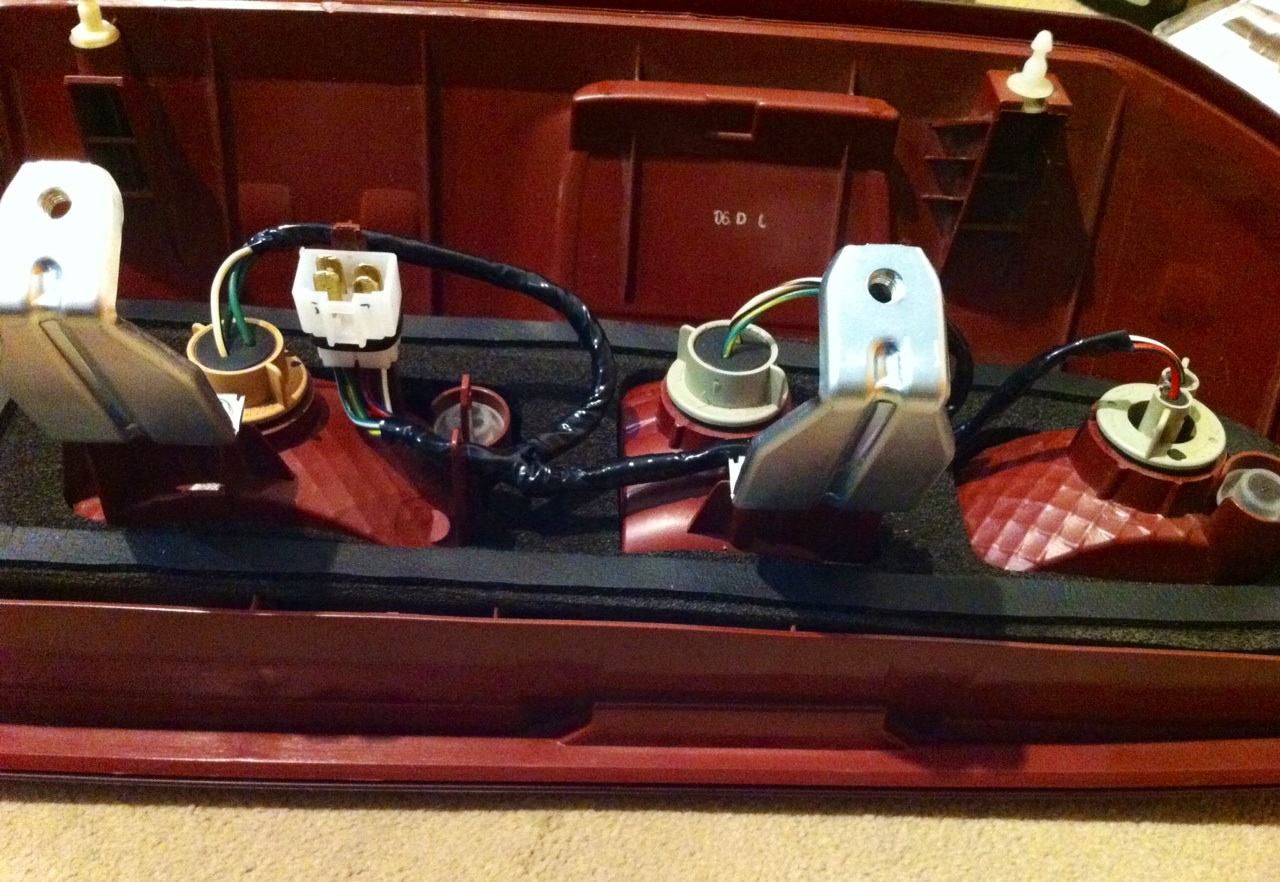

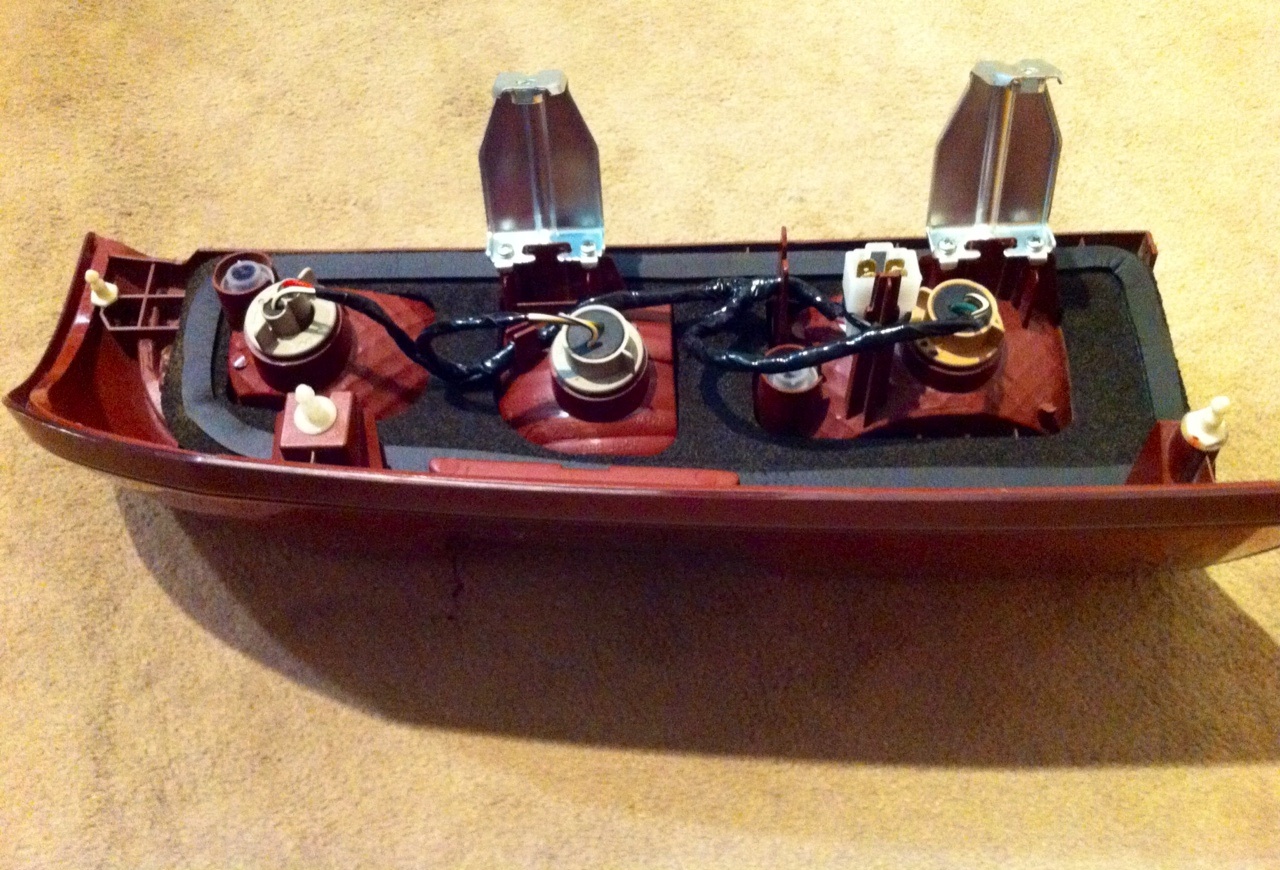

Yip 05+ models lights are the same, in the pic you can see the white clips and there position, as well as the metal bracket where the nuts fasten to.

Clem
Patrolman
Patrolman
Posts: 921
Joined: 19 Jun 2013 15:16
Full Name: Clem Daniel
Nickname: Clem
Home Town: Johannesburg
Current 4x4: Patrol 4.8
Home Language: English
Has thanked: 31 times
Been thanked: 28 times

Re: Mutter, mutter...dummy tail lights

Post by Clem » 15 Nov 2013 07:56

Tony wrote:Hi Clem, give Graham Cummings a call, when he did my 185 000 service a couple of weeks ago he asked me if I wanted a proper set of rear lights. He popped them in, only thing is, the bottom lights have to be disconnected, and the connectors moved up to the new lights. He has lights in stock.
Cheers.
Anyone got contact details for Graham for me? E-mail address and phone number would be useful?

Best,
Clem

Post Reply
