Mutter, mutter...dummy tail lights

Post by Clem » 24 Jul 2013 15:57

So the other day I take a good look at the tail lights on my vehicle and I realise that only the ones in the bumper are actually working lights – the others next to the doors are simply dummies – they have no bulbs (something I am given to understand is seen in other makes of vehicles as well). Says me to self "What kind of stupidity is this?". So off I go to the local dealership and hang over the computer screen together with the guy at the spares department. He types in the VIN number of the vehicle and it shows replacement tail-lights, complete with electrical harness and globes. These are duly ordered and paid for, at no small expense. I get a call from the fellow today. The replacements have arrived and… Lo and behold, they are also dummies. Now he is trying to sort something out!

User avatar
JohnBoyZA
Site Admin
Posts: 1136
Joined: 02 Apr 2009 14:34
Full Name: John Murray
Nickname: John Boy
Home Town: Bloubergstrand
Current 4x4: Patrol GRX 4.8
Home Language: Afrikaans/English
Location: Big Bay, Cape Town
Has thanked: 194 times
Been thanked: 57 times

Re: Mutter, mutter...dummy tail lights

Post by JohnBoyZA » 24 Jul 2013 16:43

Hi Clem

I remember this topic being raised in an earlier post. Reason? If I remember correctly it had something to do with the spare wheel partially blocking the right rear lights - SA traffic legislation - or something like that. I actually had mine done when I replaced my bumper, but something you could easily tackle yourself on a Sat morning. Makes a BIG difference having the additional lights.
Nissan Patrol, GRX, 4.8 (GU Y61)
Flickr: http://www.flickr.com/photos/jhemurray/sets/

User avatar
Marino4x4
Patrolman
Patrolman
Posts: 598
Joined: 19 Oct 2011 12:15
Full Name: Marinus Potgieter
Nickname: Marino4x4
Home Town: Bloemfontein
Current 4x4: Nissan Patrol
Home Language: Afrikaans
Location: Bloemfontein
Has thanked: 16 times
Been thanked: 76 times

Re: Mutter, mutter...dummy tail lights

Post by Marino4x4 » 24 Jul 2013 16:46

Hi Clem

Have a look at this:

http://patrol4x4.co.za/viewtopic.php?f= ... ght#p26135

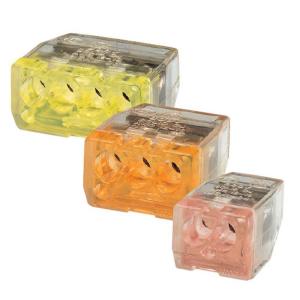

I have also done my lights. Cost me no more than R200 for connectors and bulbs. I used these connectors:
Put some silicone in to prevent a short in water. I also put some nice LED bulbs in. You can order the lights from Aus with connectors and light fittings. Not sure what the cost is.

Oh, sorry. Here is an e-bay link:

http://www.ebay.com.au/bhp/nissan-patrol-gu-tail-lights

Hope this helps. :thumbup:
Patrol 4.5 GL 1998

Terrain 4X4 Parts

Clem
Patrolman
Patrolman
Posts: 921
Joined: 19 Jun 2013 15:16
Full Name: Clem Daniel
Nickname: Clem
Home Town: Johannesburg
Current 4x4: Patrol 4.8
Home Language: English
Has thanked: 31 times
Been thanked: 28 times

Re: Mutter, mutter...dummy tail lights

Post by Clem » 24 Jul 2013 17:10

JohnBoyZA wrote:Hi Clem

I remember this topic being raised in an earlier post. Reason? If I remember correctly it had something to do with the spare wheel partially blocking the right rear lights - SA traffic legislation - or something like that. I actually had mine done when I replaced my bumper, but something you could easily tackle yourself on a Sat morning. Makes a BIG difference having the additional lights.
Many thanks John. It turns out that it is actually an Australian legal issue, not a South African one.


Kind regards,
Clem
Last edited by Clem on 24 Jul 2013 17:21, edited 1 time in total.

Clem
Patrolman
Patrolman
Posts: 921
Joined: 19 Jun 2013 15:16
Full Name: Clem Daniel
Nickname: Clem
Home Town: Johannesburg
Current 4x4: Patrol 4.8
Home Language: English
Has thanked: 31 times
Been thanked: 28 times

Re: Mutter, mutter...dummy tail lights

Post by Clem » 24 Jul 2013 17:12

Marino4x4 wrote:Hi Clem

Have a look at this:

http://patrol4x4.co.za/viewtopic.php?f= ... ght#p26135

I have also done my lights. Cost me no more than R200 for connectors and bulbs. I used these connectors:
Put some silicone in to prevent a short in water. I also put some nice LED bulbs in. You can order the lights from Aus with connectors and light fittings. Not sure what the cost is.

Oh, sorry. Here is an e-bay link:

http://www.ebay.com.au/bhp/nissan-patrol-gu-tail-lights

Hope this helps. :thumbup:
Thank you Marino. I am now just wondering (a) whether to hope that the parts guy will not find the correct part and I will get a refund and (b) whether the 2010 units will fit on my vehicle.

User avatar
Chris Skinner
Patrolman
Patrolman
Posts: 947
Joined: 26 Nov 2009 12:58
Full Name: Chris Skinner
Nickname: Chris
Home Town: Centurion
Current 4x4: Nissan Patrol 4,8 GRX 2005
Home Language: English
Has thanked: 10 times
Been thanked: 56 times

Re: Mutter, mutter...dummy tail lights

Post by Chris Skinner » 24 Jul 2013 17:55

Clem, ask for your money back and save yourself the cost. I did mine with a very minor mod - the electrical wiring is right there and you just drill a hole big enough into the plastic wall at the back of the light housing and slip in a bulb fitting that costs about R20 each. Works a treat. A nice Saturday morning project. :oldtimer:

User avatar
Herrie
Moderator
Posts: 3761
Joined: 08 Apr 2009 07:17
Full Name: Kobus Pienaar
Nickname: Herrie
Home Town: Kempton Park
Current 4x4: 1999 Patrol 4500e GRX
1983 Datsun Safari
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 70 times
Been thanked: 98 times

Re: Mutter, mutter...dummy tail lights

Post by Herrie » 24 Jul 2013 20:24

I did the same as Chris and it will cost you very little!
Herrie op Safari/Patrollie
1983 Safari
1999 Patrol 4500 GRX

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5893
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 240 times
Been thanked: 247 times

Re: Mutter, mutter...dummy tail lights

Post by ricster » 25 Jul 2013 09:31

I did it to mine a few years back, then my boss clipped the back of the Iron Maiden and broke the lens on the back left tail light. Luckily Wilfred ( forum member was in the UAE at the time and he bought on my behalf the tail lights that already have the globes and connectors in.... basically plug and play/drive. The best was that it was, if I recall half the price of the SA ones that are globe-less dummies.

I still have the old tail lights, so I'll take a few pics of the setup and post then here. It really is an easy process and the hardest part for me was getting the courage to cut the existing plug on the wiring harness to connect the Midas globe holders to.
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5893
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 240 times
Been thanked: 247 times

Re: Mutter, mutter...dummy tail lights

Post by ricster » 25 Jul 2013 09:41

hang on a minute..... here is something....

viewtopic.php?f=48&t=11&hilit=tail+ligh ... =30#p24045

and although my tail lights are different to yours ( Mine is a 99 model).... but these are the UAE spec ones ( note the reverse light on both sides)

viewtopic.php?f=53&t=2794&hilit=tail+light#p28946

or you could ask Graham to do the mod for you...

viewtopic.php?f=53&t=3619&p=39341&hilit ... ght#p39341
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Chris Skinner
Patrolman
Patrolman
Posts: 947
Joined: 26 Nov 2009 12:58
Full Name: Chris Skinner
Nickname: Chris
Home Town: Centurion
Current 4x4: Nissan Patrol 4,8 GRX 2005
Home Language: English
Has thanked: 10 times
Been thanked: 56 times

Re: Mutter, mutter...dummy tail lights

Post by Chris Skinner » 25 Jul 2013 10:16

Marino - what type of connectors are those that you show above? I dont know of them.
