The Bigger The Better Trailing arms

Post by TijmenvdS » 04 Oct 2018 15:28

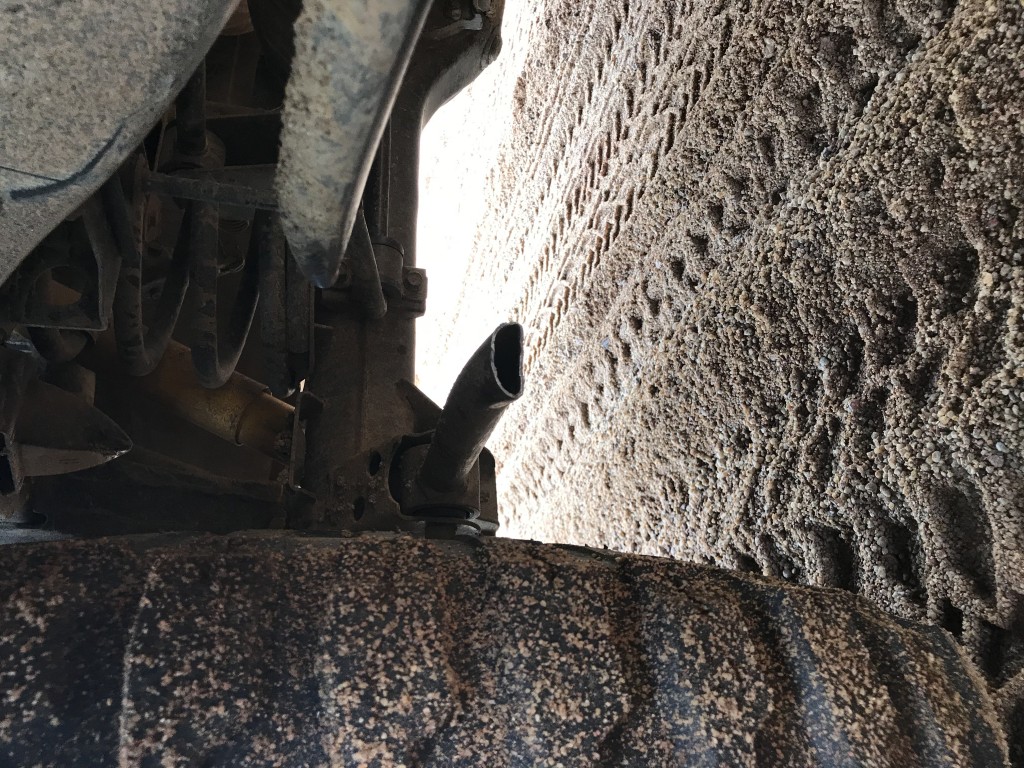

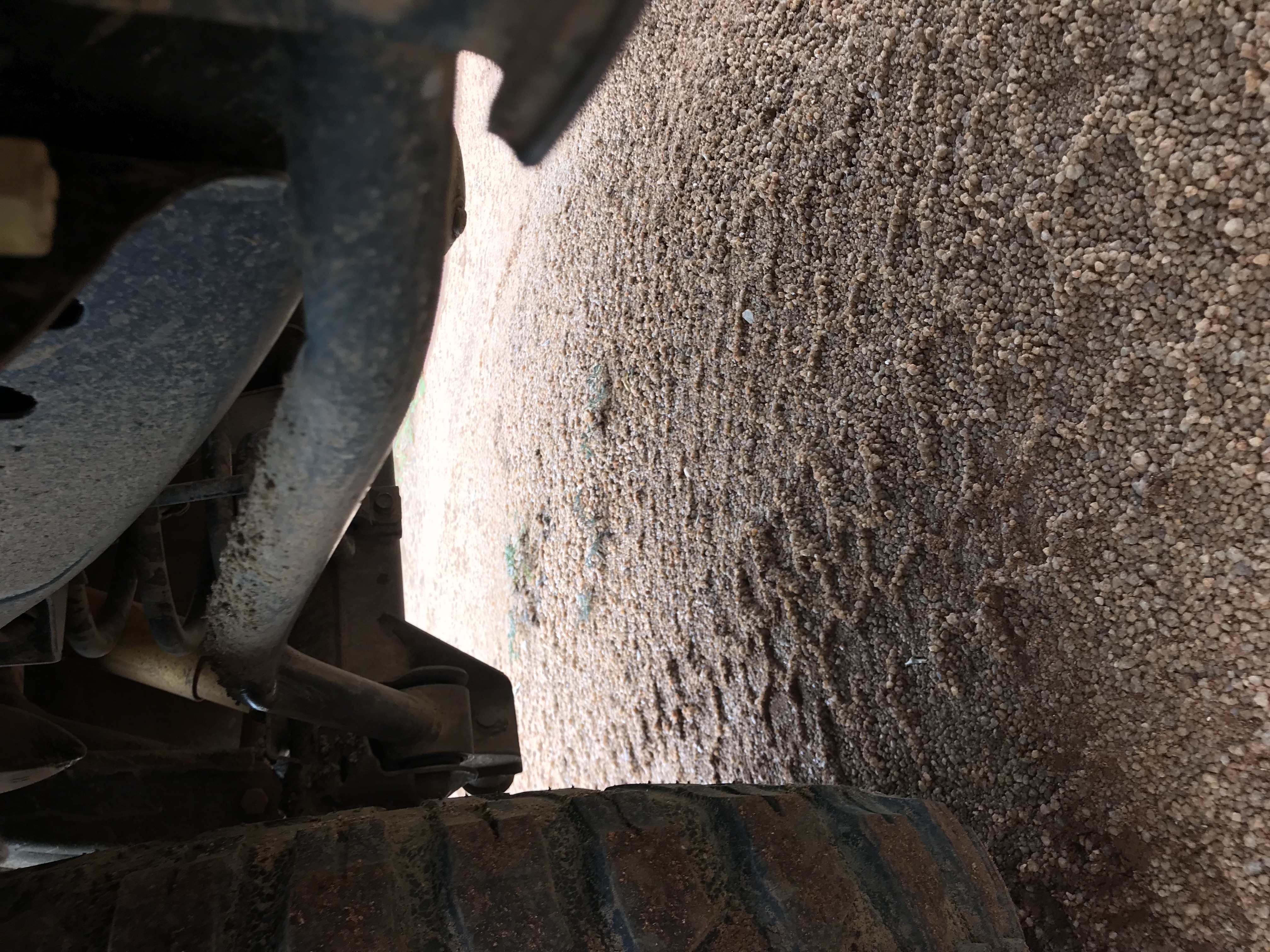

Almost a year ago I bent a rear Trailing arm on my GQ at Moegatle, trying to follow a pipe car on 37" :rolleyes:

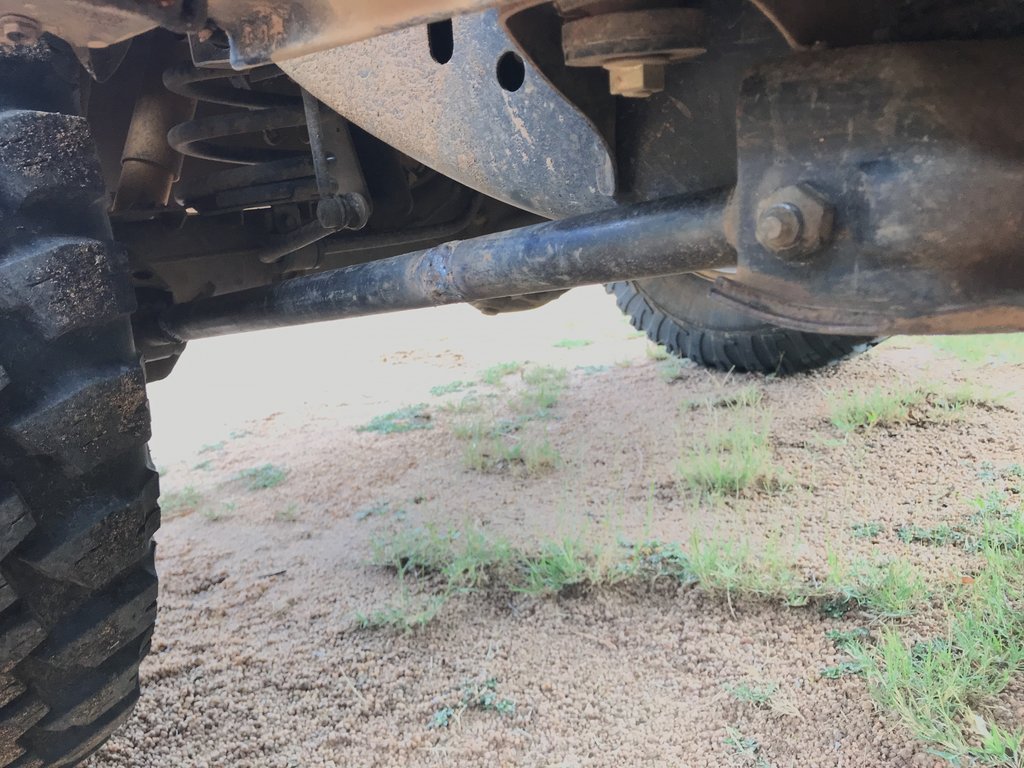

I borrowed Oom Alex Fullard's shed and found some old pipes that fit together perfectly and fixed it just to get home...8 months later I have done 3 provinces, River trip and a trip to the Transkei towing 3 tonnes and it it still holding, luckily.

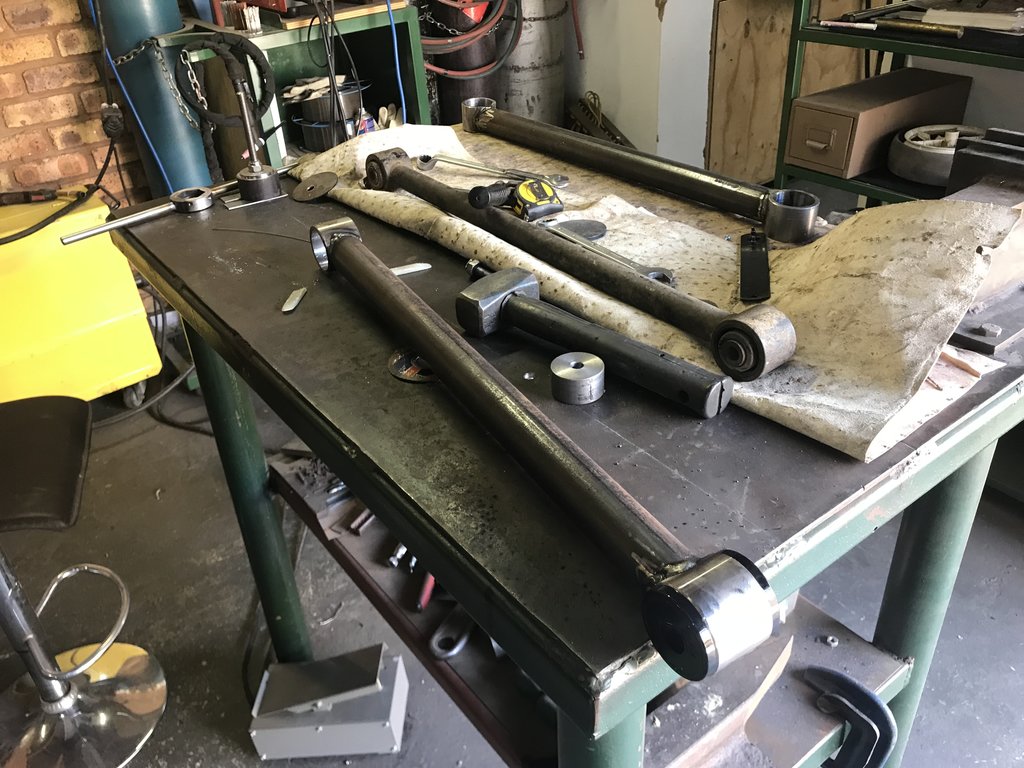

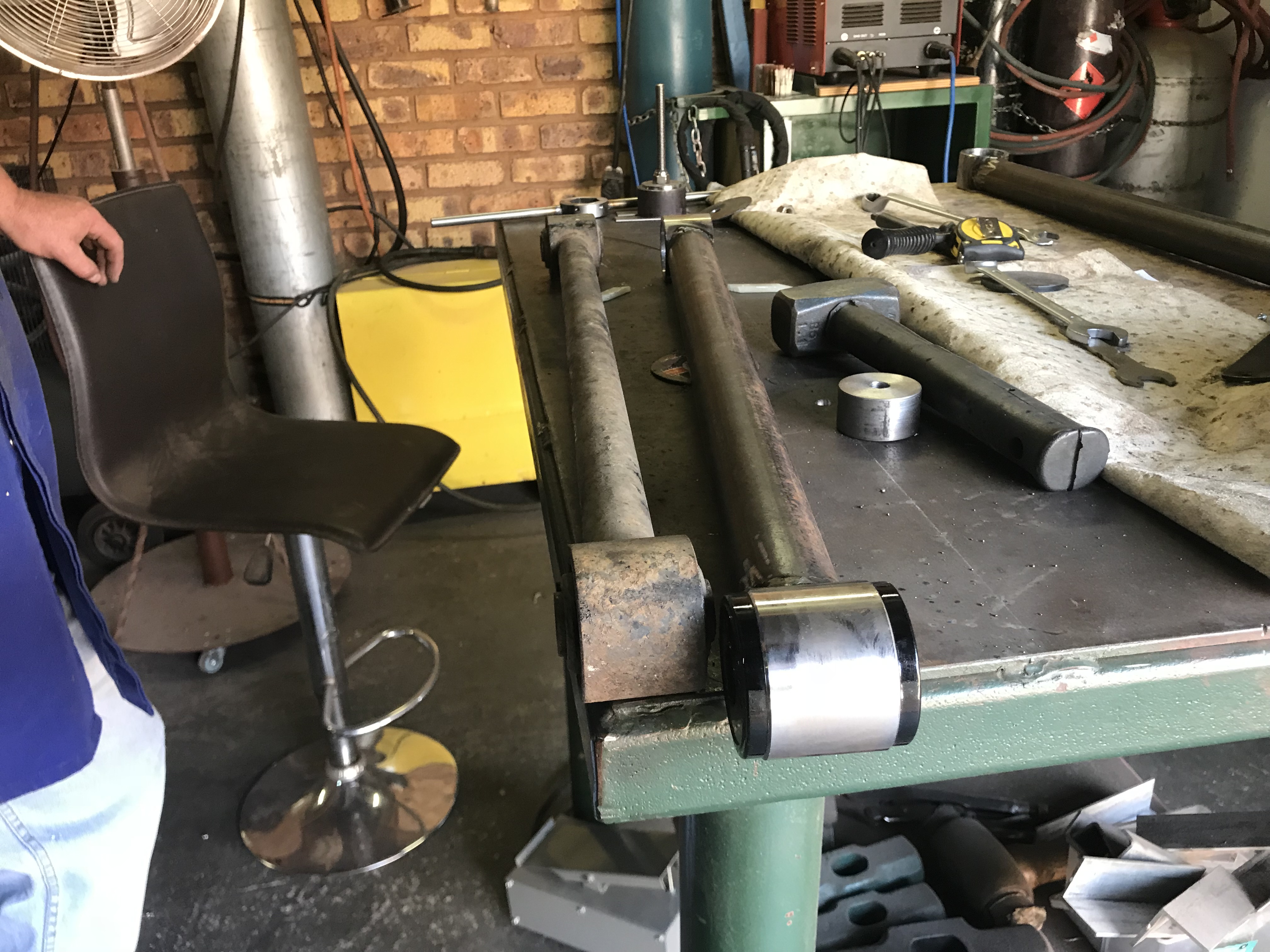

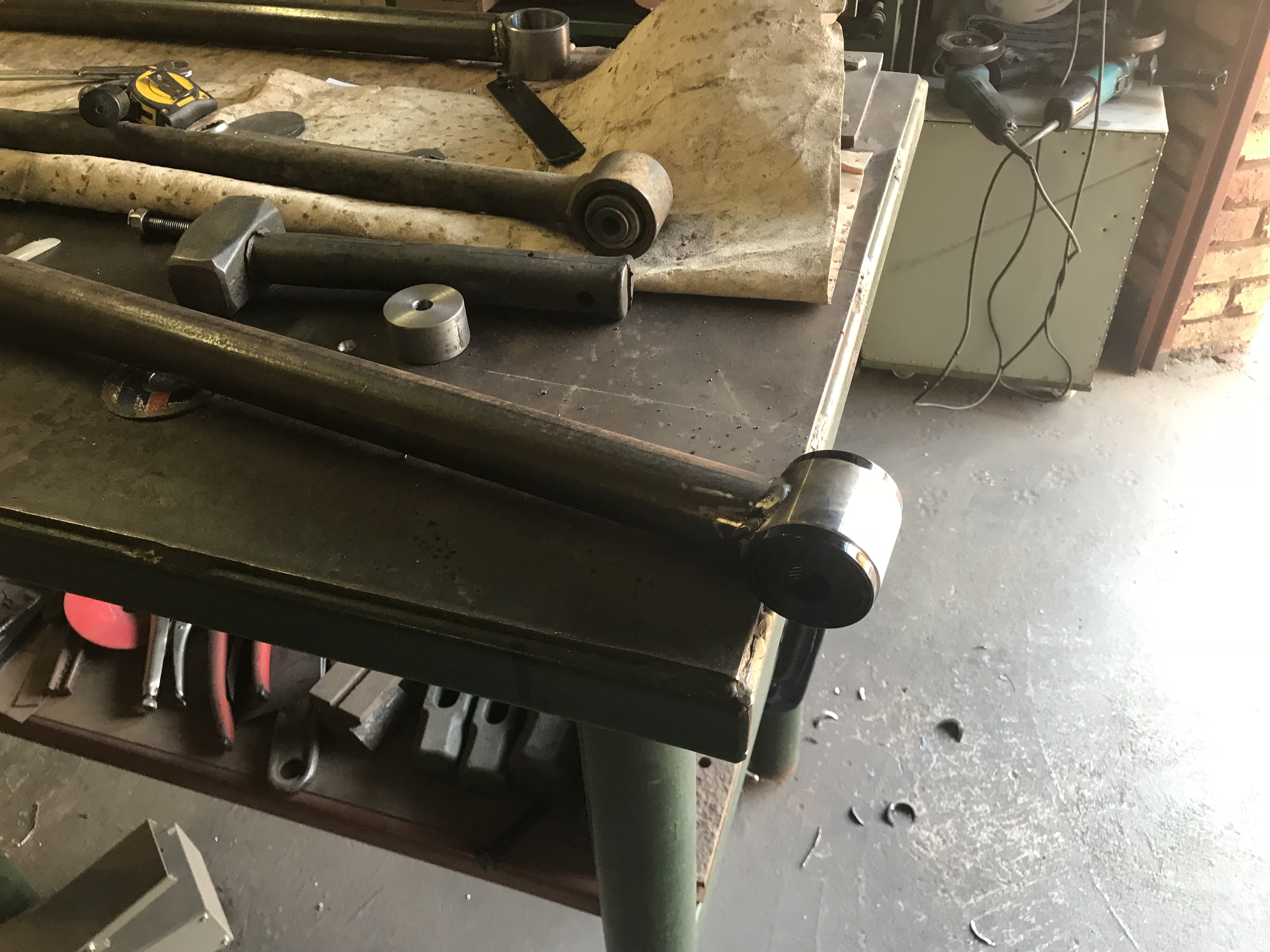

Finally got around to having some new and stronger arms made and putting some nice new terrain tamer bushes in and hopefully sorting out some wobbles as well.

It is R2200 per set if anyone would also like to correct probably the weakest point on a Patrol.

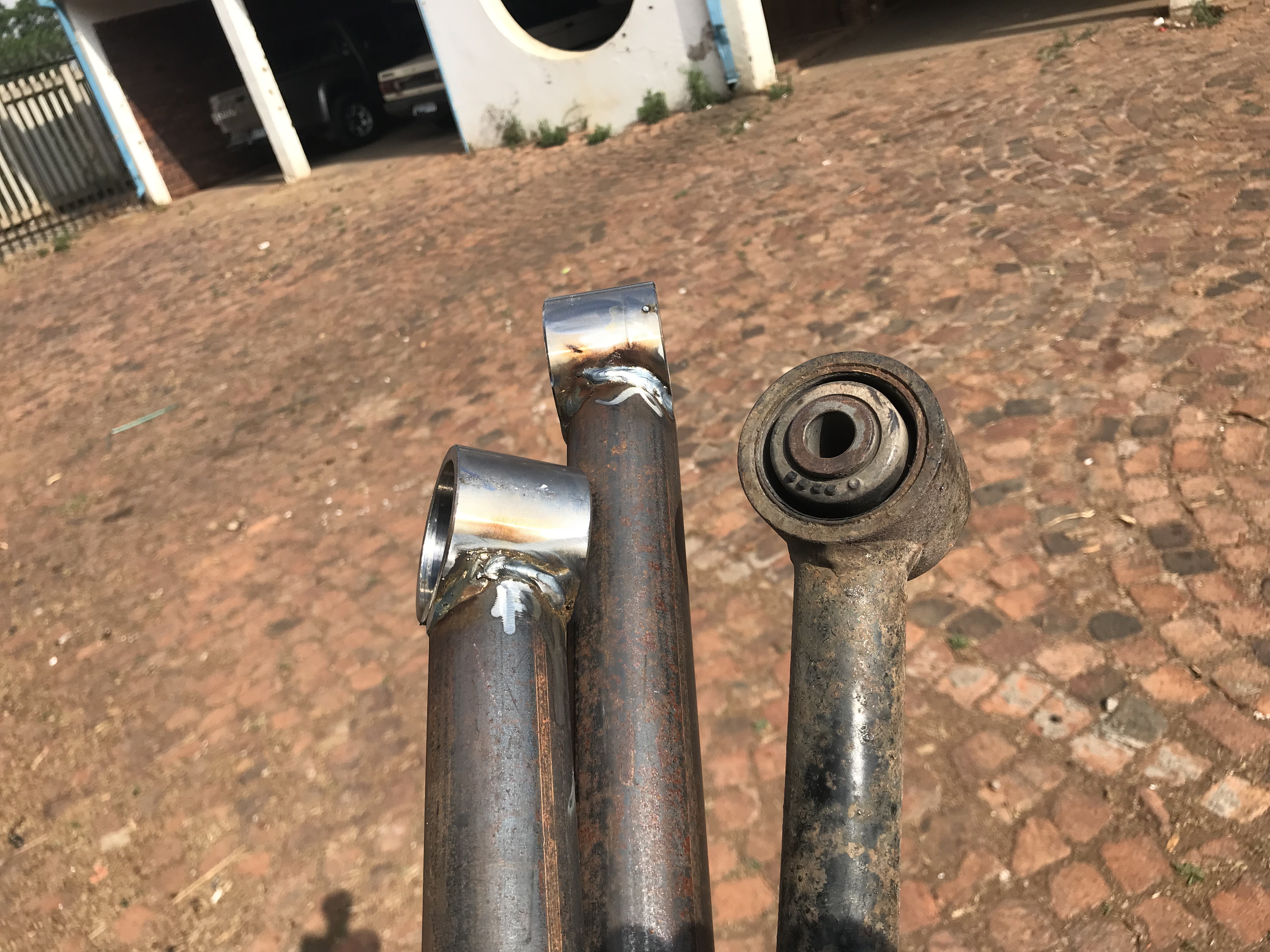

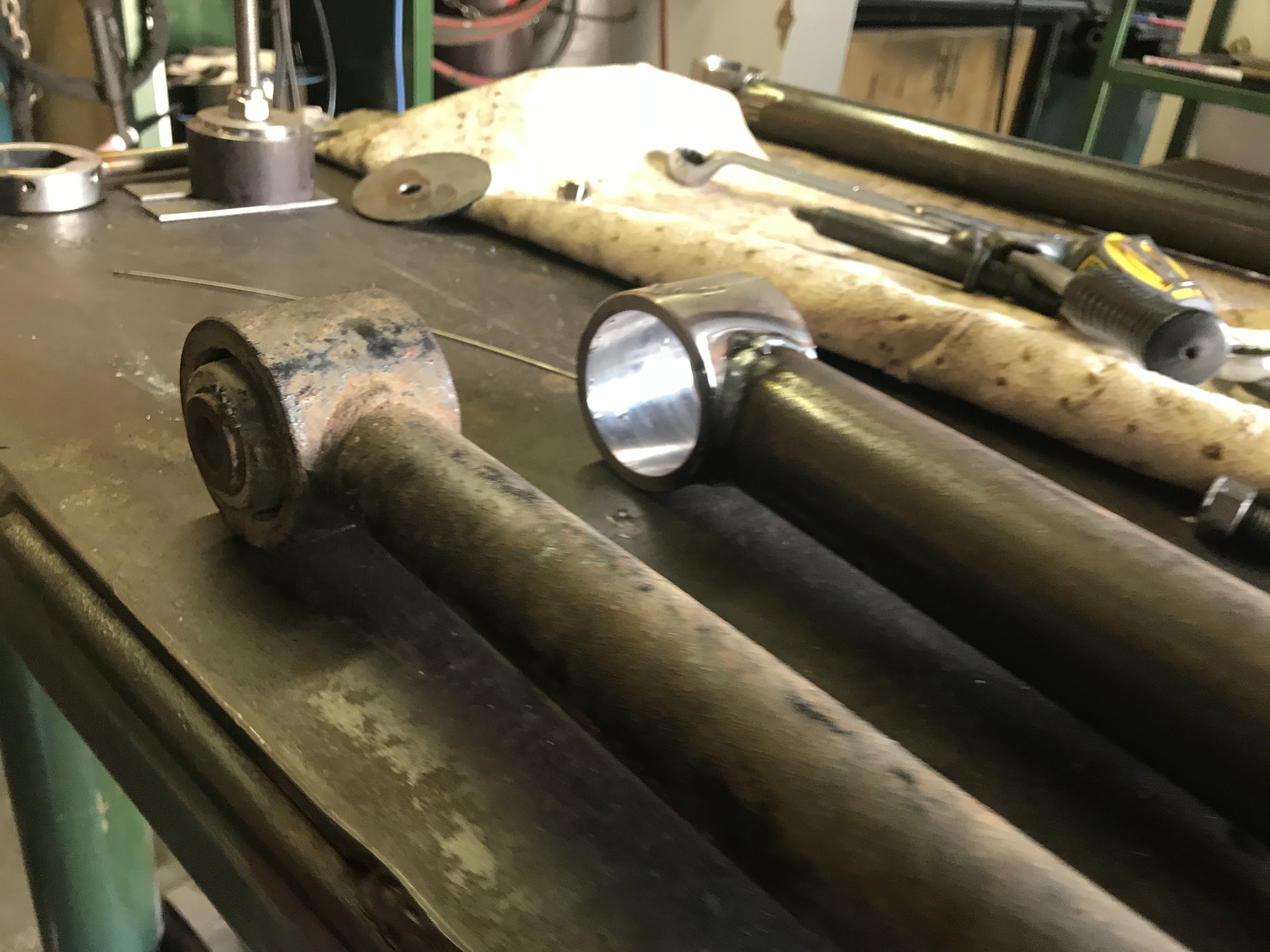

It is made out of 43 mm Outer Diameter Pipe with a 4mm wall thickness.

Matthew 6:33 Seek the Kingdom of God above ALL else, and live righteously, and he will give you everything you need.

My Build Thread: http://patrol4x4.co.za/viewtopic.php?f=43&t=7110

User avatar
hugejp
Patrolman 1000+
Patrolman 1000+
Posts: 1523
Joined: 21 Oct 2014 21:01
Full Name: JP Viviers
Nickname: Oupoot
Home Town: JHB
Current 4x4: PATROL COLLECTION
2004 4.8 GRX "Tinkerbell"
2003 4.2 tdi GRX "The Coal Roller"
Home Language: Half & Half
Has thanked: 106 times
Been thanked: 83 times

Re: The Bigger The Better Trailing arms

Post by hugejp » 04 Oct 2018 15:53

:bravo:

Are they the same as on the GU?
----------------------------------------------------------------------

You CAN with a NISSAN!

Jy KAN met 'n DATSUN!

User avatar
TijmenvdS
Senior Member
Senior Member
Posts: 242
Joined: 23 Nov 2016 06:25
Full Name: Tijmen van der Steenhoven
Nickname: Tijmen
Home Town: Pretoria
Current 4x4: 1997 Patrol TD42 GQ ST
Chevrolet 1974 K10 402 V8
Home Language: Afrikaans
Has thanked: 21 times
Been thanked: 38 times

Re: The Bigger The Better Trailing arms

Post by TijmenvdS » 04 Oct 2018 15:56

I believe so yes. I think it is even the same chassis.
Matthew 6:33 Seek the Kingdom of God above ALL else, and live righteously, and he will give you everything you need.

My Build Thread: http://patrol4x4.co.za/viewtopic.php?f=43&t=7110

User avatar
Tinus lotz
Moderator
Posts: 7035
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 554 times
Been thanked: 286 times

Re: The Bigger The Better Trailing arms

Post by Tinus lotz » 04 Oct 2018 16:41

Netjies makker

User avatar
Pieter B
Senior Member
Senior Member
Posts: 354
Joined: 29 Sep 2014 12:40
Full Name: Pieter Botha
Nickname: Pieter
Home Town: Alberton
Current 4x4: '06 Patrol 4.8 GRX
Home Language: Afrikaans
Has thanked: 3 times
Been thanked: 31 times

Re: The Bigger The Better Trailing arms

Post by Pieter B » 04 Oct 2018 20:05

Na my episode met die panhord rod lyk dit na 'n goeie idee. Is die prys met of sonder die bushes? Wat is die wand dikte van die oorspronklike arms?

User avatar
TijmenvdS
Senior Member
Senior Member
Posts: 242
Joined: 23 Nov 2016 06:25
Full Name: Tijmen van der Steenhoven
Nickname: Tijmen
Home Town: Pretoria
Current 4x4: 1997 Patrol TD42 GQ ST
Chevrolet 1974 K10 402 V8
Home Language: Afrikaans
Has thanked: 21 times
Been thanked: 38 times

Re: The Bigger The Better Trailing arms

Post by TijmenvdS » 04 Oct 2018 21:08

Die prys kom netso van die passer en draaier wat myne gemaak het. Ek het hom gevra of hy bereid sou wees om nog te maak as iemand op die forum ook wou hê, toe sê hy dat hy sommer n jig gemaak het. Ek is besig om al my suspention bushes te vervang so ongelukkig sluit dit nie in nie.

Oorsprik dink ek is maar n 30mm pyp met ek skat 1.5mm wall thickness.
As hy eers n duikie in het is die kort voor lank dan snap hy sommer.
Grahm sn het teen koos se klim gesnap
Myne het gebuig en later gesnap
Alex se shorty sn het gesnap by Hennops
Op 3 Provinsies het oom Corrie sn gebuig en gelukkig het hy dit huistoe gemaak.


As iemand sou belang stel sal ek gerus die man se besonderhede aan stuur, hy is in Silverton.
Matthew 6:33 Seek the Kingdom of God above ALL else, and live righteously, and he will give you everything you need.

My Build Thread: http://patrol4x4.co.za/viewtopic.php?f=43&t=7110

User avatar
XenoBlitz
Senior Member
Senior Member
Posts: 278
Joined: 13 Sep 2010 10:40
Full Name: Wilhelm van Rooyen
Nickname: Wilhelm
Home Town: Secunda
Current 4x4: 4.5 GRX 1999
SWAMBO - 2007 Jimny
Home Language: Afrikaans
Has thanked: 17 times
Been thanked: 27 times

Re: The Bigger The Better Trailing arms

Post by XenoBlitz » 05 Oct 2018 07:25

If these fit the 4.5 GRX then I am definitely in for set. (Complete with bushes)

I think the extra power will require an upgrade.
May the road be long.. and dirty.

User avatar
TijmenvdS
Senior Member
Senior Member
Posts: 242
Joined: 23 Nov 2016 06:25
Full Name: Tijmen van der Steenhoven
Nickname: Tijmen
Home Town: Pretoria
Current 4x4: 1997 Patrol TD42 GQ ST
Chevrolet 1974 K10 402 V8
Home Language: Afrikaans
Has thanked: 21 times
Been thanked: 38 times

Re: The Bigger The Better Trailing arms

Post by TijmenvdS » 08 Oct 2018 09:05

XenoBlitz ek sal vir jou n stel arms reel maar sal verkies as jy self met Marino praat oor bushes, hulle kom net in n stel vir die agterste upper en lower control arms en ek dink dis duurder as die arms :rolleyes:
Matthew 6:33 Seek the Kingdom of God above ALL else, and live righteously, and he will give you everything you need.

My Build Thread: http://patrol4x4.co.za/viewtopic.php?f=43&t=7110

User avatar
hugejp
Patrolman 1000+
Patrolman 1000+
Posts: 1523
Joined: 21 Oct 2014 21:01
Full Name: JP Viviers
Nickname: Oupoot
Home Town: JHB
Current 4x4: PATROL COLLECTION
2004 4.8 GRX "Tinkerbell"
2003 4.2 tdi GRX "The Coal Roller"
Home Language: Half & Half
Has thanked: 106 times
Been thanked: 83 times

Re: The Bigger The Better Trailing arms

Post by hugejp » 08 Oct 2018 09:37

Kan die ou ook 'n Panhard upgrade vir ons doen??
----------------------------------------------------------------------

You CAN with a NISSAN!

Jy KAN met 'n DATSUN!

User avatar
TijmenvdS
Senior Member
Senior Member
Posts: 242
Joined: 23 Nov 2016 06:25
Full Name: Tijmen van der Steenhoven
Nickname: Tijmen
Home Town: Pretoria
Current 4x4: 1997 Patrol TD42 GQ ST
Chevrolet 1974 K10 402 V8
Home Language: Afrikaans
Has thanked: 21 times
Been thanked: 38 times

Re: The Bigger The Better Trailing arms

Post by TijmenvdS » 08 Oct 2018 12:07

hy sal vir seker kan, wat sou die specs wees, ook so n duk pyp?
Matthew 6:33 Seek the Kingdom of God above ALL else, and live righteously, and he will give you everything you need.

My Build Thread: http://patrol4x4.co.za/viewtopic.php?f=43&t=7110
