Drawer System. Ideas.

Post by biggles » 02 Feb 2015 15:29

Has anyone seen a drawer system that makes use of a drawer thin enough to open with only the left side door open? Anyone seen one? I am thinking it will have to be high enough to clear the wheel well to get any with.

I have a bike rack on 90% of the time and only the small door will open. I can even get in and out the back with a bike on. Sooo, if I have a normal drawer system the back becomes useless until drop the bike rack. I want to have my recovery stuff and a compartment to put easy access stuff and what not. Also when shopping to toss the purchases. I found a 500ml milk that had escaped the shopping and landed up under the seat (thankfully it had not popped yet, but there was some interesting things going on after 2 weeks in the Windhoek sun... it strengthened my resolve to put in drawer.
With great Power comes Great Fuel Consumption
:layrubber:

User avatar
Peter Connan
Moderator
Posts: 5337
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 263 times
Been thanked: 344 times

Re: Drawer System. Ideas.

Post by Peter Connan » 02 Feb 2015 17:21

Haven't seen one like that, but it can't be too difficult to do.

My concern would be that something like that would be likely to be relatively inefficient in terms of space (but since I have to fit four people in the car, space is a bit of a bugbear for me). Have you considered mounting the bikerack on the spare wheel, so that it doesn't impede access to the whole of the rear?
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
Jorrie
Patrolman 1000+
Patrolman 1000+
Posts: 2404
Joined: 21 Jun 2011 18:55
Full Name: Jacobus Jordaan
Nickname: Jorrie
Home Town: Pretoria
Current 4x4: 1998 Nissan Patrol 4500 GRX, 2011 Zook
Home Language: English/Afrikaans
Location: Pretoria
Has thanked: 109 times
Been thanked: 88 times

Re: Drawer System. Ideas.

Post by Jorrie » 02 Feb 2015 21:44

I embarked on that route, but decided against it because the left drawer would end up too narrow for my liking.
Jorrie
4500 GRX
Jimny

User avatar
biggles
Senior Member
Senior Member
Posts: 448
Joined: 18 Nov 2013 05:17
Full Name: Steven
Nickname: Steve
Home Town: Durbanville
Current 4x4: GUII Patrol 4.8
Home Language: English
Has thanked: 14 times
Been thanked: 46 times

Re: Drawer System. Ideas.

Post by biggles » 03 Feb 2015 08:10

Jorrie wrote:I embarked on that route, but decided against it because the left drawer would end up too narrow for my liking.
Did you have it flat on the floor or raised over the wheel well?
With great Power comes Great Fuel Consumption
:layrubber:

User avatar
Carel
Senior Member
Senior Member
Posts: 218
Joined: 25 Jul 2011 08:41
Full Name: Carel Vos
Nickname: Carel
Home Town: Germiston
Current 4x4: 84 Safari
2001 Patrol 4.5 GRX
Home Language: Afrikaans
Been thanked: 8 times

Re: Drawer System. Ideas.

Post by Carel » 03 Feb 2015 08:23

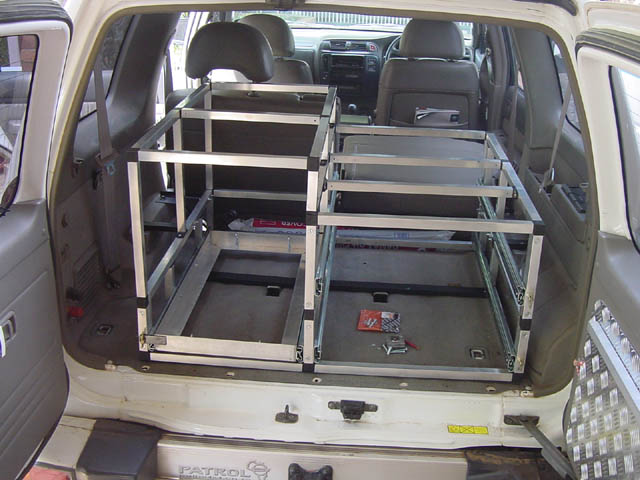

With the "connect-it" system you can make a frame of any size and then have a drawer made to fit.
"Life is what's happening while you're busy making other plans" Celine Dion

gupster
Senior Member
Senior Member
Posts: 170
Joined: 12 Jan 2014 07:25
Full Name: Barry Guppy
Nickname: Baz
Home Town: Hibberdene
Current 4x4: 2001 Nissan Patrol 3.0 GRX
2005 Nissan Patrol 3.0 GR
Home Language: English
Has thanked: 120 times
Been thanked: 26 times

Re: Drawer System. Ideas.

Post by gupster » 03 Feb 2015 09:59

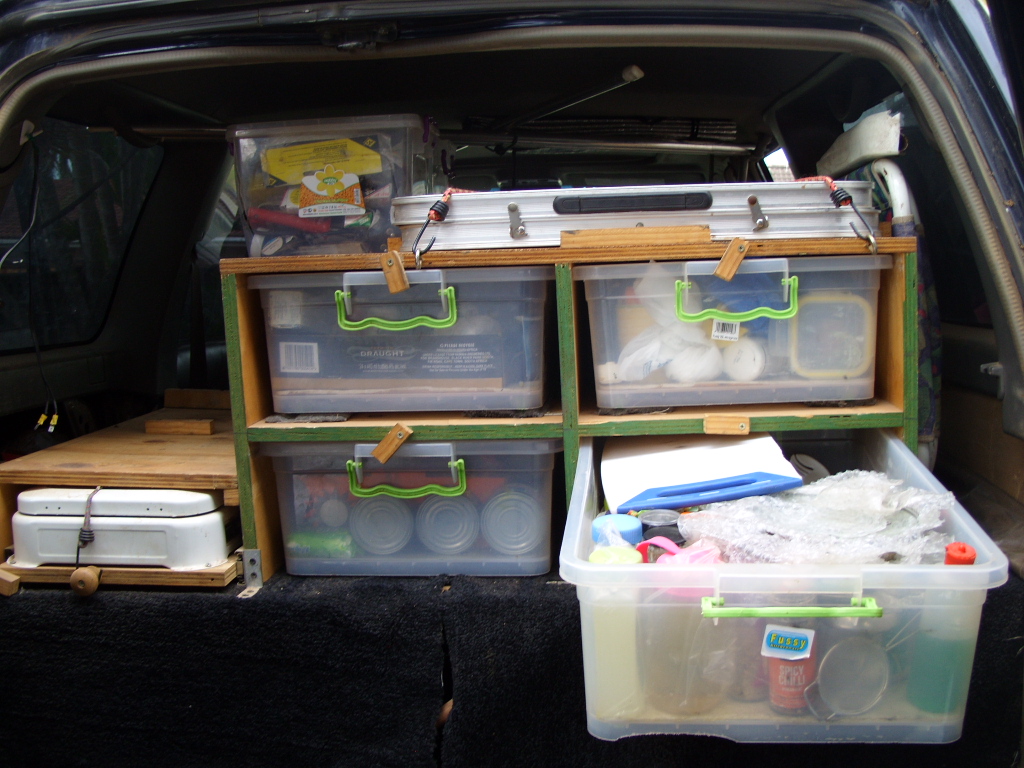

Hi Biggles. I built my own drawer system and am sure the draw would clear the small door if it was put in differently to mine. The draws are on wheels and there is carpeting inside to prevent the wheels wearing away on bad roads. I have had the system for around 3 years and traveled extensively. I bought the plastic draws from a plastic shop in Durban. They came with lids but I have never used the lids as everything stays put. I used a few beer cardboard carriers to act as baffles and keep everything in situ. The plastic draws can also be cut down width wise to make them even narrower. They also come in varying sizes. The rest is just a wooden housing and unbelievably dust proof, all sitting on a platform. When the draw is pulled out, the wooden top keeps it in place, unless of course you pull it very far out. Beneath the platform I have two 60 litre water containers and on the left of these, a ammo box of spares and a big tool box. As you can see, the stove pulls out with ease through the narrow door.

Hope this is of some help.

Regards.
Barry
Attachments
Have Troll, will travel.

User avatar
jonathan
Senior Member
Senior Member
Posts: 269
Joined: 20 Aug 2012 16:24
Full Name: Jonathan Venter
Nickname: jonathan
Home Town: Jacobsbaai
Current 4x4: 2005 4.8 GRX
Home Language: Afrikaans
Has thanked: 3 times
Been thanked: 22 times

Re: Drawer System. Ideas.

Post by jonathan » 03 Feb 2015 11:59

I must say I very much like this model.....of drawer system :biggrin:
Attachments

User avatar
Chris Skinner
Patrolman
Patrolman
Posts: 947
Joined: 26 Nov 2009 12:58
Full Name: Chris Skinner
Nickname: Chris
Home Town: Centurion
Current 4x4: Nissan Patrol 4,8 GRX 2005
Home Language: English
Has thanked: 10 times
Been thanked: 56 times

Re: Drawer System. Ideas.

Post by Chris Skinner » 03 Feb 2015 13:28

I am too scared to comment in case you related... :confused:

IanT
Patrolman 1000+
Patrolman 1000+
Posts: 1254
Joined: 17 May 2013 10:43
Full Name: Ian Temperley
Nickname: IanT (aka) "The Joker"
Home Town: JHB
Current 4x4: 1995 GQ 4.2 Petrol (Turbo Charged) (Hell Boy)
2003 4.2 TDI (Ubhejane)
Home Language: English
Been thanked: 55 times

Re: Drawer System. Ideas.

Post by IanT » 03 Feb 2015 13:45

Hay that's my skelem!!! who has been taking photos of my two babies???? :lol: :redface: :redface: :rolling: :surprised:

IanT
Patrolman 1000+
Patrolman 1000+
Posts: 1254
Joined: 17 May 2013 10:43
Full Name: Ian Temperley
Nickname: IanT (aka) "The Joker"
Home Town: JHB
Current 4x4: 1995 GQ 4.2 Petrol (Turbo Charged) (Hell Boy)
2003 4.2 TDI (Ubhejane)
Home Language: English
Been thanked: 55 times

Re: Drawer System. Ideas.

Post by IanT » 03 Feb 2015 13:47

I deflate her fold her up and store her in that empty draw when not in use :surprised: :surprised: :surprised:
