Snorkel for AmaGlugGlug

Post by ama-glug-glug » 04 Oct 2012 11:15

:woo: I eventually decided to get some better airflow into the carb, but because I'm one of the more budget concious people( :biggrin: or make that poor b@$&@rd), I got one of the cheapies from 4x4direct.

Firstly, I have to commend the service I received. In the midst of a truck driver's strike, I ordered on Monday morning and got delivery on Tuesday morning :thumbup:

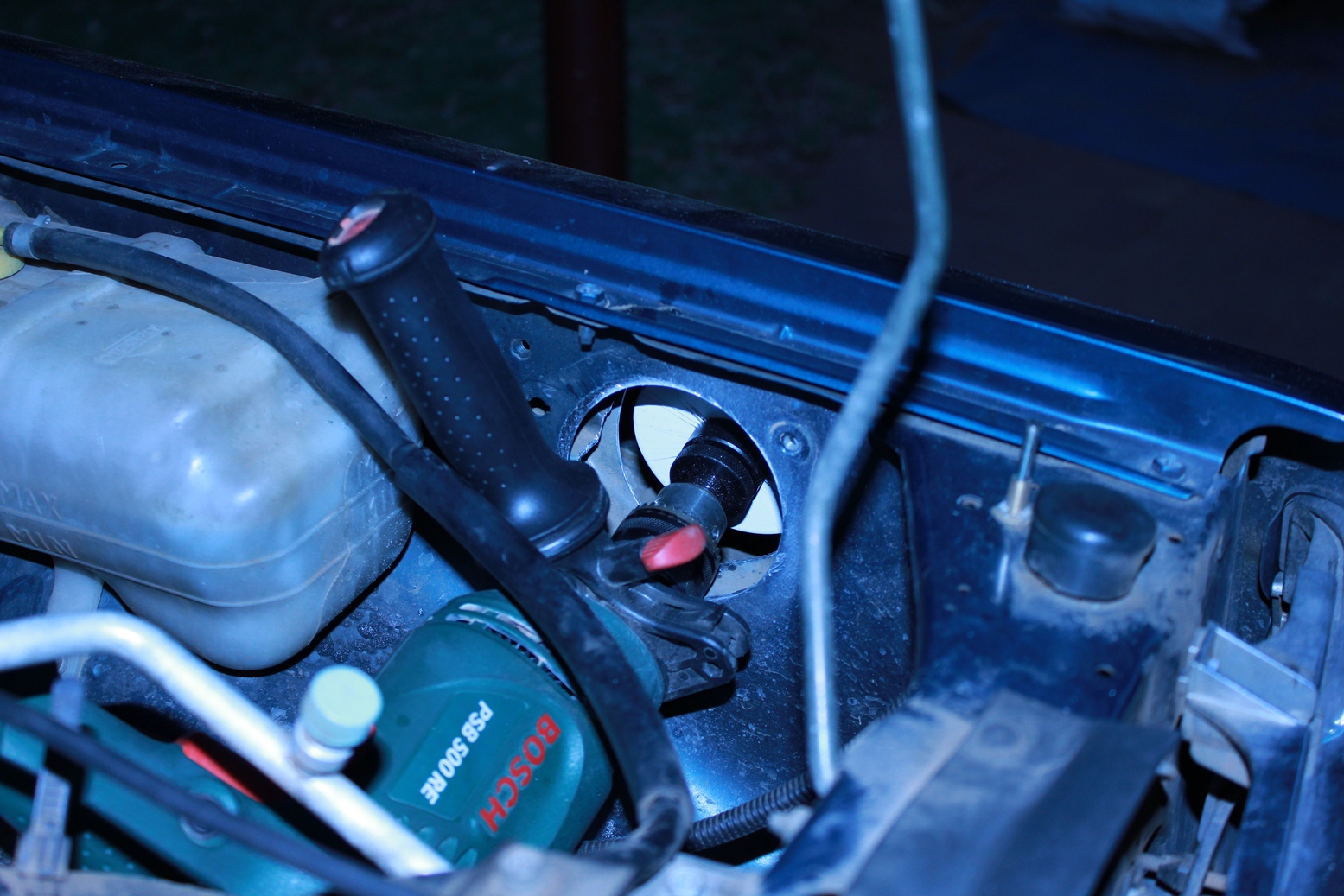

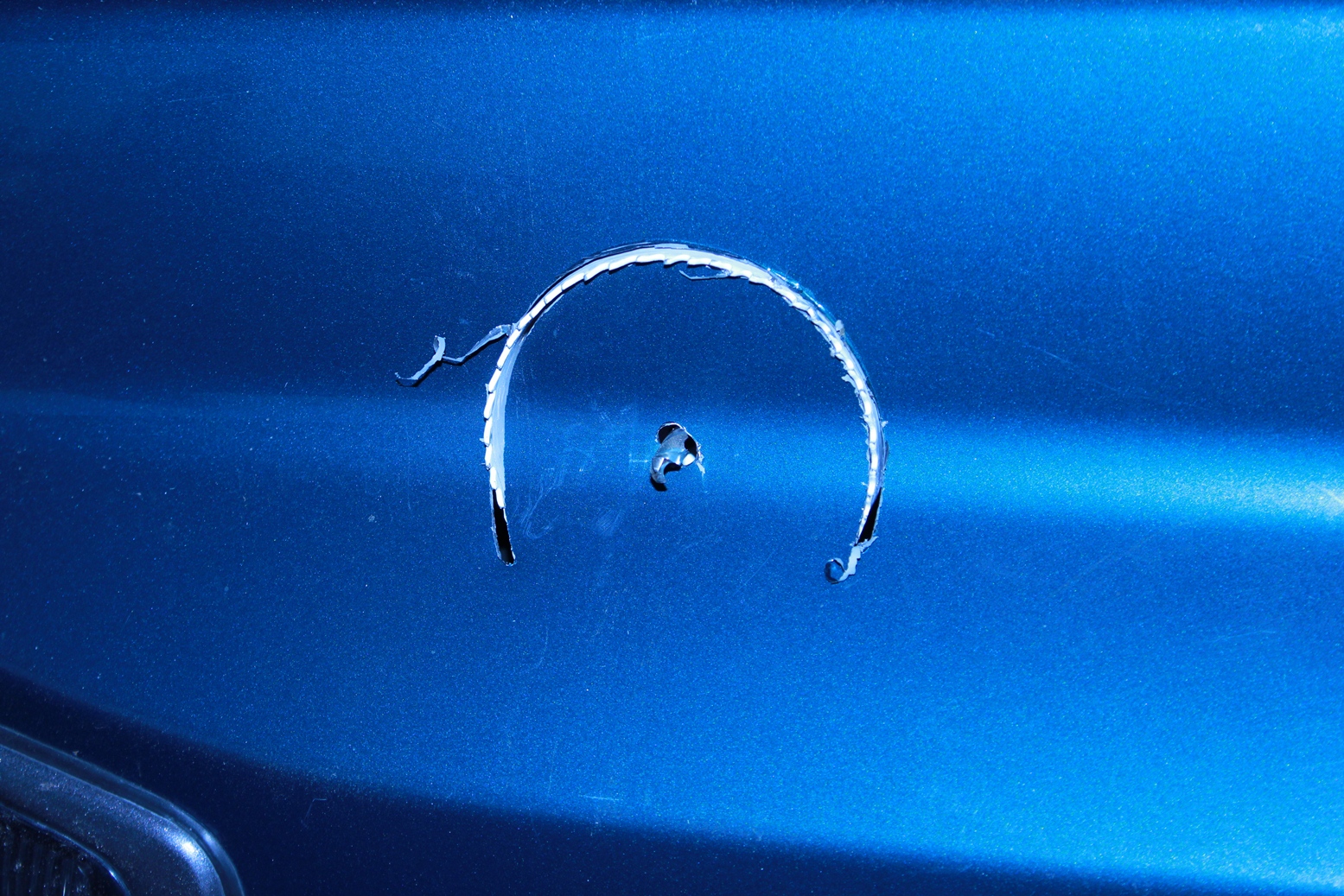

Then, after having a good look at this lot, realised that the template doesnt really mean much, so yesterday went out and got the hole saw and started working last night.

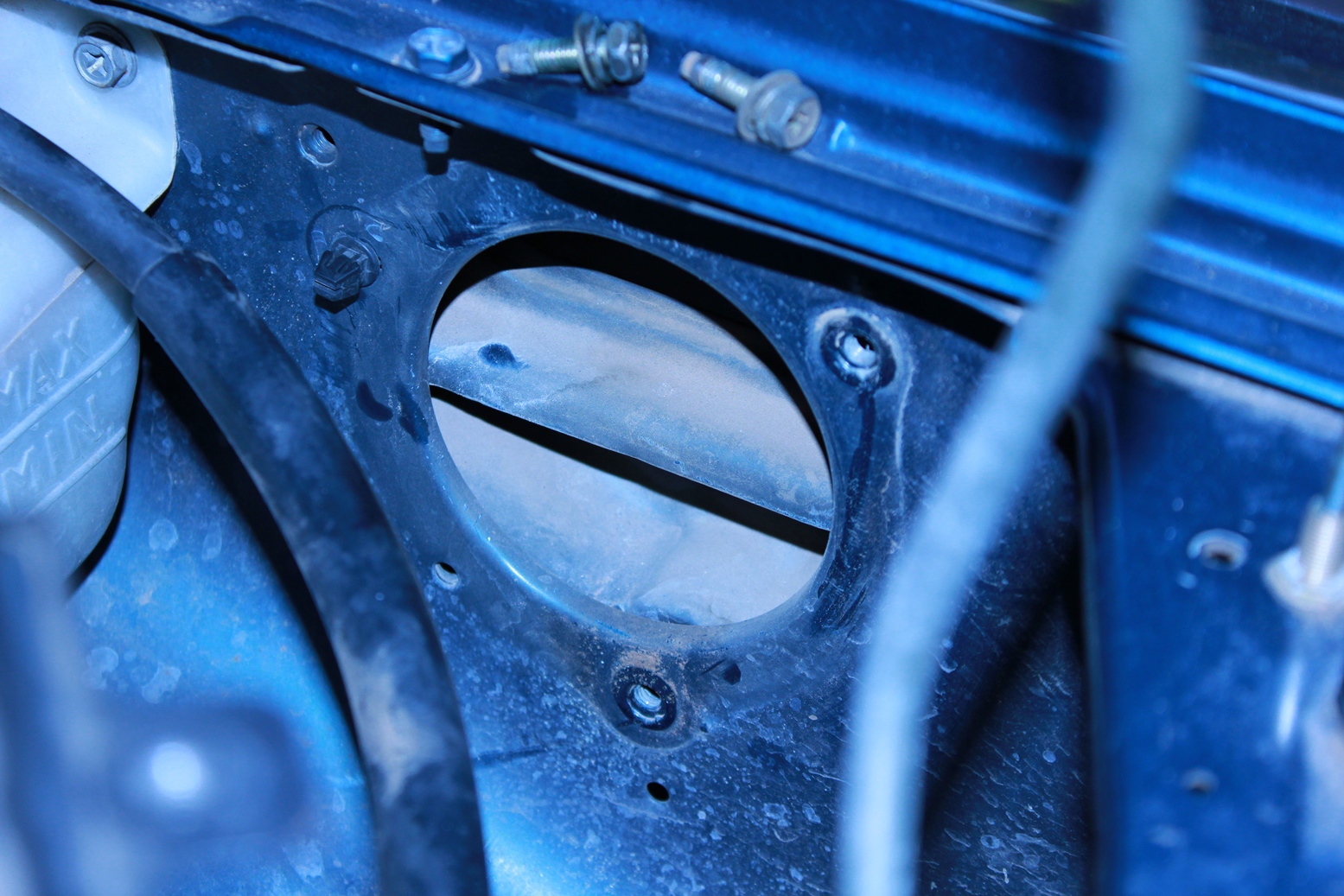

First I removed the airbox and all the pieces right to the flange in the left wheelwell.

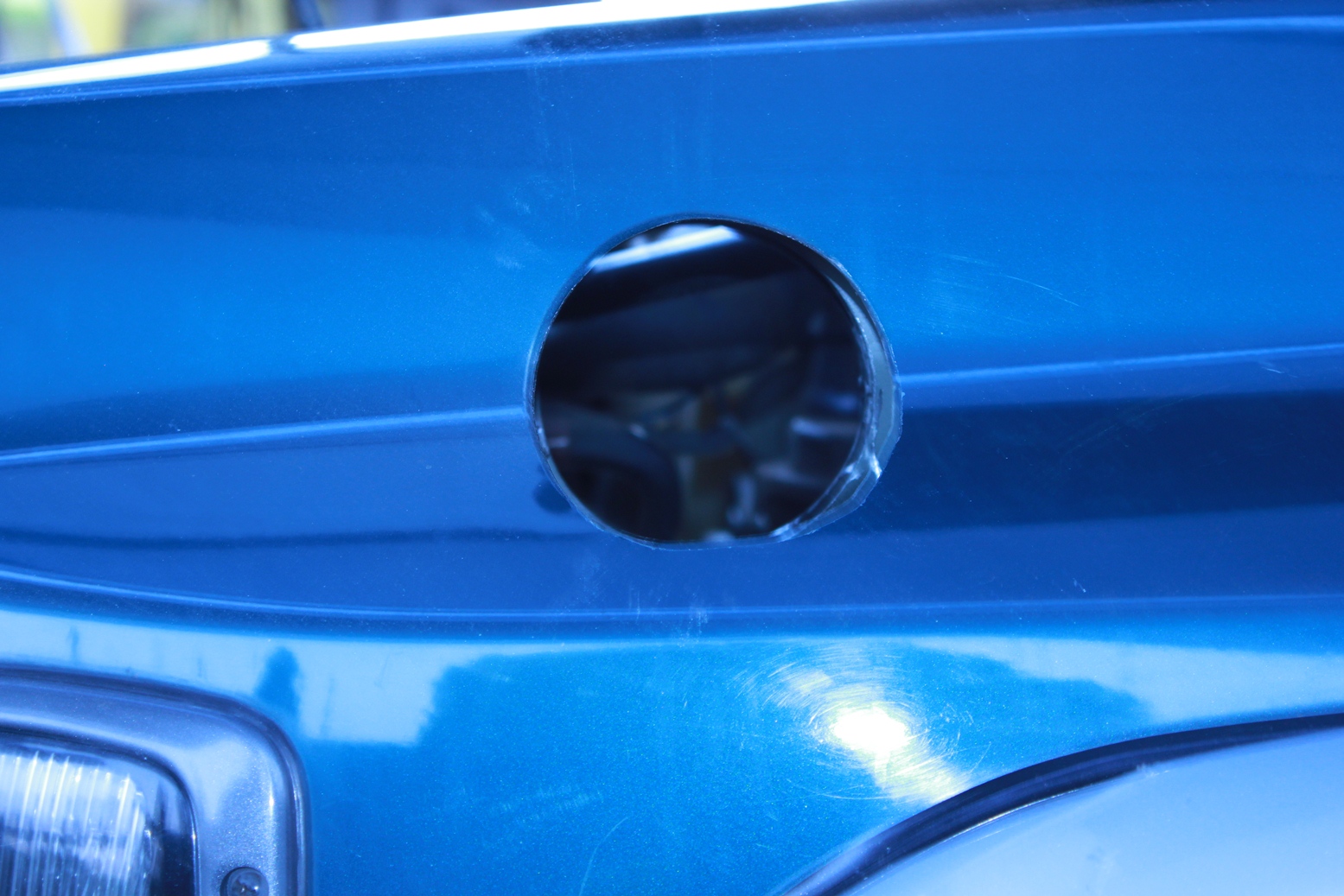

Unfortunately light ran out and I finished with the big hole in the fender. I will continue tonight.
I must admit, it is quite daunting making a hole in your own car. Definitely not something I would do to a new car.

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5857
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 233 times
Been thanked: 244 times

Re: Snorkel for AmaGlugGlug

Post by ricster » 04 Oct 2012 12:19

ha ha ha.... awesome mate !!!.... keep the pics coming !! :thumbup: :thumbup:
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
offroadbiker
Moderator
Posts: 2702
Joined: 25 Jul 2012 08:36
Full Name: Dirk de Clerk
Nickname: ORB
Home Town: Krugersdorp
Current 4x4: Patrol GQ 4.2 ST
Home Language: Afrikaans/English
Location: Krugersdorp
Has thanked: 104 times
Been thanked: 98 times

Re: Snorkel for AmaGlugGlug

Post by offroadbiker » 04 Oct 2012 12:36

Eish, I'd crap myself :redface:
Dirk
1996 Nissan Patrol 4.2 ST

User avatar
Aries66
Senior Member
Senior Member
Posts: 311
Joined: 08 Apr 2009 12:19
Full Name: Louis Naude
Nickname: Aries66
Home Town: Pretoria, Sinoville
Current 4x4: 2000 Patrol 4.2 TD
Home Language: Afrikaans
Location: Pretoria, Sinoville
Been thanked: 2 times

Re: Snorkel for AmaGlugGlug

Post by Aries66 » 04 Oct 2012 17:55

Sjoe lyk maar SCARRY, maar soms moet mens om by n beter eind resultate uit te kom.
Laat daai foto's kom dat ons ander ook kan leer. :salute:

User avatar
Jules
Patrolman 1000+
Patrolman 1000+
Posts: 1840
Joined: 08 Apr 2009 09:13
Full Name: Julius
Nickname: Jules
Home Town: Rietjiesvlei, Zoeloeland
Current 4x4: GQ Patrol
Home Language: AFR
Has thanked: 65 times
Been thanked: 39 times

Re: Snorkel for AmaGlugGlug

Post by Jules » 04 Oct 2012 18:28

Yip ek oorweeg ook sterk aan n snorkel vir Nomakanjani, die nuwe 4x4 ouens AXE 4X4 adverteer fitted for R2500, en hul gebruik dieselde snorkel wat IronMan verkoop

Shalom
Walk by FAITH not by sight
Patrol 1995 SGL
aka "Nomakanjani"
ProComp Extreme A/T 31x10.5R15
ARB Bullbar
OME, Frontrunner Roofrack
60L Snomaster Freezer/Fridge

User avatar
Traveler
Senior Member
Senior Member
Posts: 285
Joined: 01 Jul 2012 20:41
Full Name: Heinrich Stoltz
Nickname: Traveler
Home Town: Springs
Current 4x4: Patrol 3.0 GL,
Home Language: Afrikaans
Location: Gauteng
Contact:

Re: Snorkel for AmaGlugGlug

Post by Traveler » 04 Oct 2012 20:20

Netjies, laat die res van die foto's loop.

Mark Schubert in Roodepoort vertel my netnou hy het vandag 14 snorkels verkoop. :surprised:

Ek wil Saterdag met die EGT toets wat is die verskil in temperatuur met die snorkel gekoop, en met die snorkel ontkoppel op Repulse.
With your words you set into motion the direction your life will go.

User avatar
ama-glug-glug
Senior Member
Senior Member
Posts: 156
Joined: 08 Jun 2011 19:38
Full Name: Deon Wilmans
Nickname: Deon
Home Town: Alberton
Current 4x4: Patrol GQ 1996 (1st 4x4) in the market
Nissan Navara D23
Home Language: English/Afrikaans
Location: Alberton
Been thanked: 6 times

Re: Snorkel for AmaGlugGlug

Post by ama-glug-glug » 05 Oct 2012 07:59

:blonde: DONE IT!!
Toe nie heeltemal so moeilik nie. Net die tyd wat min raak na werk, en dan moet 'n man maar voortploeter in die donker.
I discarded the template after deciding it would be better to lock the studs into the snorkel and use that to mark where to drill holes. Used some paint on the ends of the studs to mark. Then masked over the paint marks and then used a centre punch to mark before drilling pilot holes with a 4mm bit.

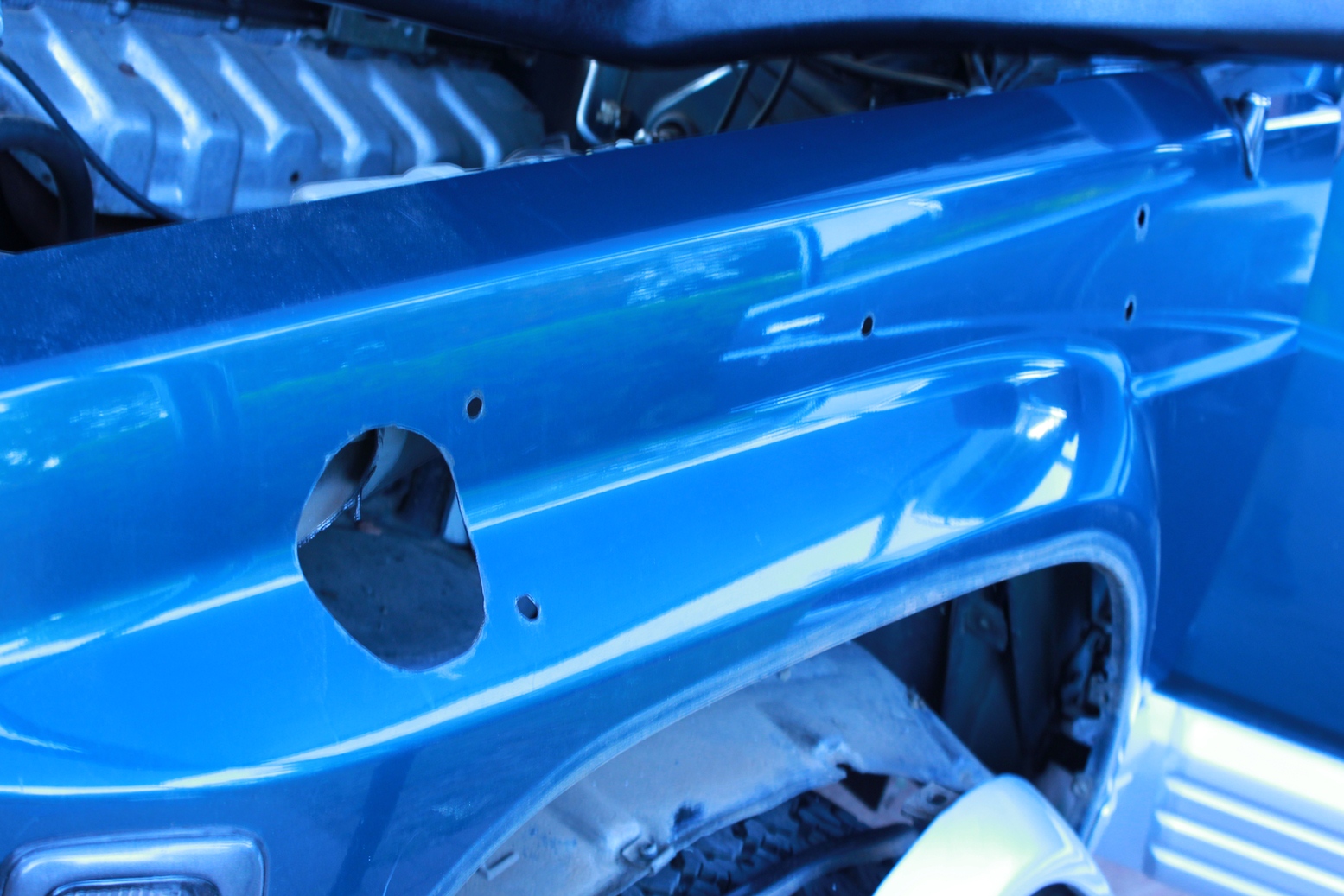

This is what it looked like after drilling.

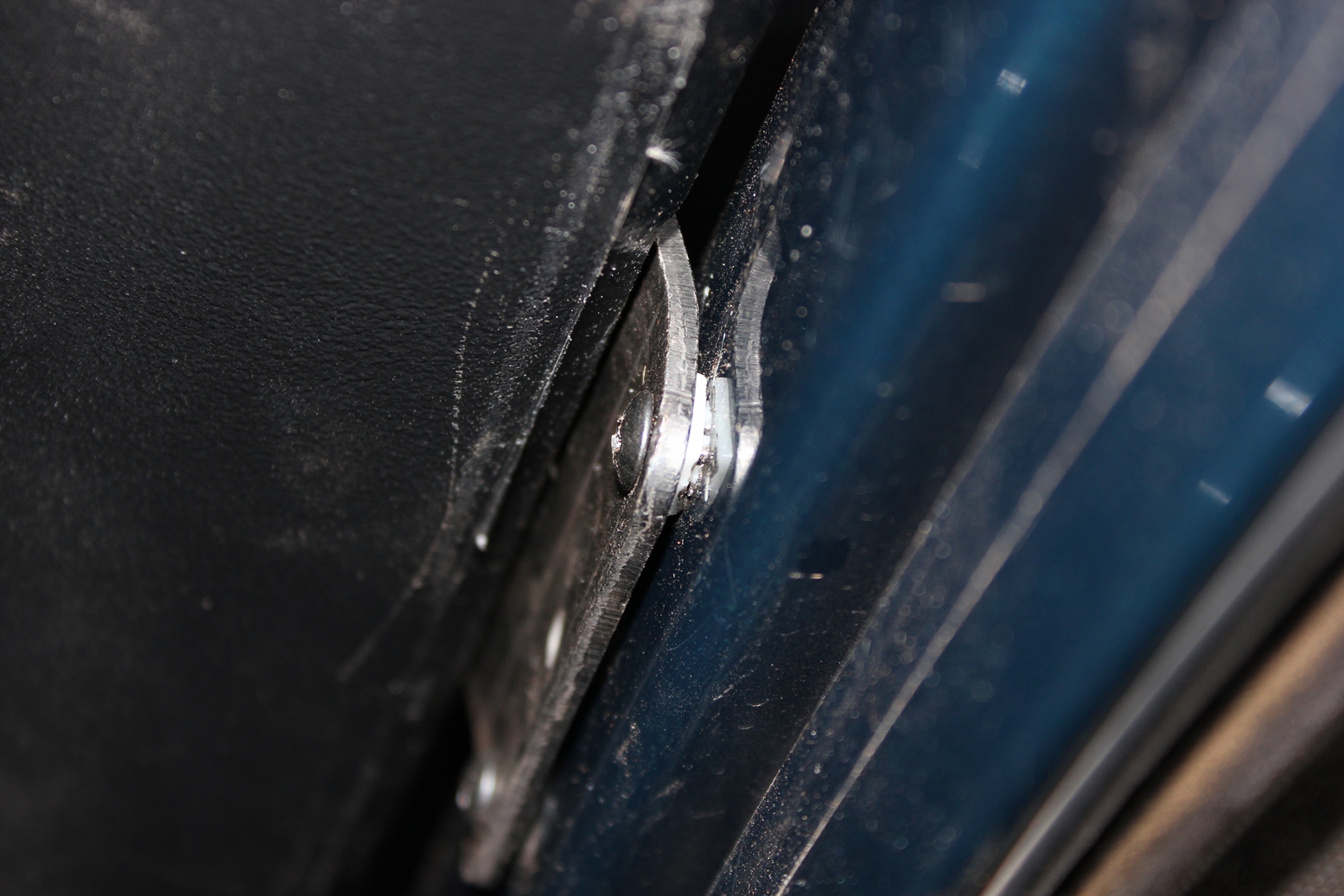

I tried the snorkel, but 2 of the holes had to be moved by 1.5mm. Ijust drilledwith a bitof sideward pressureand made the holesa bit bigger and :woo: , it worked. Then I attached the bracket for the pillar attachment tothe snorkel, marked and drilled 7.5mm holes, shaped it with a dremel for the plastic studs and started assembling the lot.
Oh yes, I also painted all the bare metal where I cutand drilled with hamerite metal paint to protect against rust.

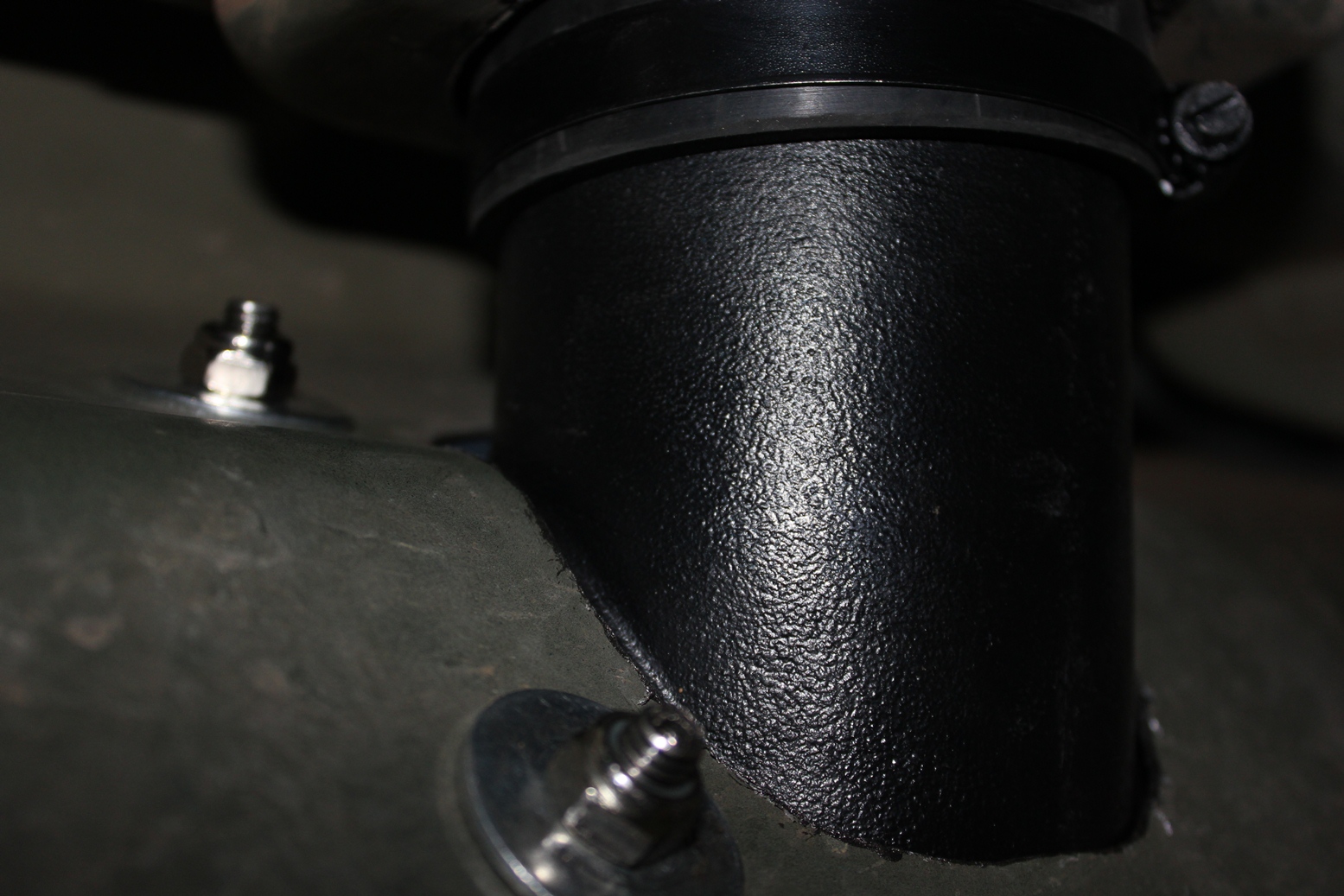

Connection inside the wheelwell

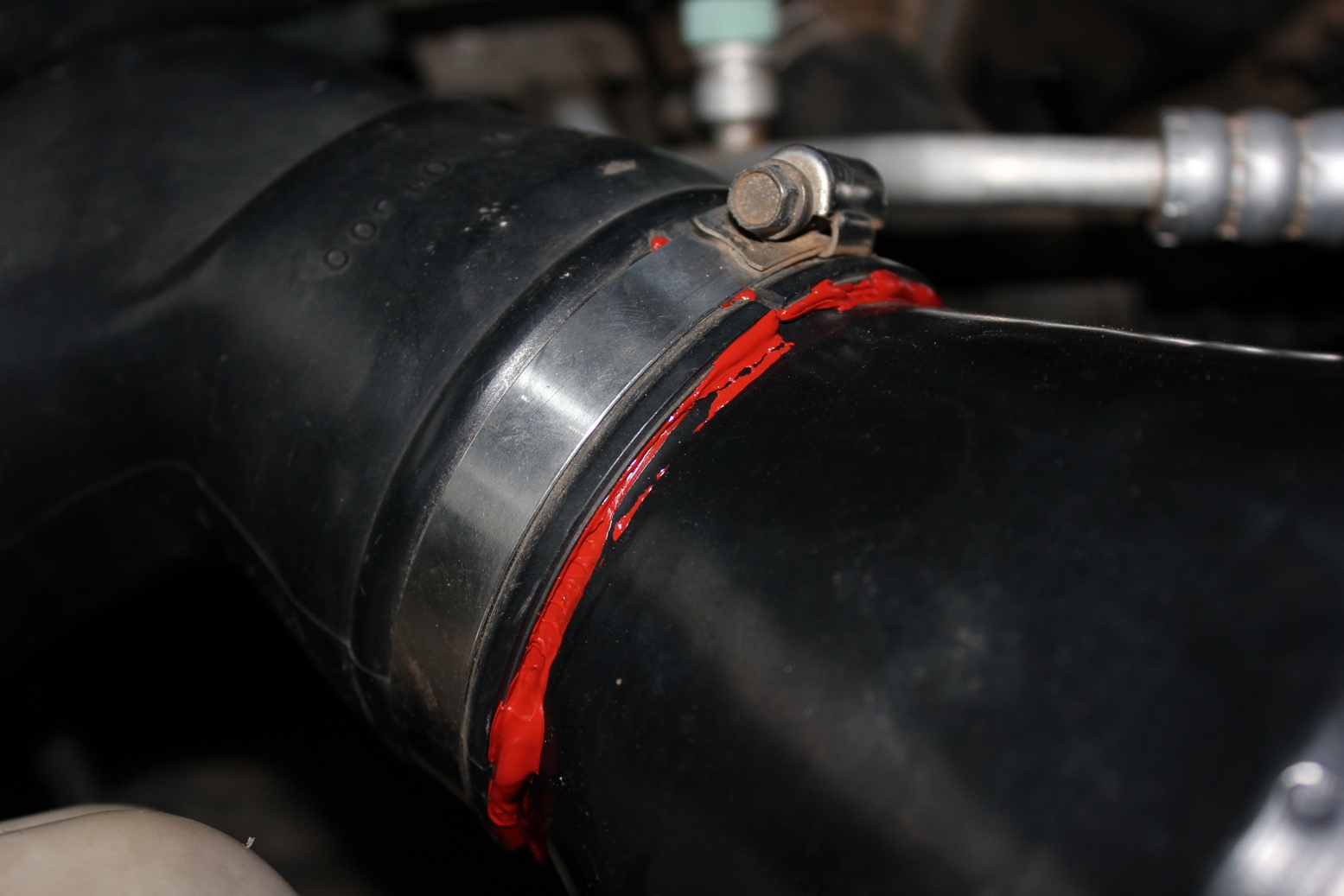

I also sealed all the pieces inside the engine bay with gasket sealer.

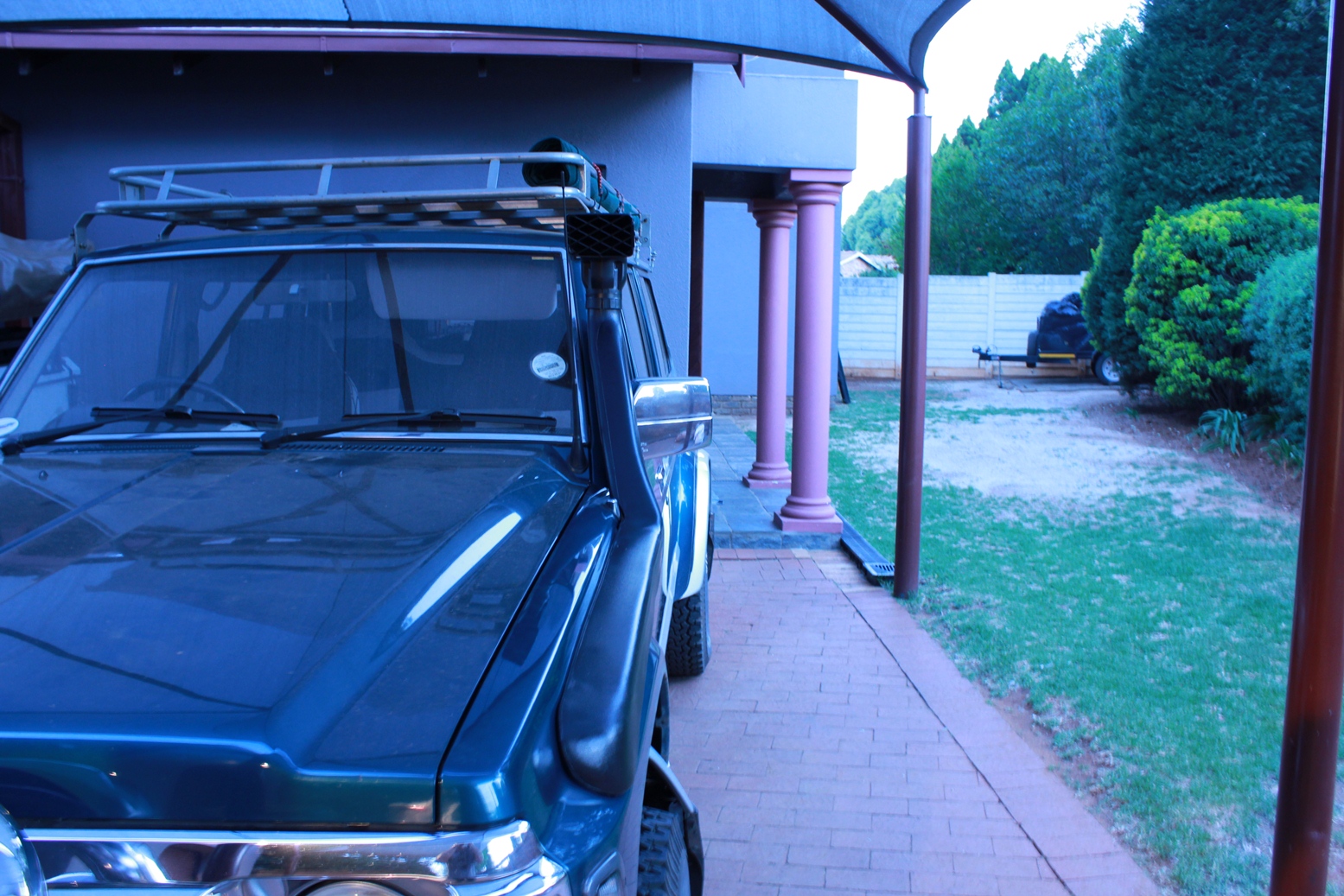

FINISHED! :lol: :biggrin: QQQ
All that remains is to fit the airbox and refit the wheel arch and dust cover. Another 15 mins or so.

Jules, R2500 is 'n goeie prys as iemand anders dit vir jou kan doen.
Traveler wrote:Netjies, laat die res van die foto's loop.

Mark Schubert in Roodepoort vertel my netnou hy het vandag 14 snorkels verkoop. :surprised:

Ek wil Saterdag met die EGT toets wat is die verskil in temperatuur met die snorkel gekoop, en met die snorkel ontkoppel op Repulse.
Dit sal interessant wees om die verskil te sien.

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 5857
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 233 times
Been thanked: 244 times

Re: Snorkel for AmaGlugGlug

Post by ricster » 05 Oct 2012 08:20

Very Very nice bud !!

Neat clean work done !!!
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
ama-glug-glug
Senior Member
Senior Member
Posts: 156
Joined: 08 Jun 2011 19:38
Full Name: Deon Wilmans
Nickname: Deon
Home Town: Alberton
Current 4x4: Patrol GQ 1996 (1st 4x4) in the market
Nissan Navara D23
Home Language: English/Afrikaans
Location: Alberton
Been thanked: 6 times

Re: Snorkel for AmaGlugGlug

Post by ama-glug-glug » 05 Oct 2012 08:30

Thanks mate,

It turned out not to be too difficult after all.

User avatar
Peter Connan
Moderator
Posts: 5334
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 263 times
Been thanked: 344 times

Re: Snorkel for AmaGlugGlug

Post by Peter Connan » 05 Oct 2012 08:33

Very neat Deon!
Mag ons ons kenniskry met lekkerkry aanhoukry.
