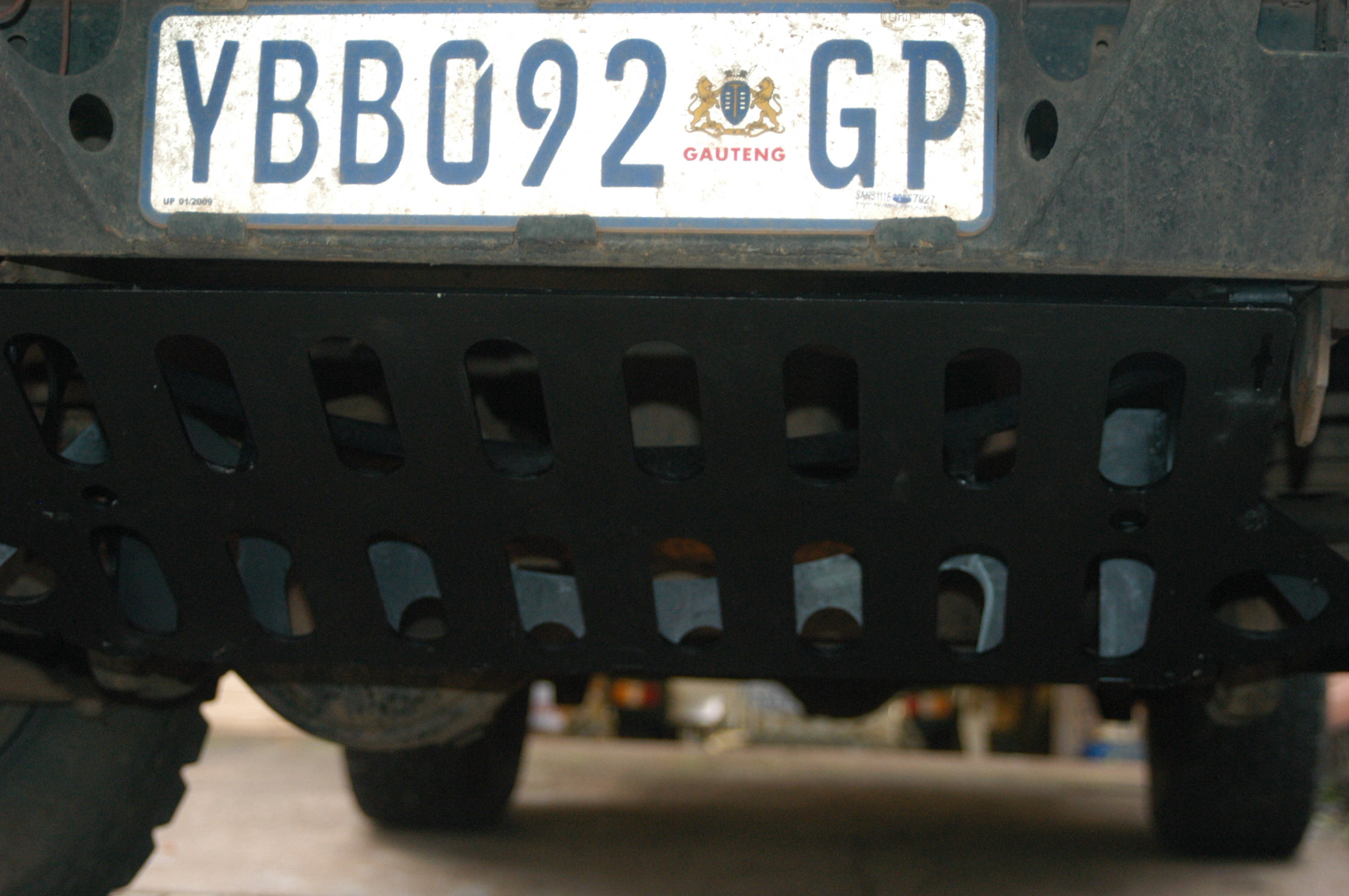

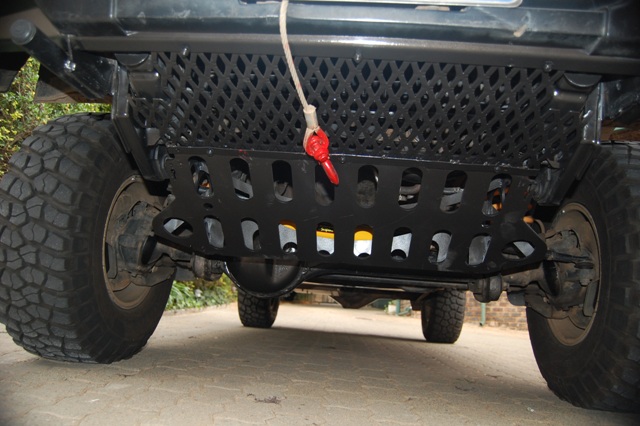

I realised soon that there was a big gap between the bashplate and the front ARB bumper, so I made a plan. I got some mesh from Thinus and made a cover to cover the gap. (See pic attached) It will now protect my radiator from branches ext.
I painted the bashplate with hammeright paint, hope it will last.
Thanks again for a great job. I will fit the recovery points once it is finish.
I am sure the bash plates reached cape town yesterday??????
what is wrong with you people not fitted yet???
o yes everything happens slower down there!!!!
Kop staan so tinus - 'K gan Boesman en Agarob adverteer - die een wat eerste fgaan, gaan, dan hou ek die ander een [ek nou moeg, hirri komende Botswana Uitreik en die Richtersveldt ene in September .. dan is ek klaar]
EN - "it will add value to Agarob"
Don't bring God down to your level of faith ... bring your faith up to His level!
Fitting instuctions for Y60 with standard bumper:
1) Remove steel cover under radiator.
2) Hook bash plate into front of chassis legs.
3) Using bolts from removed in step1, bolt bash plate to chassis.
4) Tighten Bolts
Fitting instructions for Y61 with engines other than 4.8:
1) Remove plastick cover/wind deflector in front of steering arms. Keep the bolts.
2) There should be four holes in the bottom of each chassis leg in front of the steering arms. Moving forward from the axle there should be two holes tapped M8 (used to secure the cover mentioned in step 1), and two larger holes used in the newer cars to attach the recovery hook. If the recovery hook is present, remove it and keep both the hook and the bolts. Source high-tensile (Grade 8.8 minimum) bolts for all 8 these holes.
3) Bolt on bash plate. If you have the two-bolt recovery hook, fit it as well. The bash plate sandwhiches between the chassis and the recovery hook.
